Micro Power operational Amplifier, Replace TLV4170
SGM8274
SGM8274.pdf
SGM8274.pdfFEATURES
? Low Power Consumption: 150μA/Amplifier
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? Low Offset Voltage: 3mV (MAX)
? High Slew Rate: 7V/μs
? Small Packaging:
SGM8274 Available in Green TSSOP-14 and SOIC-14

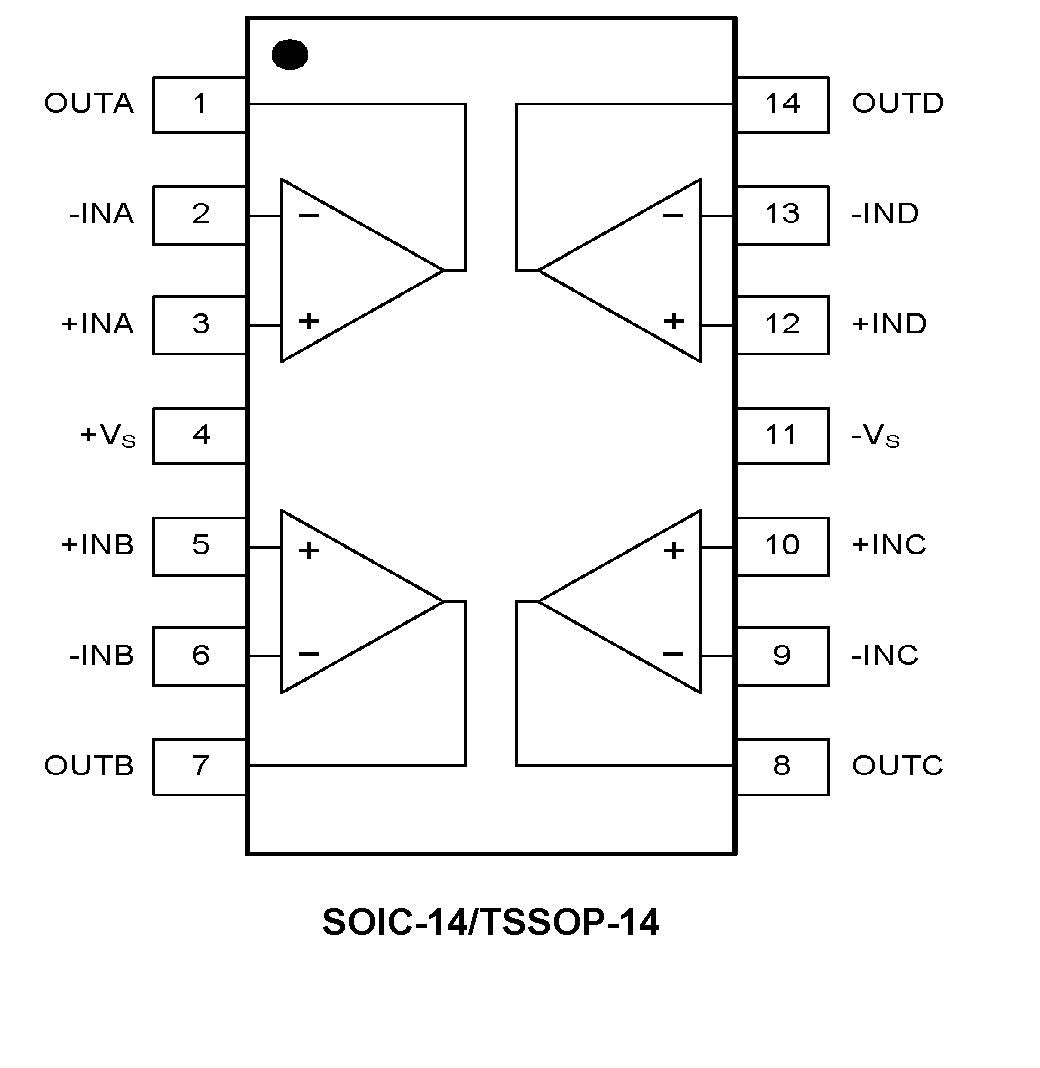

PIN CONFIGUTION
優勢替代
FEATURES
? Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
? Low Noise: 22 nV/√Hz
? EMI-Hardened with RFI-Filtered Inputs
? Input Range Includes the Negative Supply
? Unity-Gain Stable: 200-pF Capacitive Load
? Rail-to-Rail Output
? Gain Bandwidth: 1.2 MHz
? Low Quiescent Current: 125 μA per Amplifier
? High Common-Mode Rejection: 110 dB
? Low Bias Current: 10 pA (typical)

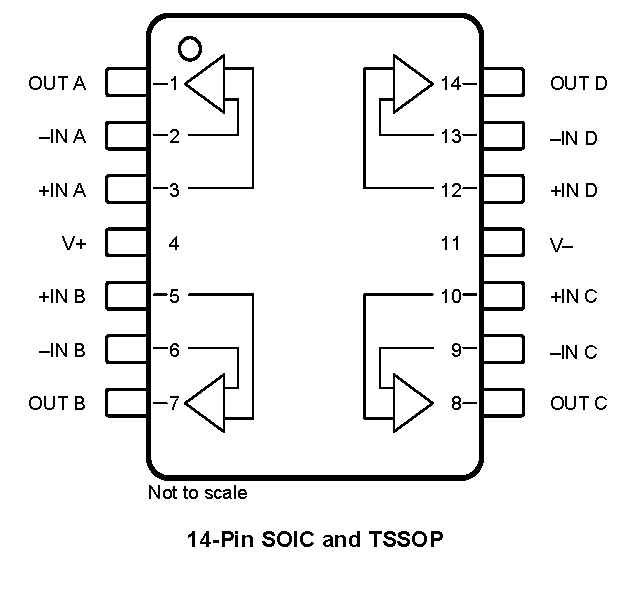

PIN CONFIGUTION
