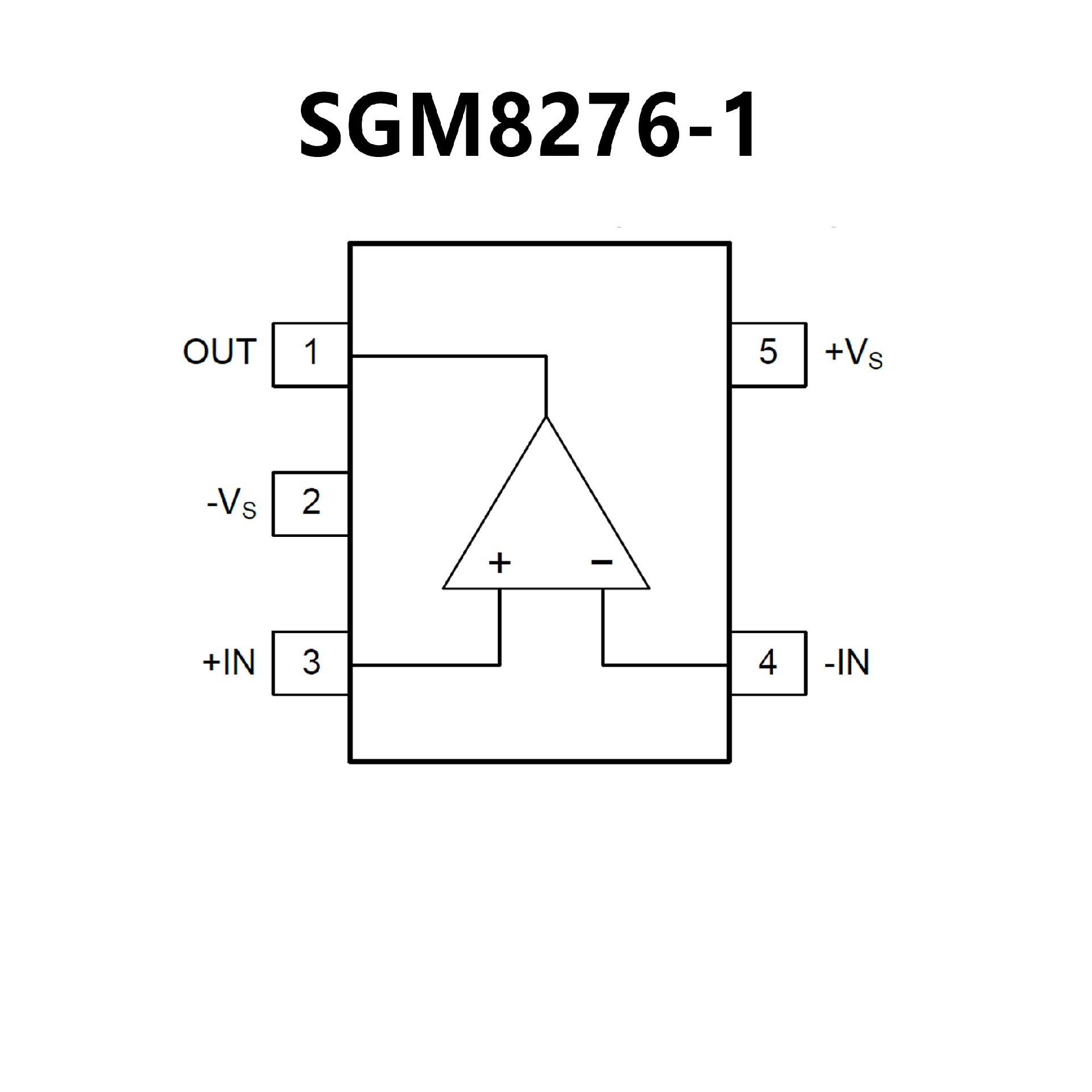

SGM8276-1.pdf? Wide Input Common Mode and Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

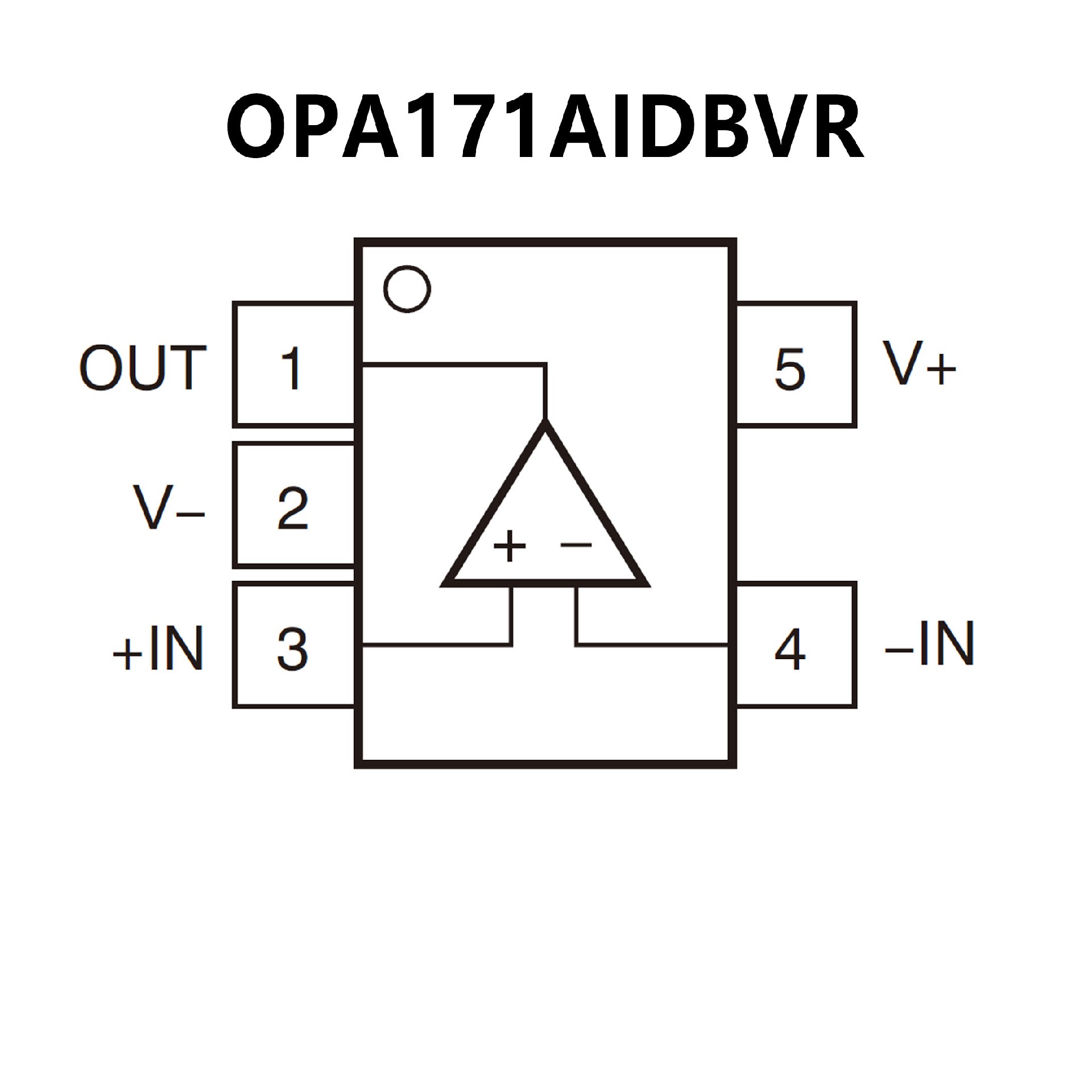

? 電源范圍:+2.7V至+36V，土1.35V至±18V
? 低噪聲:14 nV/Hz
? 低偏移漂移:0.3uVI°C(典型值)
? 已過濾的射頻干擾(RFI)輸入
? 輸入范圍包括負電源
? 輸入范圍運行至正電源軌至軌輸出
? 增益帶寬:3MHz
? 低靜態電流:每個放大器475uA高共模抑制:120dB（典型值)
? 低輸入偏壓電流:8pA
? 行業標準封裝:
-8引腳小外形尺寸集成電路(SOIC)封裝
- 8引腳微型小外形尺寸(MSOP)封裝
-14引腳薄型小外形尺寸(TSSOP)
? 封裝微型封裝:
-sOT553封裝內為單通道
- vssOP-8封裝內為雙通道
