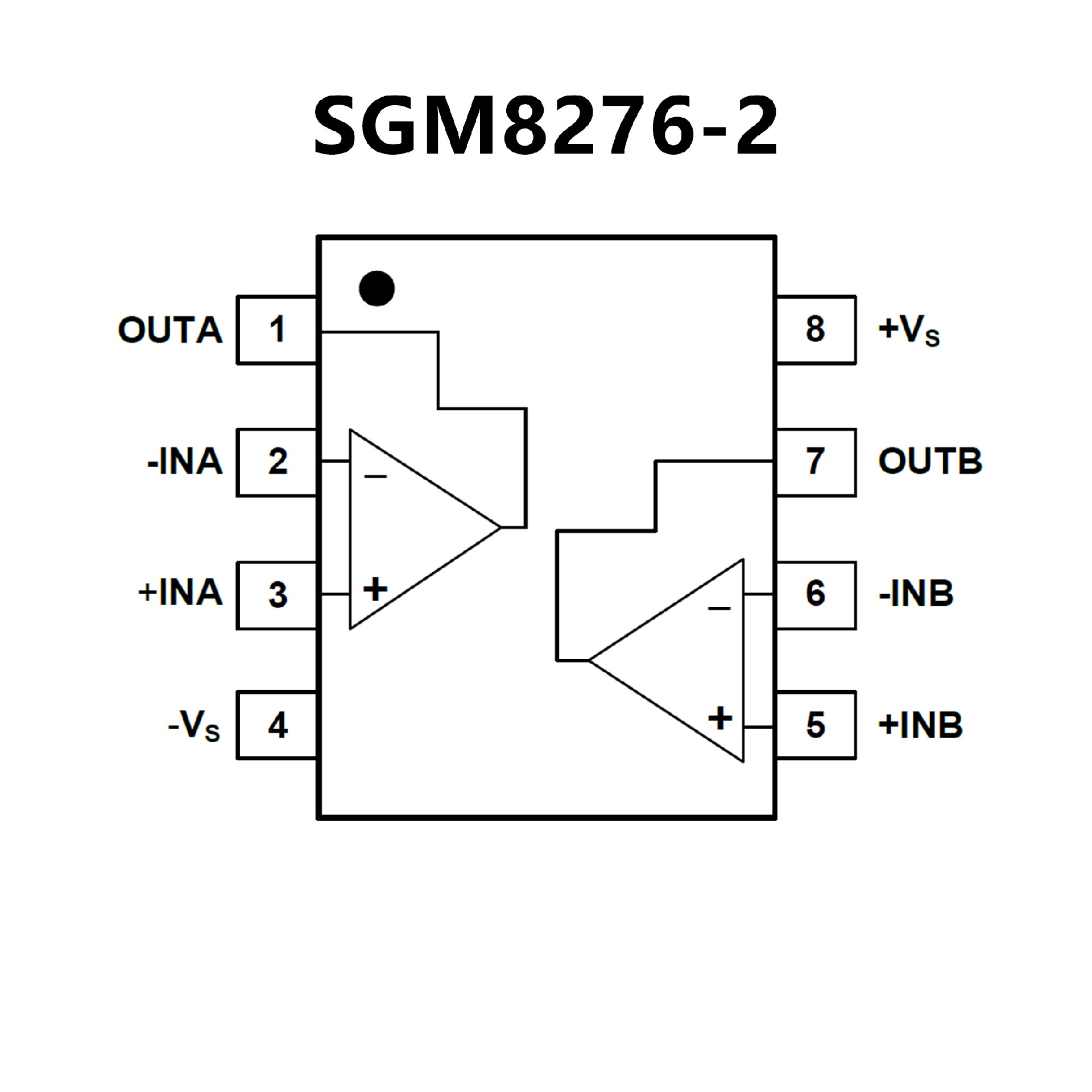

SGM8276-2XS8G.pdf? Wide Input Common Mode and
Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/ Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Packagea

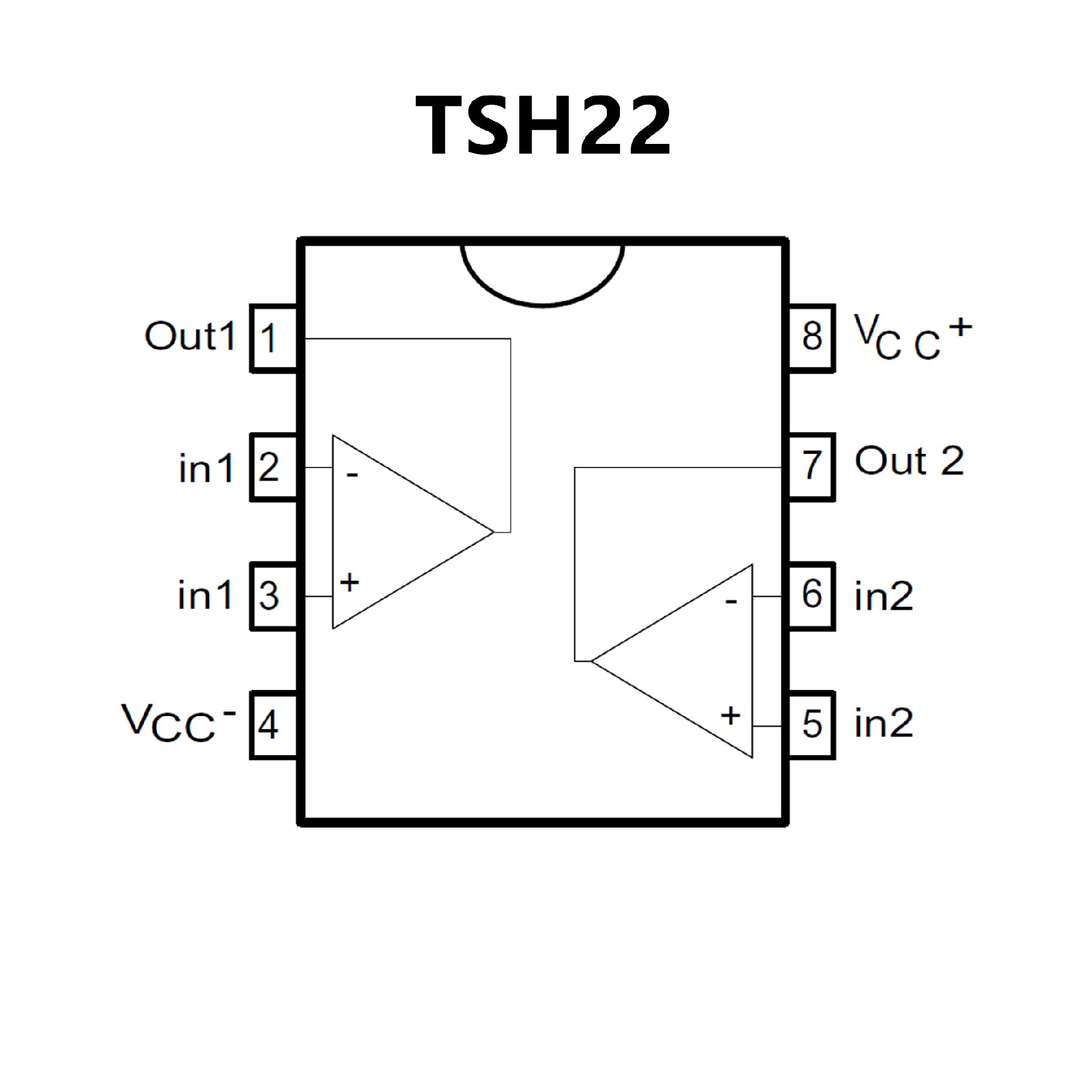

? HIGH GAIN BANDWIDTH PRODUCT :
25MHz
? HIGH SLEW RATE : 15V/ms
? SINGLE OR DUAL SUPPLY OPERATION :
3V TO 30V (±1.5V to ±15V)
? LOW VOLTAGE NOISE : 14nV/?Hz
? NO PHASE INVERSION
? ESD TOLERANCE : 2kV
? LATCH-UP IMMUNITY
? SPICE MACROMODEL INCLUDED IN THIS
SPECIFICATION
