Low Noise,High Precision,High Voltage,Rail-to-Rail I/O Operational Amplifiers,SGM8276-2XS8G Replace VT39080119.
SGM8276-2XS8G
SGM8276-2XS8G.pdf
SGM8276-2XS8G.pdfFEATURES
? Wide Input Common Mode and
Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

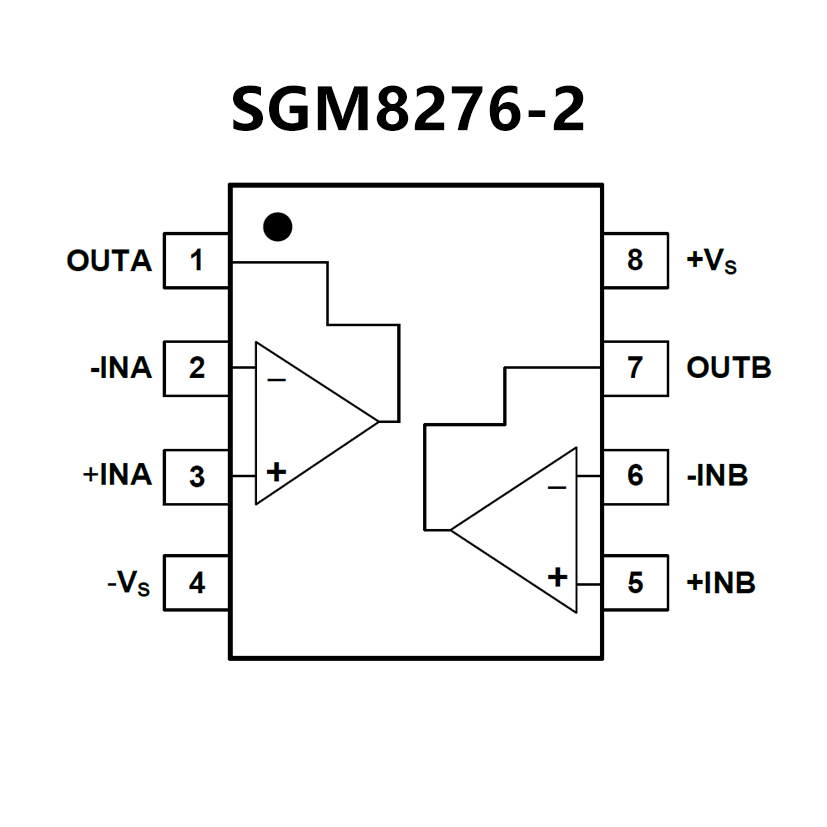

PIN CONFIGUTION
