SGM8276-4.pdf? Wide Input Common Mode and
Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package

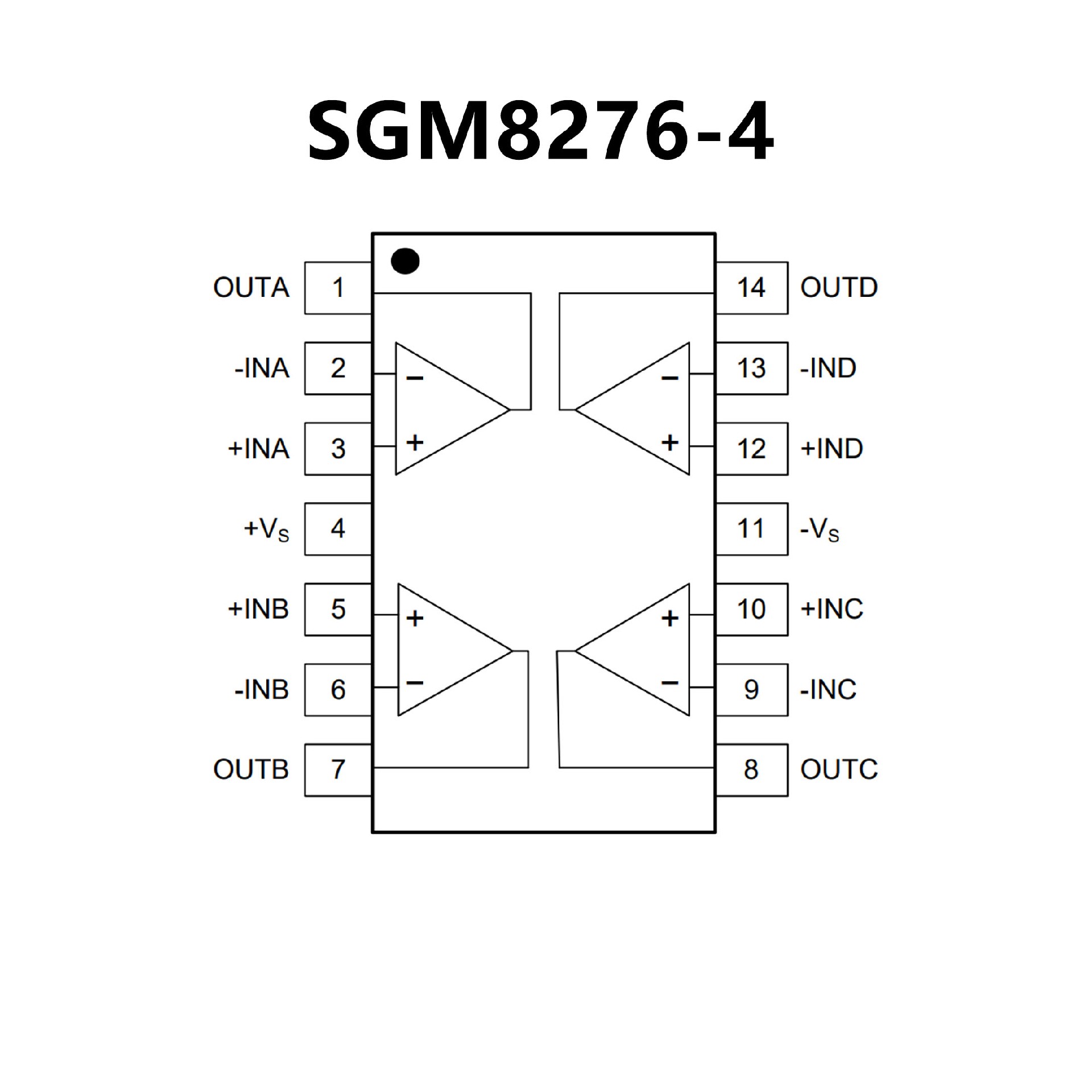

SGM8276-4 Available in a Green SOIC-14 Package

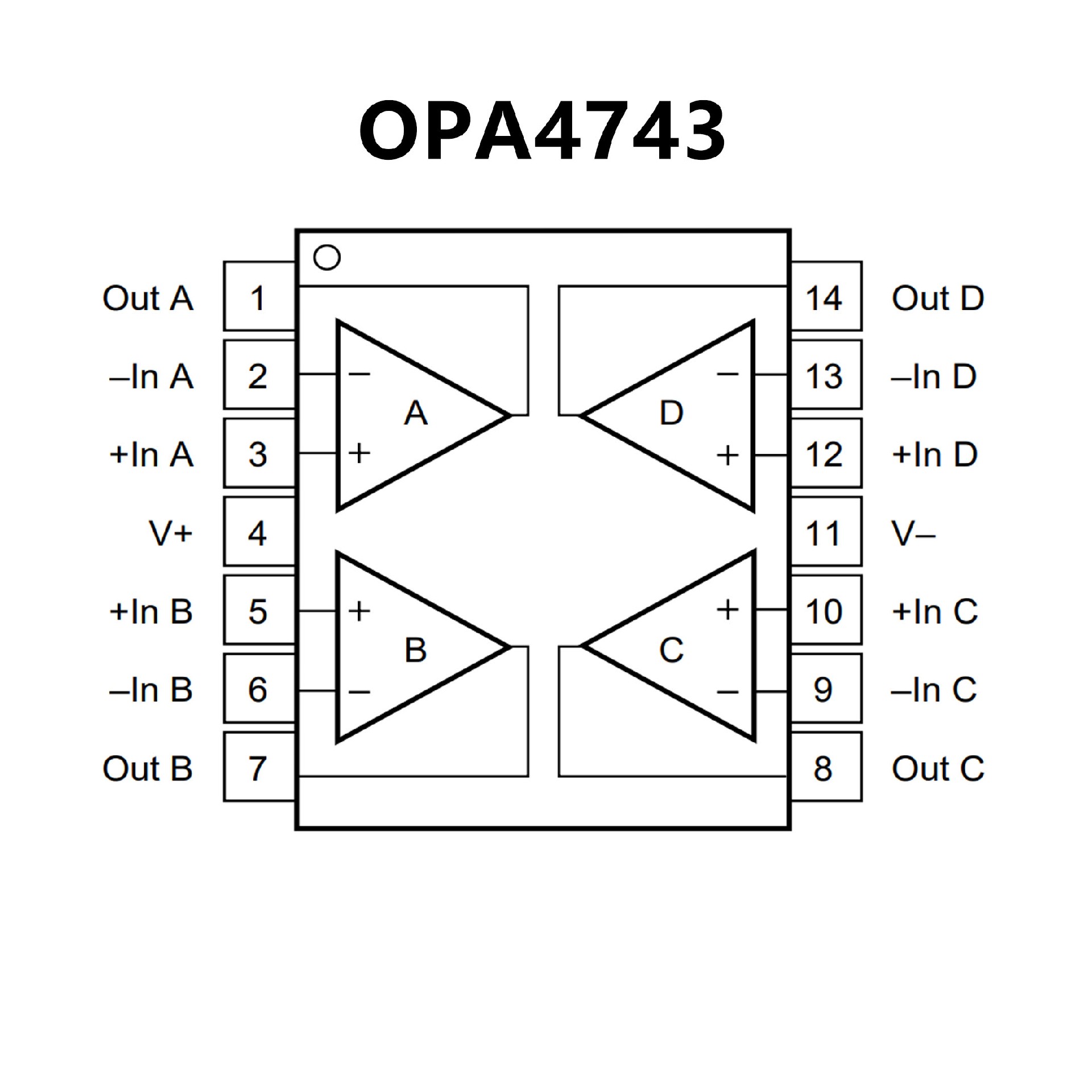

? HIGH SPEED: 7MHz, 10V/μs
? RAIL-TO-RAIL INPUT AND OUTPUT
? WIDE SUPPLY RANGE:
Single Supply: 3.5V to 12V
Dual Supplies: ±1.75V to ±6V
? LOW QUIESCENT CURRENT: 1.1mA
? FULL-SCALE CMRR: 84dB
? MicroSIZE PACKAGES:
SOT23-5, MSOP-8, TSSOP-14
? LOW INPUT BIAS CURRENT: 1pA
