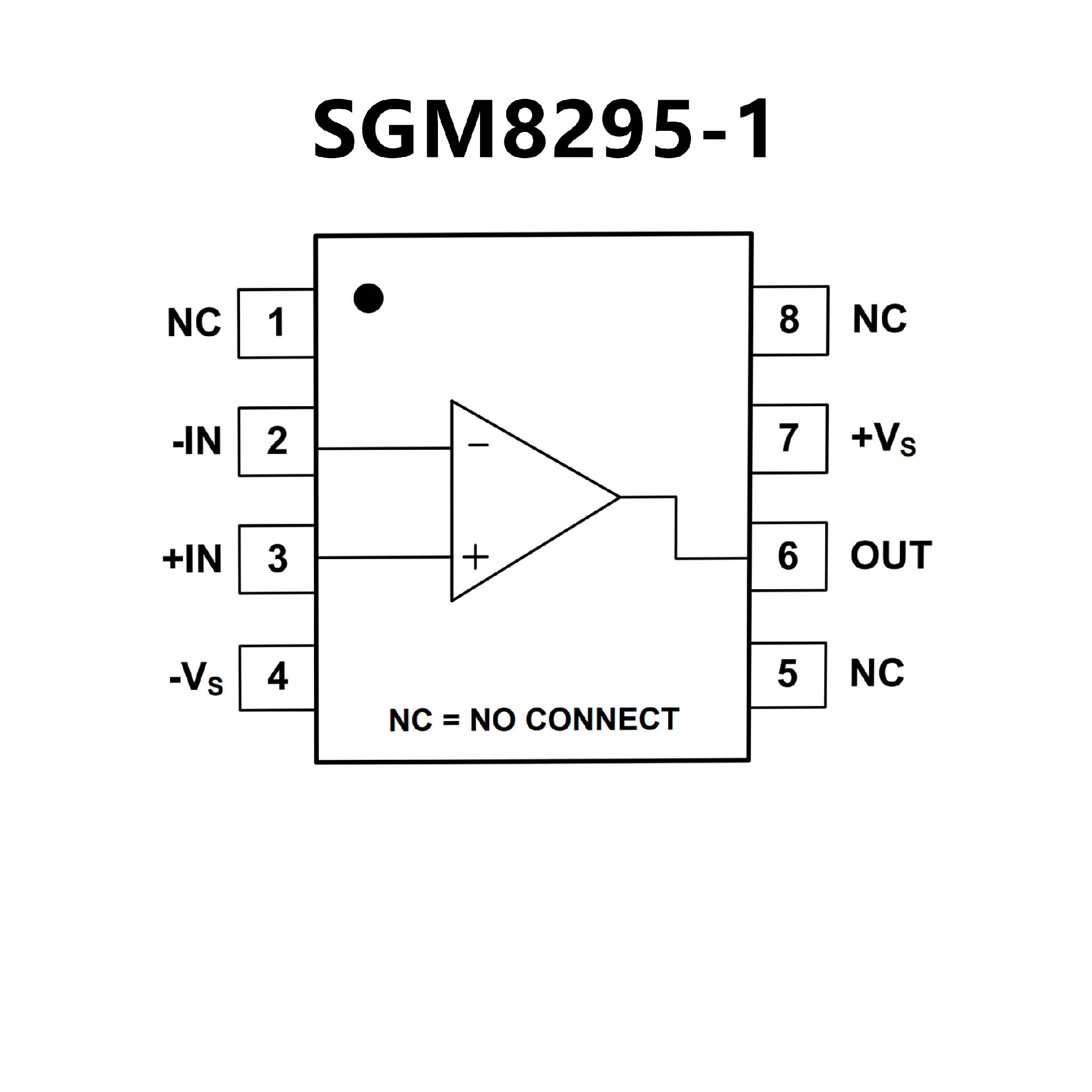

SGM8295-1.pdf? Low Noise: 4.5nV/Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current:
1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8295-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8295-2 Available in Green SOIC-8 and
MSOP-8 Packages
SGM8295-4 Available in a Green SOIC-14 Package

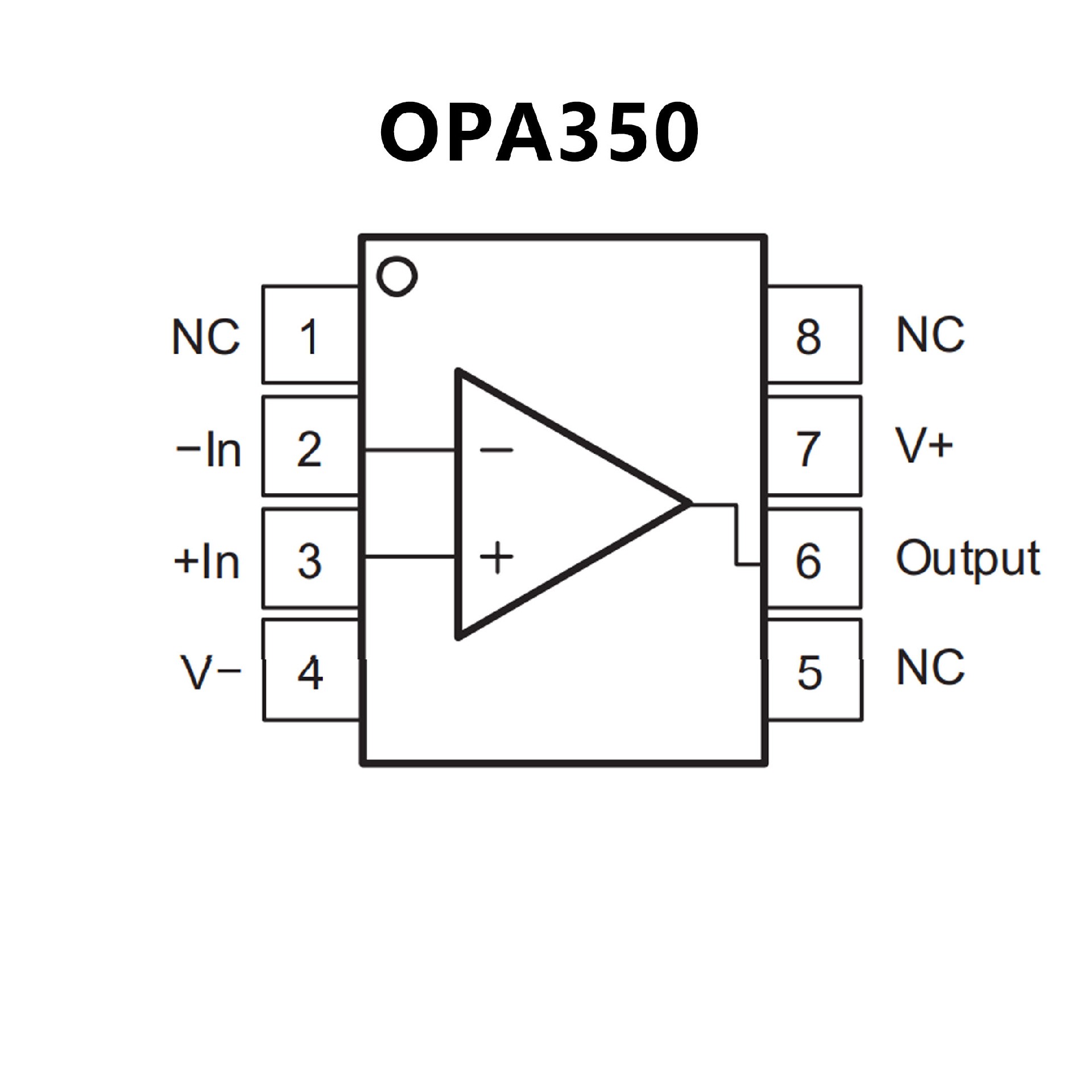

? Rail-to-Rail Input
? Rail-to-Rail Output (Within 10 mV)
? Wide Bandwidth: 38 MHz
? High Slew Rate: 22 V/μs
? Low Noise: 5 nV/√Hz
? Low THD+Noise: 0.0006%
? Unity-Gain Stable
? MicroSize Packages
? Single, Dual, and Quad
