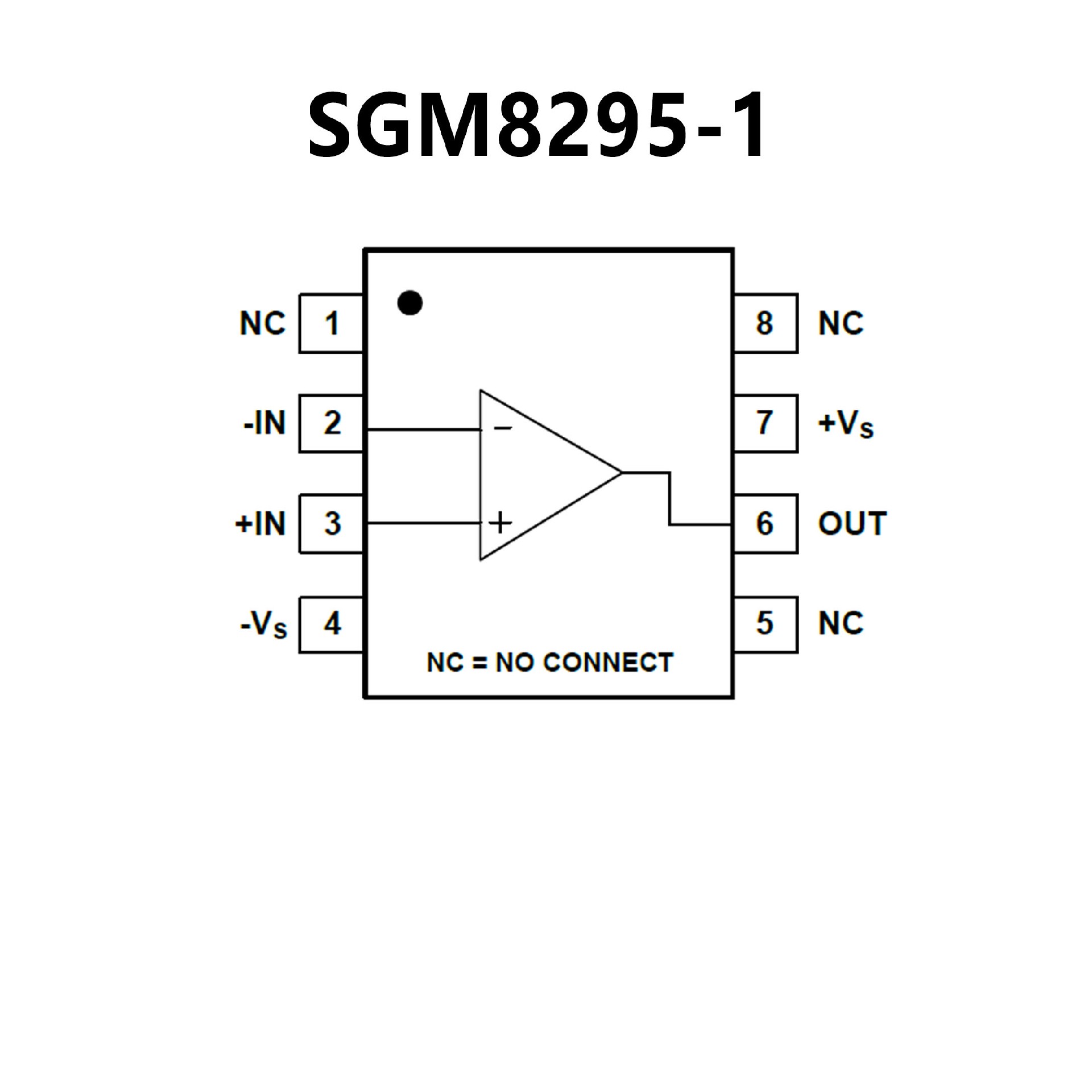

SGM8295-1.pdf? Low Noise: 4.5nV√Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current:
1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8295-1 Available in Green SOT-23-5
and SOIC-8 Packages
SGM8295-2 Available in Green SOIC-8
and MSOP-8 Packages
SGM8295-4 Available in a Green SOIC-14 Package

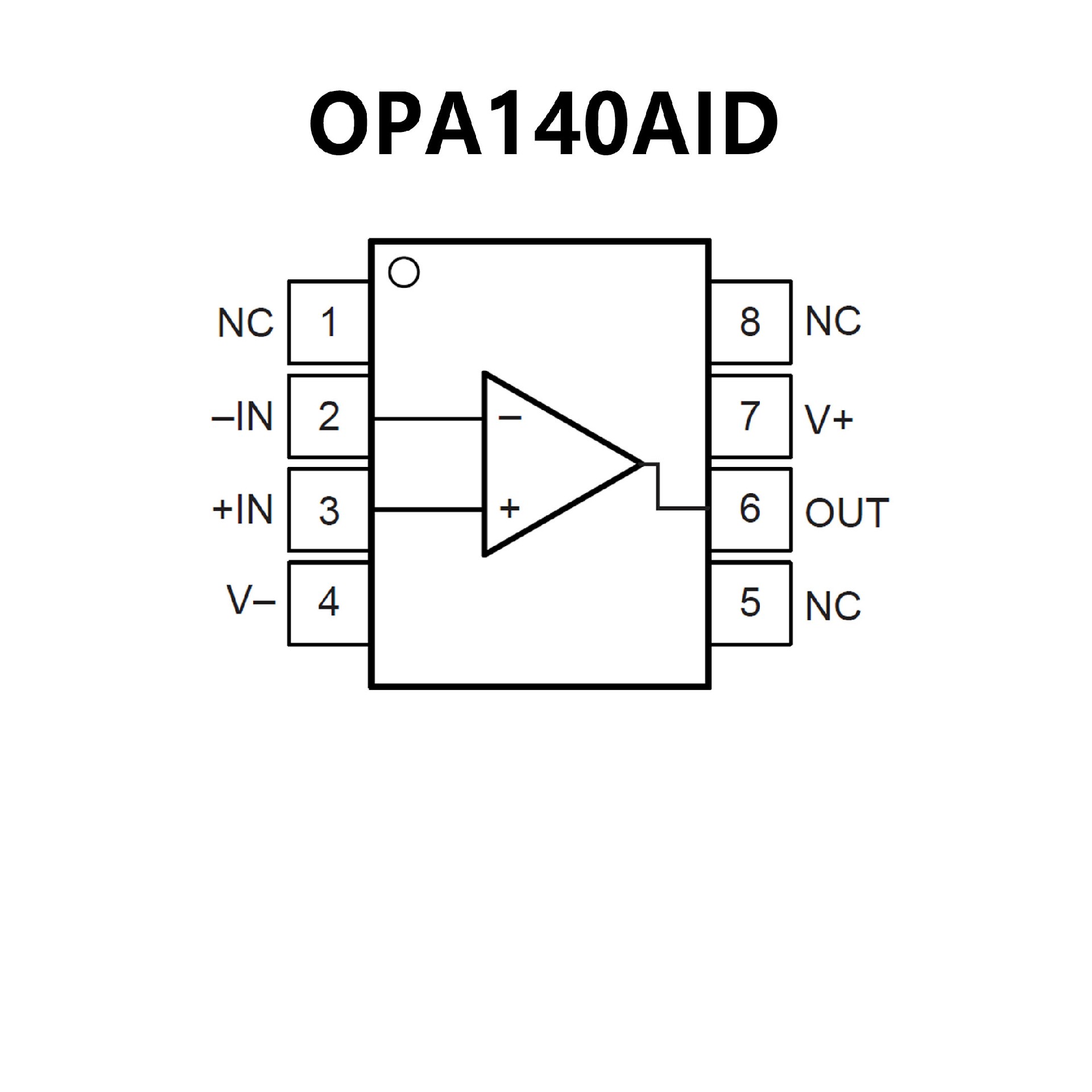

? Very-Low Offset Drift: 1 μV/°C maximum
? Very-Low Offset: 120 μV
? Low Input Bias Current: 10 pA maximum
? Very-Low 1/f Noise: 250 nVPP, 0.1 Hz to 10 Hz
? Low Noise: 5.1 nV/√Hz
? Slew Rate: 20 V/μs
? Low Supply Current: 2 mA maximum
? Input Voltage Range Includes V– supply
? Single-Supply Operation: 4.5 V to 36 V
? Dual-Supply Operation: ±2.25 V to ±18 V
? No Phase Reversal
? Industry-Standard SOIC Packages
? VSSOP, TSSOP, and SOT-23 Packages
