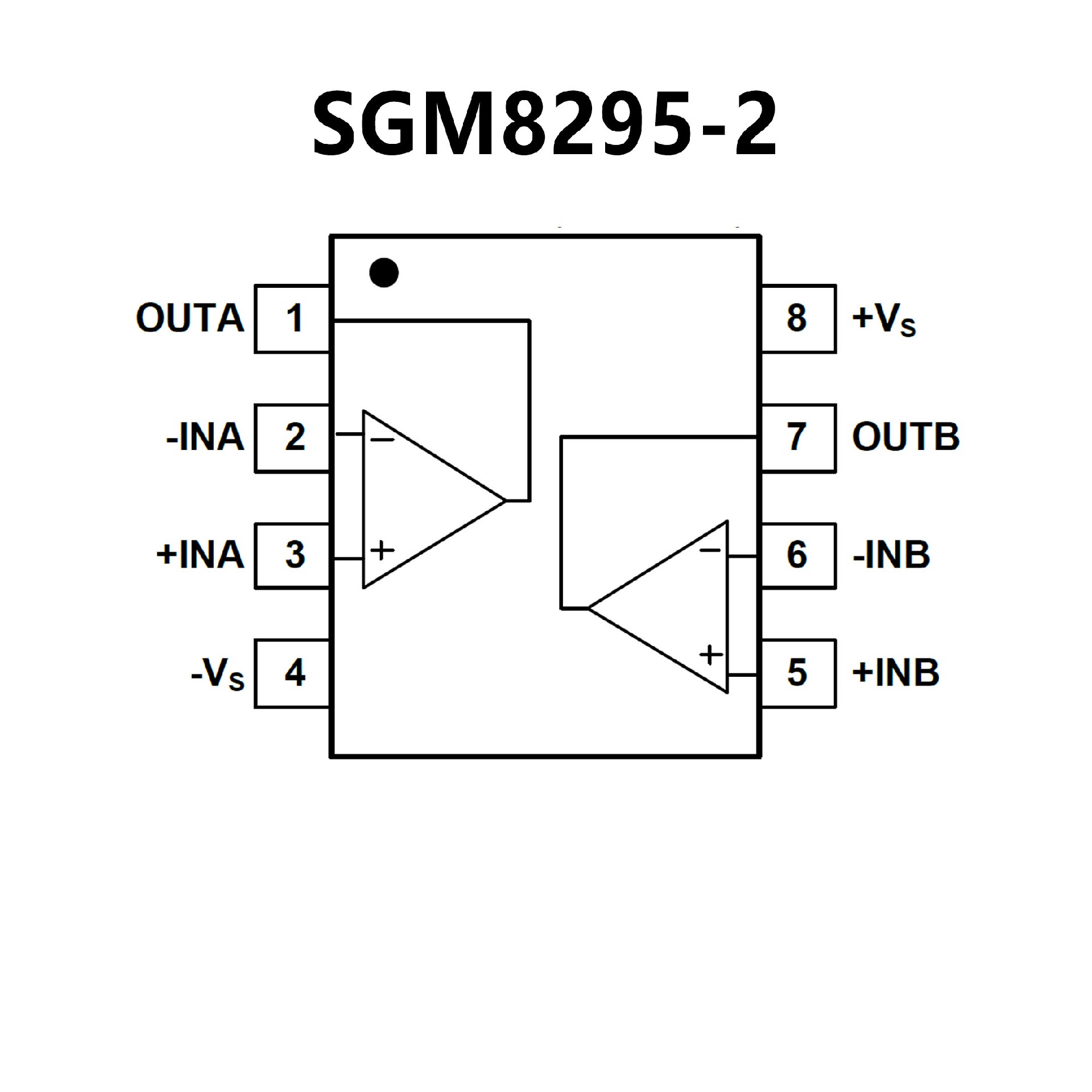

SGM8295-2.pdf? Low Noise: 4.5nV√Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current:
1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8295-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8295-2 Available in Green
SOIC-8 and MSOP-8 Packages
SGM8295-4 Available in a Green SOIC-14 Package

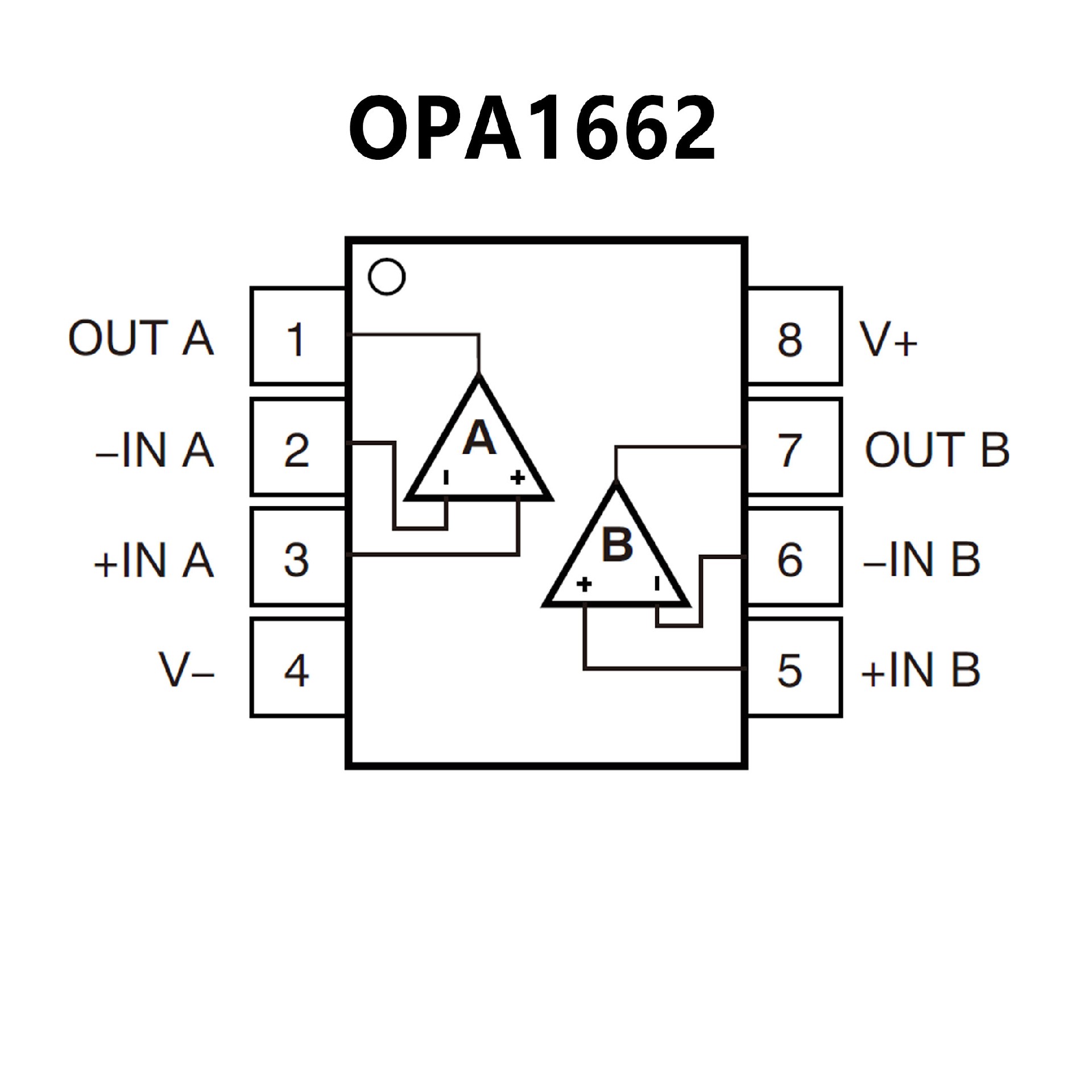

? Low Noise: 3.3 nV/√Hz at 1 kHz
? Low Distortion: 0.00006% at 1 kHz
? Low Quiescent Current: 1.5 mA per Channel
? Slew Rate: 17 V/μs
? Wide Gain Bandwidth: 22 MHz (G = +1)
? Unity Gain Stable ±30 mA.
? Rail-to-Rail Output
? Wide Supply Range: ±1.5V to ±18V, or +3V to +36V
? Dual and Quad Versions Available
? Small Package Sizes: Dual: SO-8 and MSOP-8
