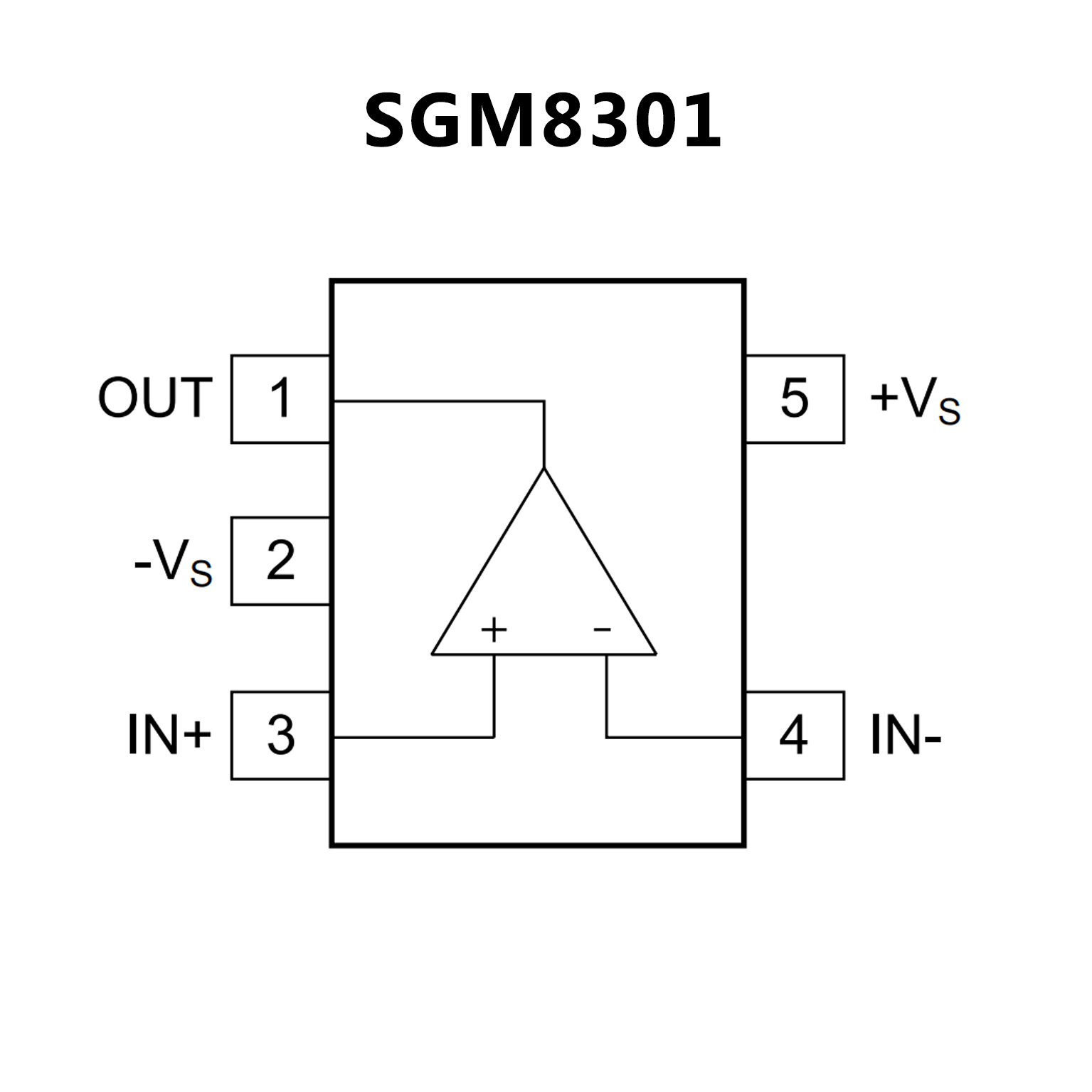

SGM8301.pdf? 4.5V to 12V Single Supplies or ±2.25V to ±6V
Dual Power Supplies
? High Speed
100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness 155V/μs Slew Rate
? Rail-to-Rail Output
? Low Differential Gain/Phase: 0.02%/0.02°
? High Output Drive: 103mA
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8301 Available in SOT-23-5
SOIC-8 and MSOP-8
SGM8302 Available in MSOP-8 and SOIC-8
SGM8304 Available in SOIC-14 and TSSOP-14

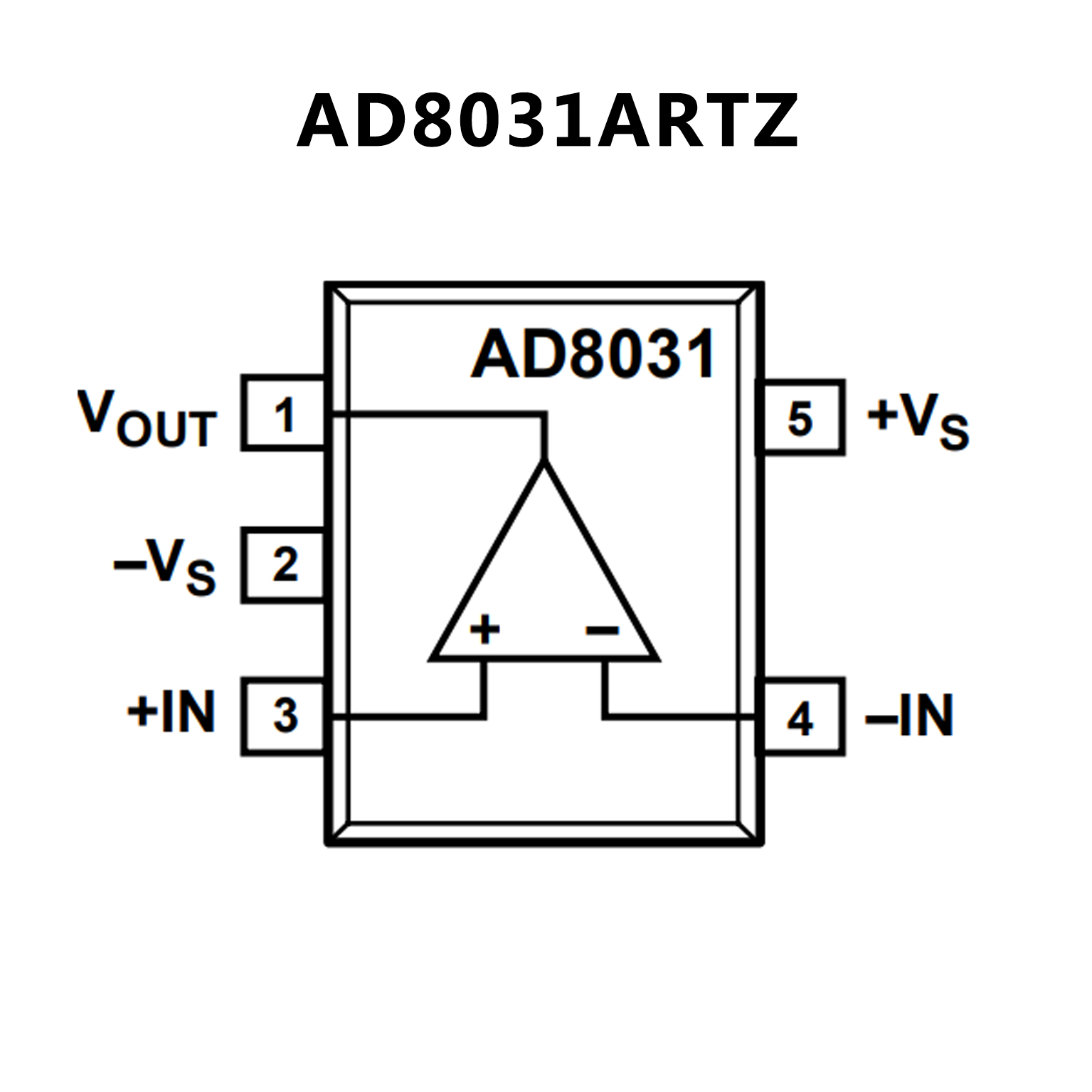

? Supply current 800 μA/amplifier
? Fully specified at +2.7 V, +5 V, and ±5 V supplies
? High speed and fast settling on 5 V
? 80 MHz, ?3 dB bandwidth (G = +1)
? 30 V/μs slew rate
? 125 ns settling time to 0.1%
? Rail-to-rail input and output
? No phase reversal with input 0.5 V beyond supplies
? Input CMVR extends beyond rails by 200 mV
? Output swing to within 20 mV of either rail
? Low distortion
?62 dB @ 1 MHz, VO = 2 V p-p
?86 dB @ 100 kHz, VO = 4.6 V p-p
? Output current: 15 mA
? High grade option: VOS (maximum) = 1.5 mV
