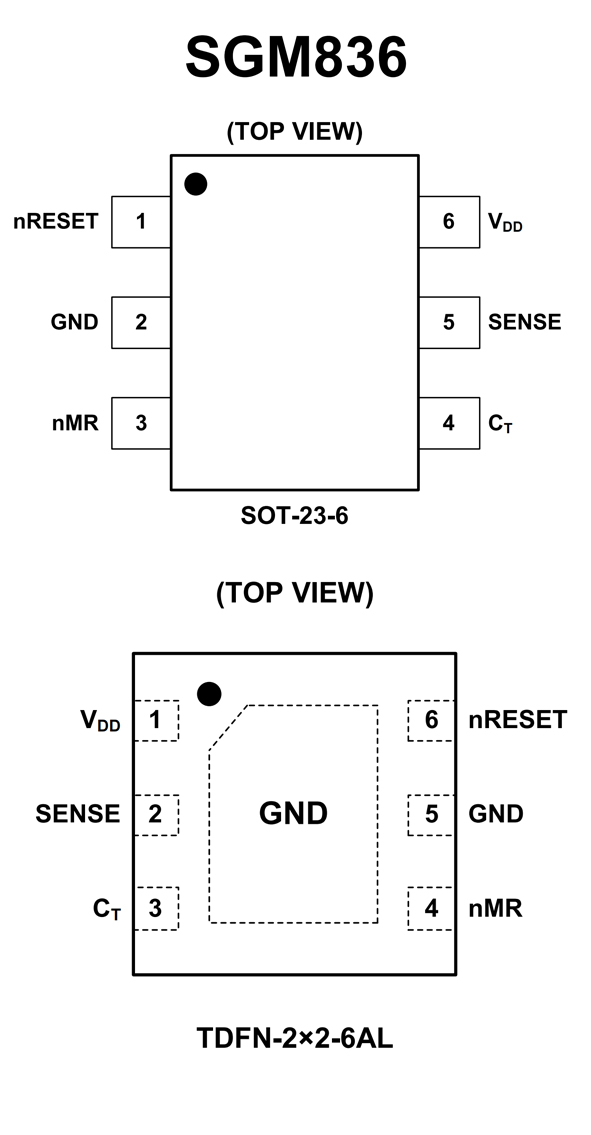

SGM836.pdf? Adjustable Reset Timeout Period: 1.25ms to 10s
? Low Quiescent Current: 0.6μA (TYP)
? High Threshold Accuracy: 1% (TYP)
? Factory-Set Detection Voltages from 0.9V to 5V
and Adjustable Detection Voltage Down to 0.4V
? Manual Reset (nMR) Input
? Open-Drain nRESET Output
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-6 and TDFN-2×2-6AL
Packages

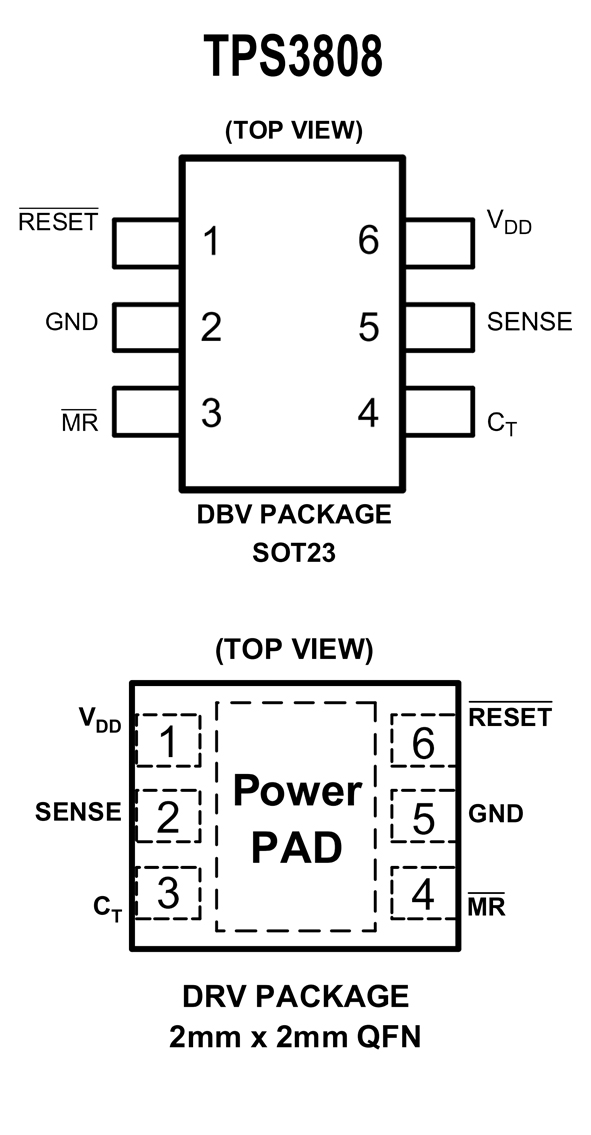

? Power-On Reset Generator with Adjustable Delay
? Time: 1.25 ms to 10 s
? Very Low Quiescent Current: 2.4 μA Typical
? High Threshold Accuracy: 0.5% Typ
? Fixed Threshold Voltages for Standard Voltage
Rails from 0.9 V to 5 V and Adjustable Voltage
Down to 0.4 V Are Available
? Manual Reset ( MR) Input
? Open-Drain RESET Output
? Temperature Range: –40°C to 125°C
? Small SOT-23 and 2-mm × 2-mm WSON
Packages
