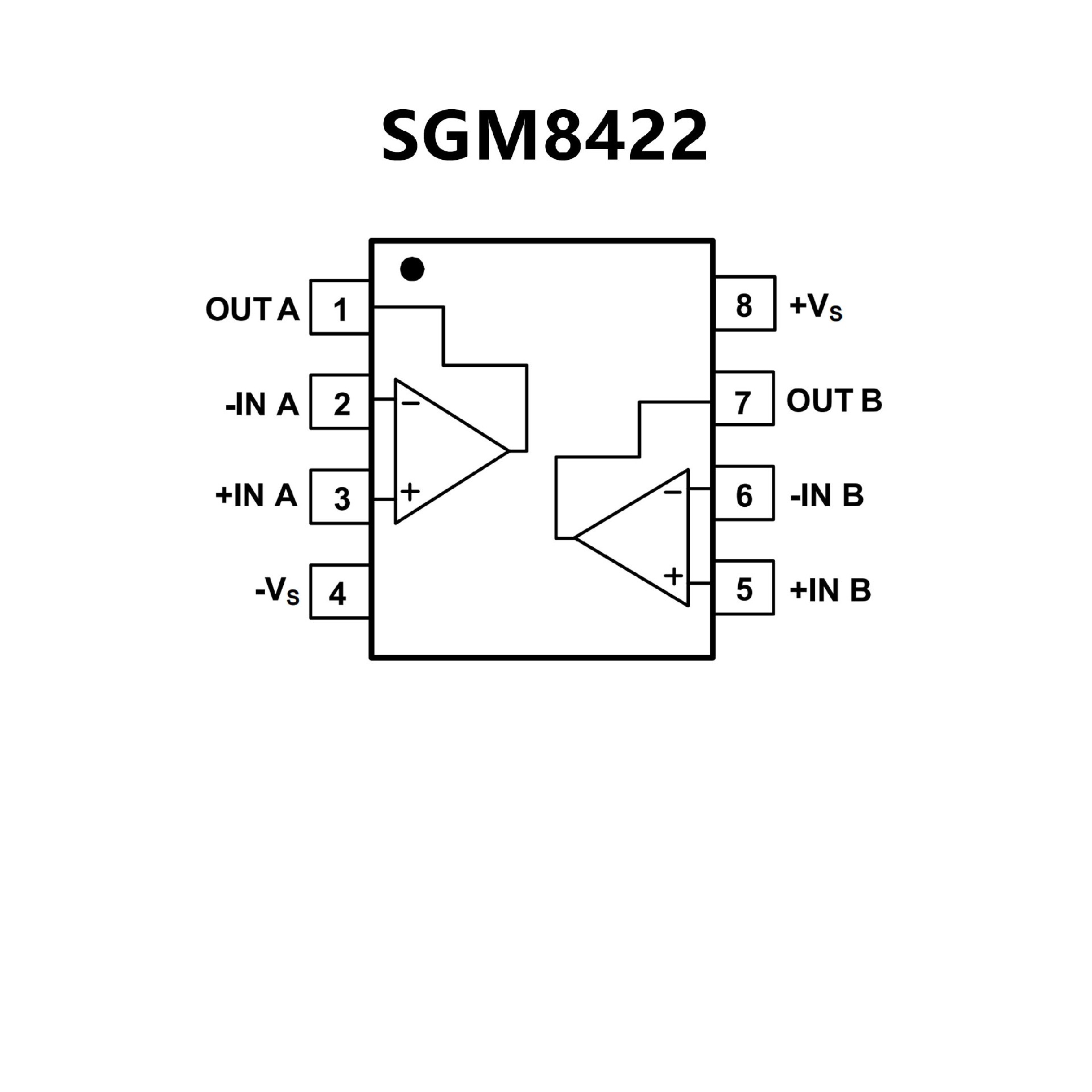

SGM8422.pdf? ±2.5V to ±15V Dual Power Supplies
or a +5V to +30V Single Supply
? Gain Bandwidth Product: 2.2MHz (TYP)
? Supply Current/Amplifier: 0.8mA
? High Slew Rate: 1.9V/μs
? High Output Voltage Swing: 3.96V
(with 70mA Output Current at VS = +5V)
? Low Output Voltage Swing: 0.96V
(with 70mA Output Current at VS = +5V)
? Beyond the Rails Input Capability
? Rail-to-Rail Output Swing
? Green SOIC-8 and MSOP-8 Packages
? -40℃ to +85℃ Operating Temperature Range

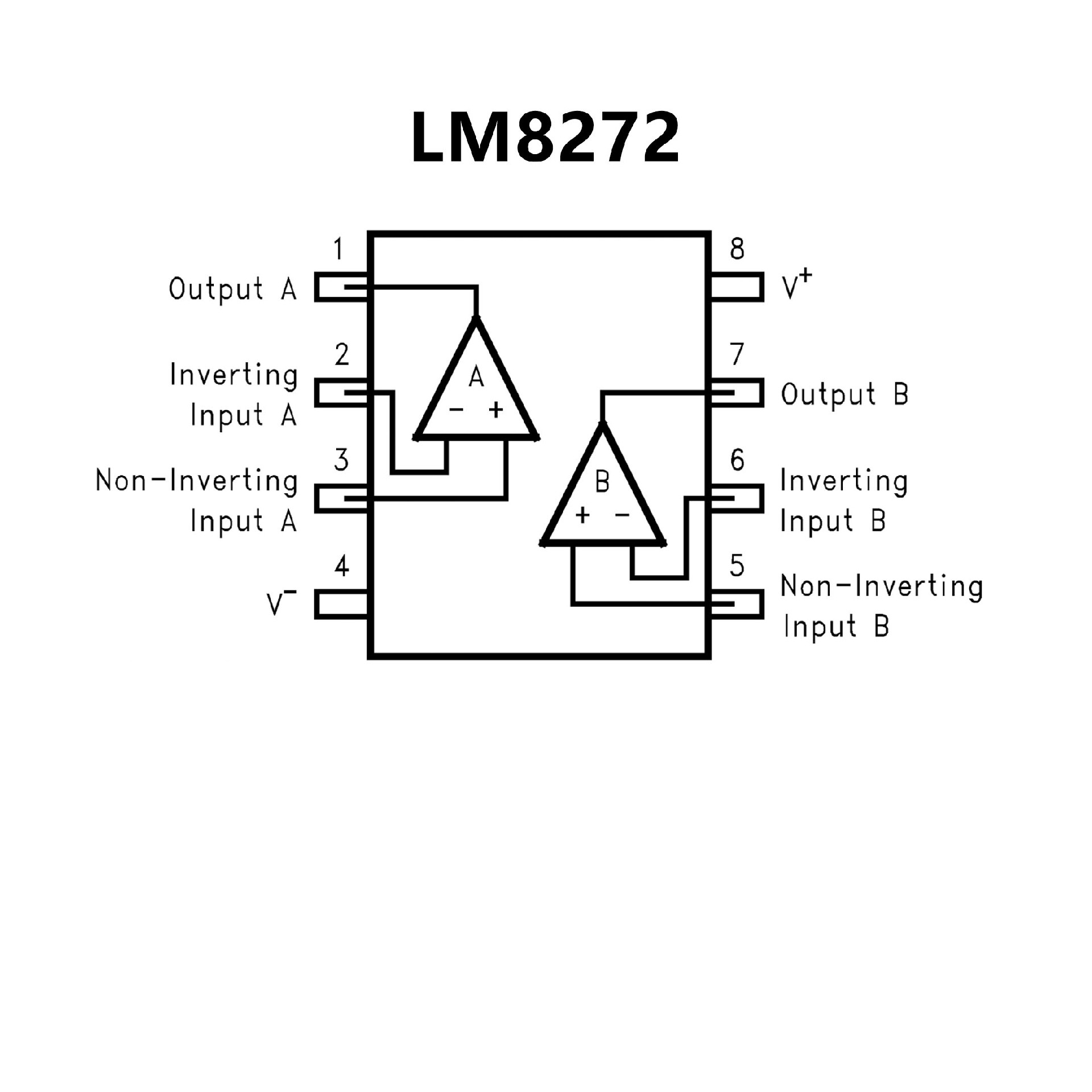

? (VS = 12V, TA = 25°C, Typical values unless 1specified).
? GBWP 15MHz
? Wide supply voltage range 2.5 V to 24 V
? Slew rate 15 V/μs
? Supply current/channel 0.95 mA
? Cap load tolerance Unlimited
? Output short circuit current ±13 0mA
? Output current (1 V from rails) ±65 mA
? Input common mode voltage 0.3 V beyond rails
? Input voltage noise 15 nV/√Hz
? Input current noise 1.4 pA/√Hz
