SGM8422.pdf? ±2.25V to ±15V Dual Power Supplies
or 4.5V to30V Single Supply
? Gain-Bandwidth Product: 2.4MHz (TYP)
? Supply Current: 0.72mA/Amplifier
? High Slew Rate: 2V/μs
? Beyond the Rails Input Capability
? Rail-to-Rail Output Swing
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:

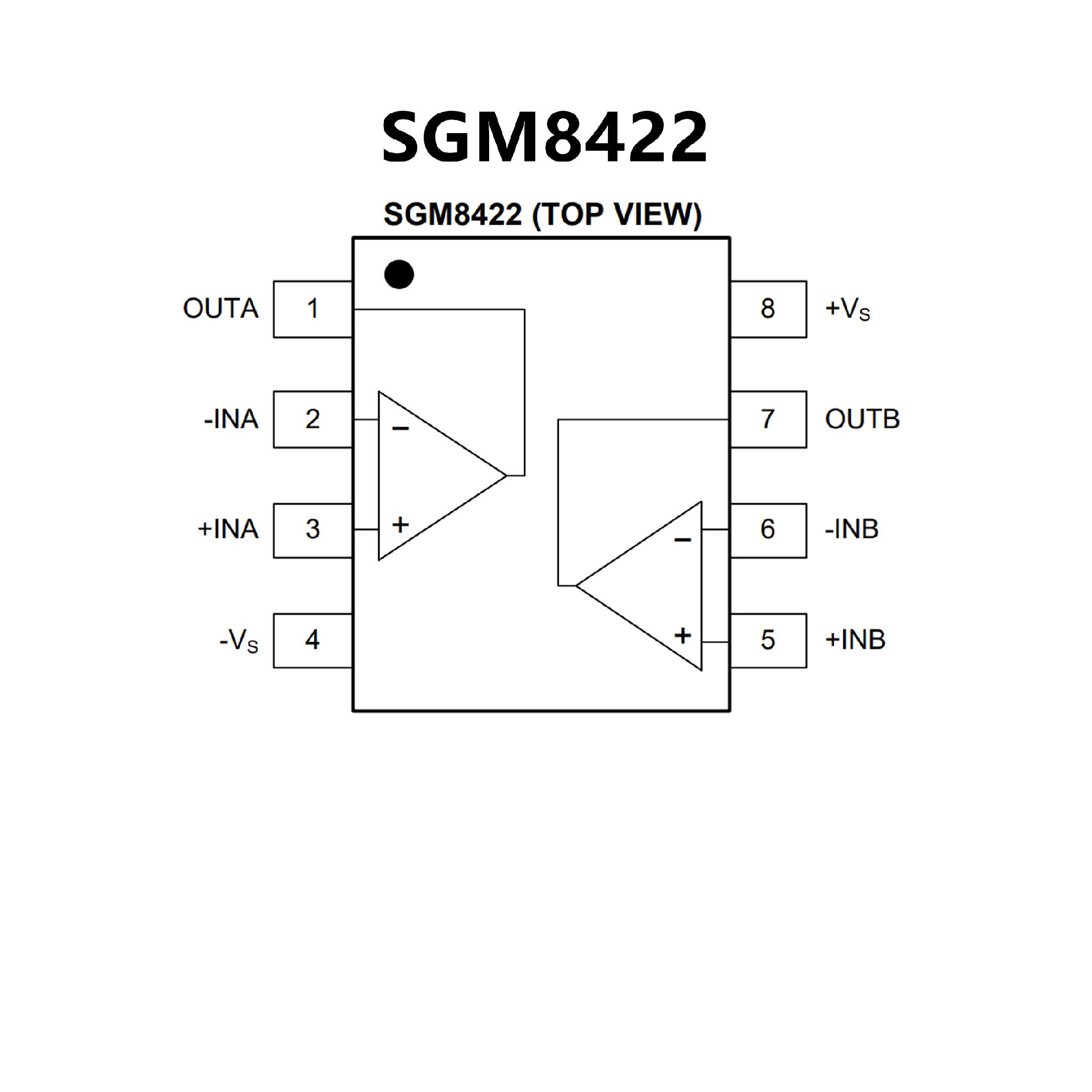

SGM8422 Available in SOIC-8 and MSOP-8 Packages
SGM8424 Available in TSSOP-14 and SOIC-14Packages
? (Typical Unless Otherwise Noted)

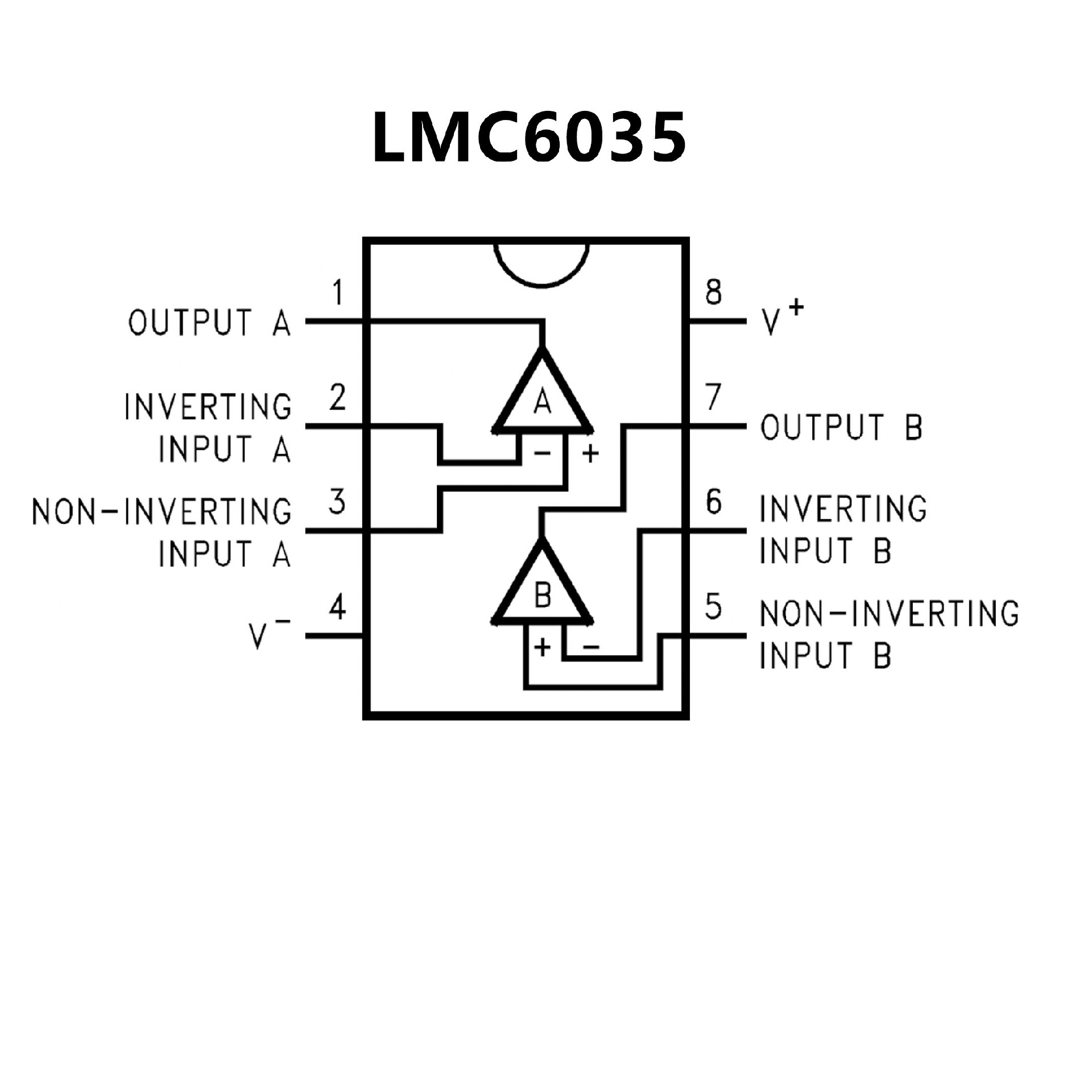

? LMC6035 in DSBGA Package
? Ensured 2.7V, 3V, 5V and 15V Performance
? Specified for 2 kΩ and 600Ω Loads
? Wide Operating Range: 2.0V to 15.5V
? Ultra Low Input Current: 20fA
? Rail-to-Rail Output Swing
@ 600Ω: 200mV from Either Rail at 2.7V
@ 100kΩ: 5mV from Either Rail at 2.7V
? High Voltage Gain: 126dB
? Wide Input Common-Mode Voltage Range
-0.1V to 2.3V at VS = 2.7V
? Low Distortion: 0.01% at 10kHz
? LMC6035 Dual LMC6036 Quad
? See AN-1112 (Literature Number SNVA009)
for DSBGA Considerations
? AEC-Q100 Grade 3 Qualified (LMC6035-Q1)
