Application-specific Operational Amplifier, SGM8428 Replace TL3474.
SGM8428
SGM8428.pdf
SGM8428.pdfFEATURES
? -3dB Bandwidth: 18MHz
? Supply Current/Amplifier: 1.6mA
? High Slew Rate: 16V/μs
? Beyond the Rails Input Capability
? Rail-to-Rail Output Swing
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8428 Available in SOIC-14 and TSSOP-14 Packages

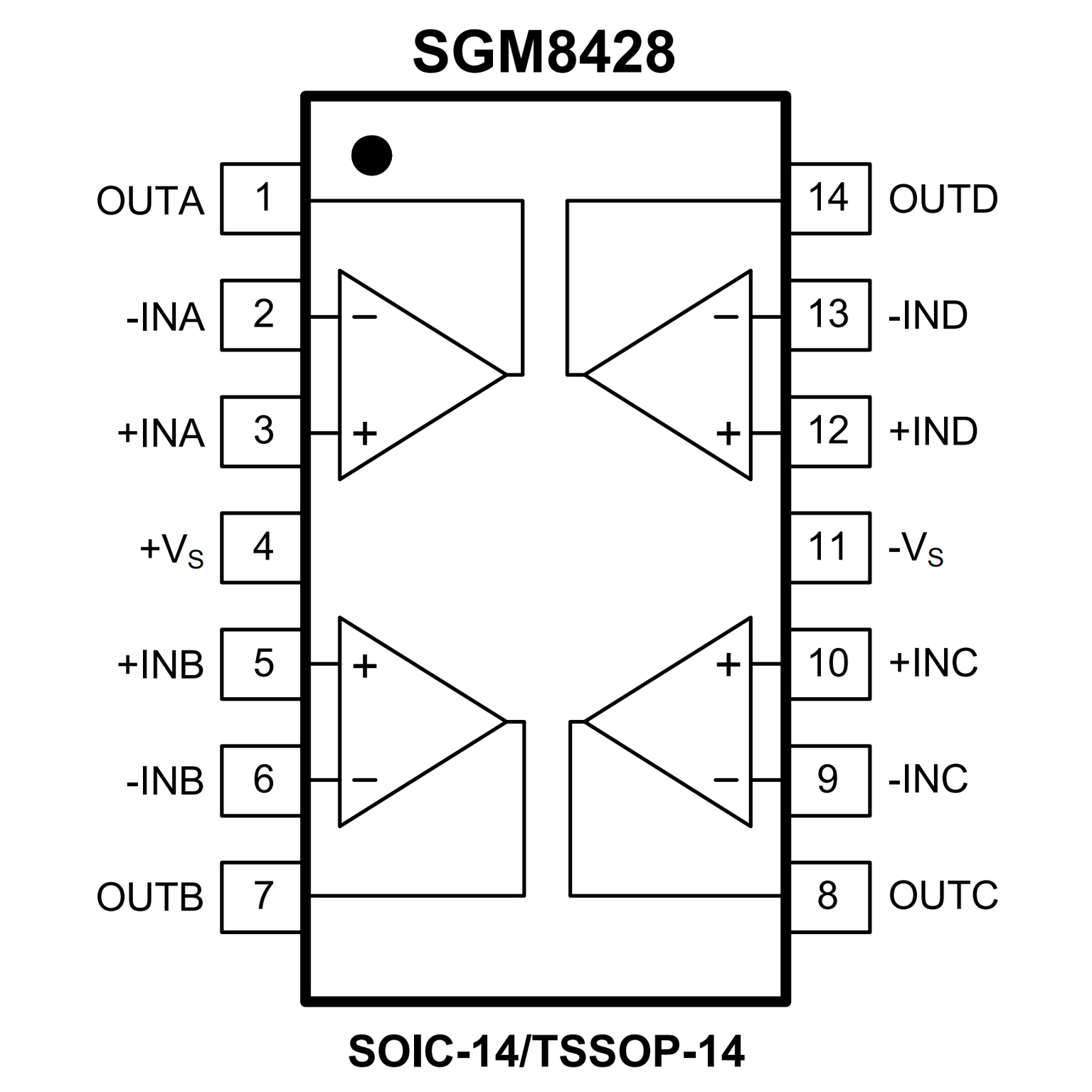

PIN CONFIGUTION
優勢替代
FEATURES
? Low Offset . . . 3 mV (Max) for A-Grade
? Wide Gain-Bandwidth Product . . . 4 MHz
? High Slew Rate . . . 13 V/μs
? Fast Settling Time . . . 1.1 μs to 0.1%
? Wide-Range Single-Supply Operation. . . 4 V to 36 V
? Wide Input Common-Mode Range Includes Ground (VCC?)
? Low Total Harmonic Distortion . . . 0.02%
? Large-Capacitance Drive Capability . . . 10,000 pF
? Output Short-Circuit Protection
? Alternative to MC33074/A and MC34074/A

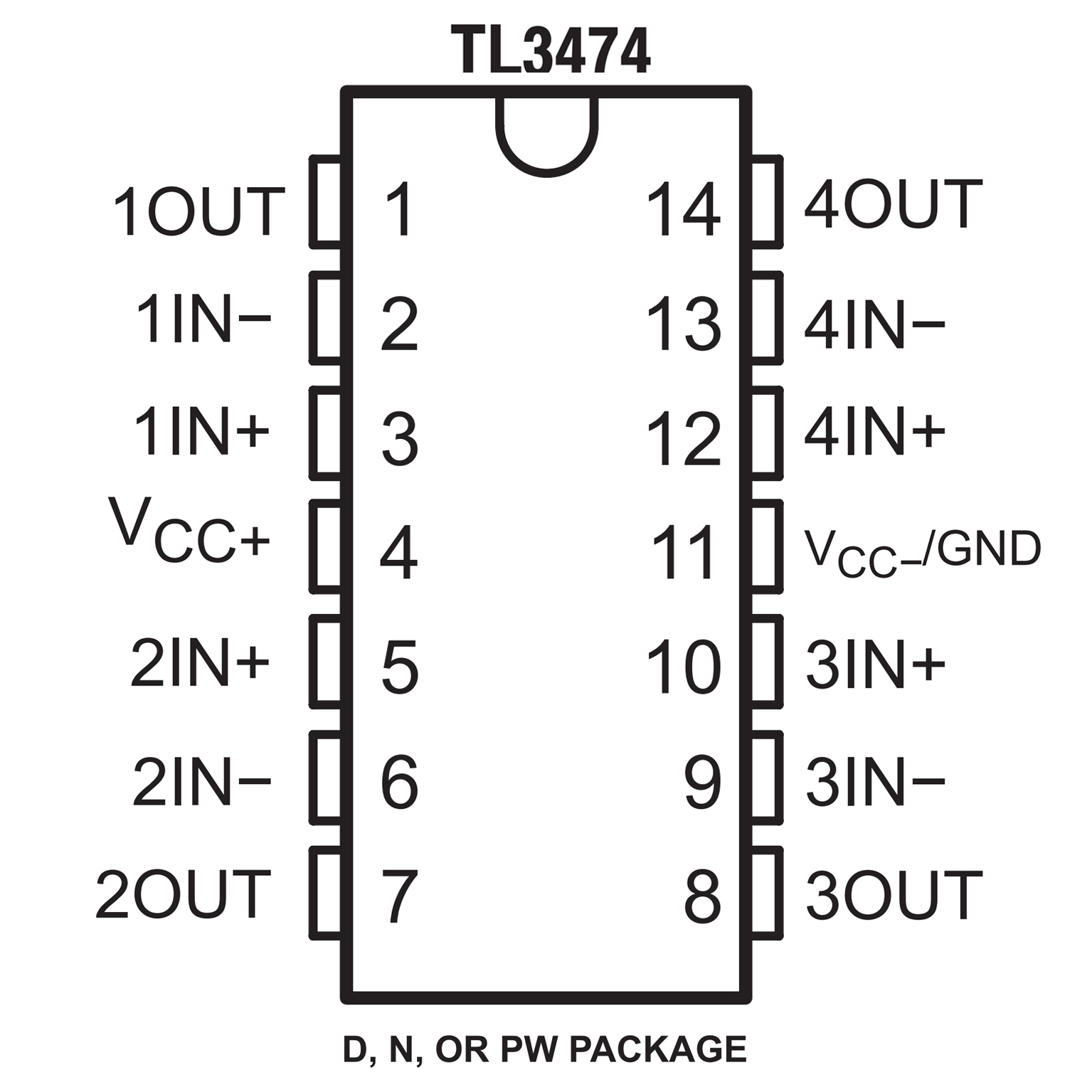

PIN CONFIGUTION
