SGM850Q.pdf
?AEC-Q100 Qualified with the following results:
–Device temperature grade 1: –40°C to 125°C ambient
operating temperature range
–Device HBM ESD classification level 2
–Device CDM ESD classification level C4B
?Functional Safety-capable
–Documentation available to aid functional safety
system design
?Input voltage range: VDD = 1.6 V to 6.5 V
?0.8% Voltage threshold accuracy (Maximum)
?Low supply current: IDD = 10 μA (typical)
?User-programmable watchdog timeout
?User-programmable reset delay
?Factory programmed precision watchdog and reset timers
?Open-drain outputs
?Precision over- and undervoltage monitoring:
–Supports common rails from 0.9 V to 5.0 V
–4% and 7% Fault windows available
–0.5% Hysteresis
?Watchdog disable feature

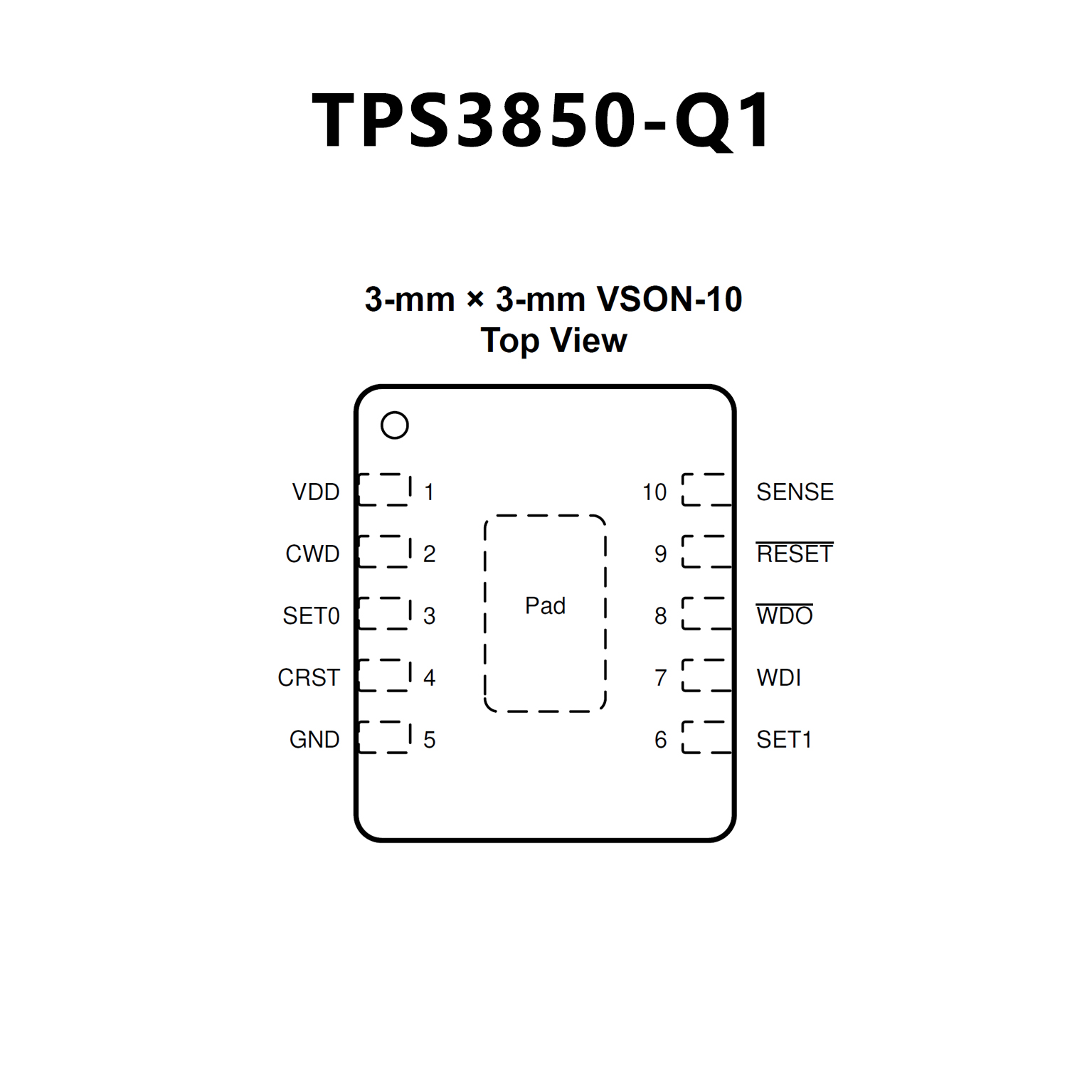

?Available in a small 3-mm × 3-mm, 10-Pin VSON package
