Micro Power operational Amplifier,SGM8521 Replace TLC27L1.
SGM8521
SGM8521.pdf
SGM8521.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 150kHz
? Very Low Input Bias Currents : 0.5pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 4.7μA/Amplifier
? Small Packaging
SGM8521 Available in SOIC-8 and SOT-23-5

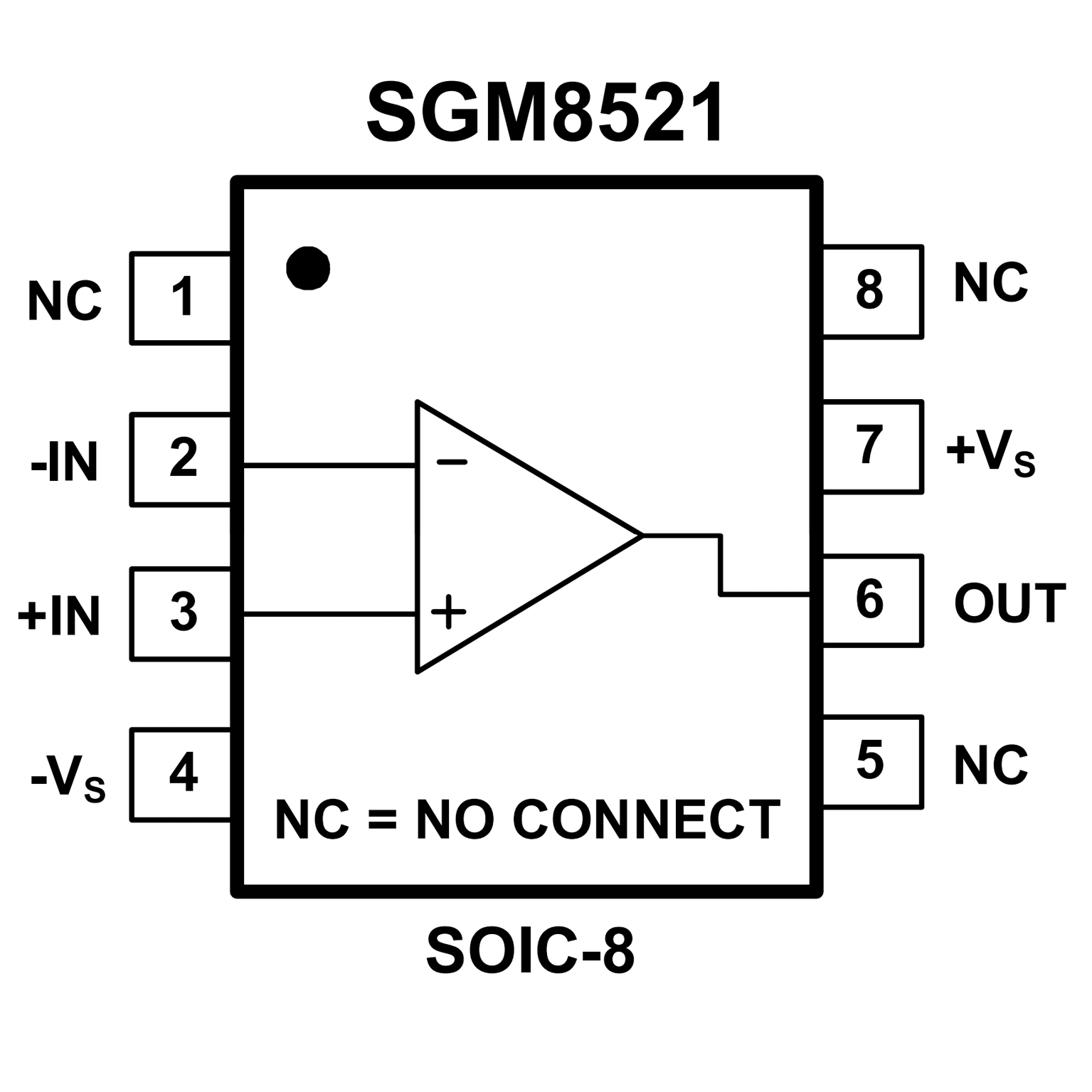

PIN CONFIGUTION
優勢替代
FEATURES
? Input Offset Voltage Drift ...Typically
0.1 μV/Month, Including the First 30 Days
? Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
?40°C to 85°C . . . 4 V to 16 V
?55°C to 125°C . . . 5 V to 16 V
? Single-Supply Operation
? Common-Mode Input Voltage Range Extends Below
the Negative Rail (C-Suffix and I-Suffix Types)
? Low Noise . . . 68 nV/√Hz Typically at f = 1 kHz
? Output Voltage Range Includes Negative Rail
? High Input Impedance . . . 1012 ? Typ
? ESD-Protection Circuitry
? Small-Outline Package Option Also Available in
Tape and Reel
? Designed-In Latch-Up Immunity

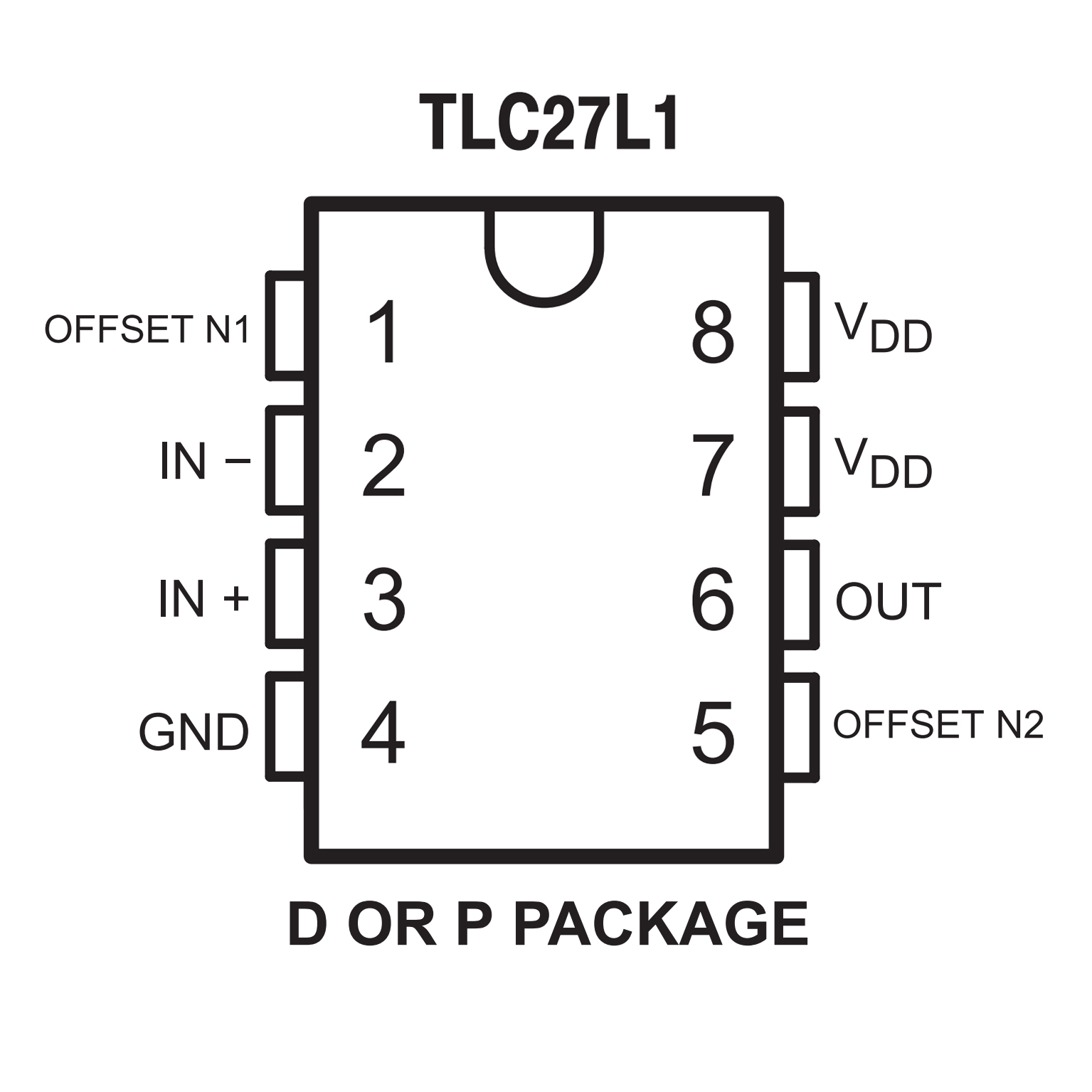

PIN CONFIGUTION
