Micro Power operational Amplifier,SGM8538-4 Replace OPA4313.
SGM8538
SGM8538.pdf
SGM8538.pdfFEATURES
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current
80μA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8537
? Small Packaging:
SGM8538 Available in SOIC-14 and TSSOP-14

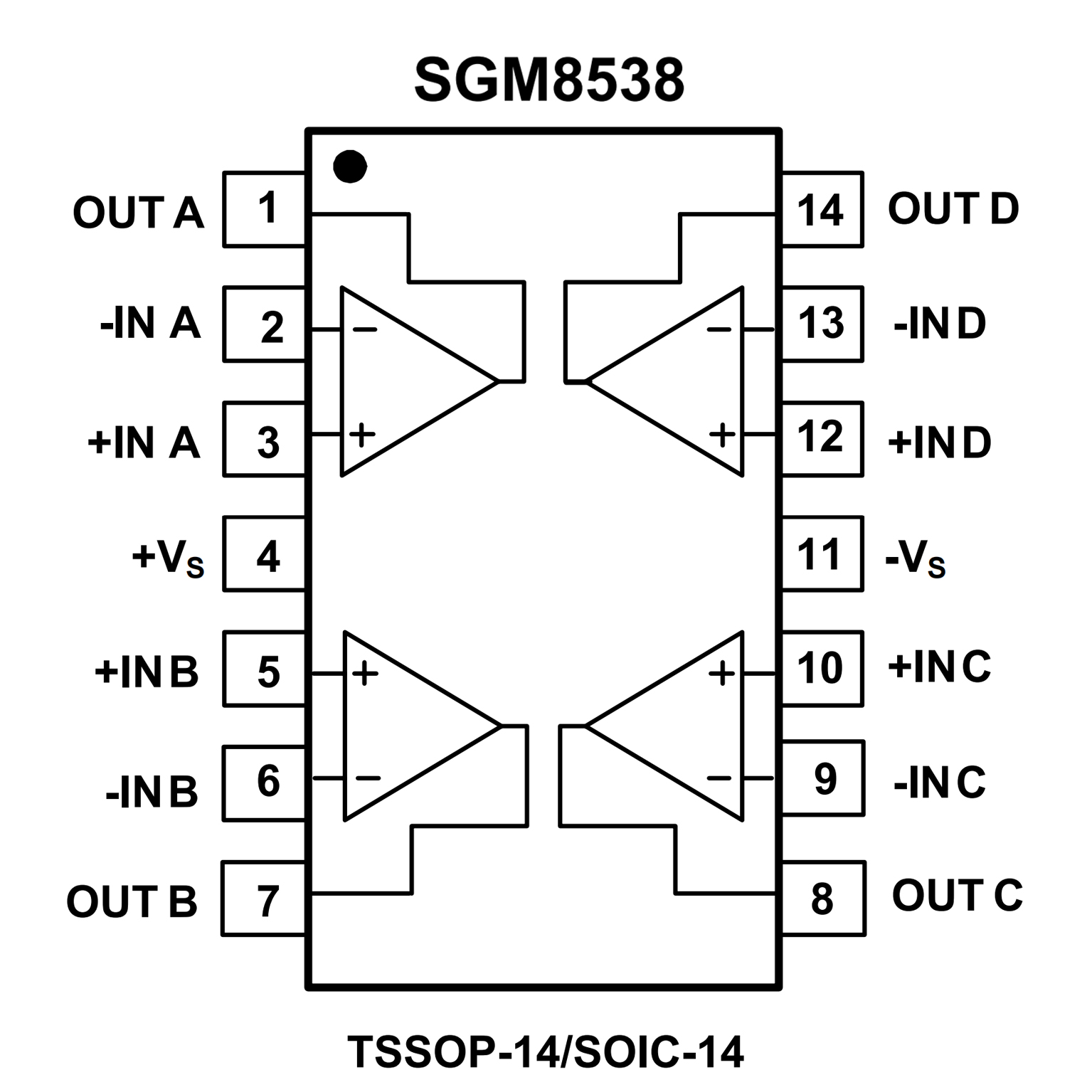

PIN CONFIGUTION
優勢替代
FEATURES
? Low IQ: 50 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 25 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Low Input Bias Current: 0.2 pA
? Low Offset Voltage: 0.5 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C
PIN CONFIGUTION
