1.1MHz, 46μA, Rail-to-Rail I/O,CMOS Operational Amplifiers,SGM8541XN5 Replace TSV321RILT.
SGM8541XN5
SGM8541XN5.pdf
SGM8541XN5.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:
SGM8541 Available in Green SOIC-8, SC70-5
and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8, MSOP-8
and TSSOP-8 Packages
SGM8544 Available in Green SOIC-14 and
TSSOP-14 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Operating range VCC = 2.5 V to 6 V
? Rail-to-rail input and output
? Extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
? Capable of driving a 32 Ω load resistor
? High stability: 500 pF
? Operating temperature range: -40 to 125 °C

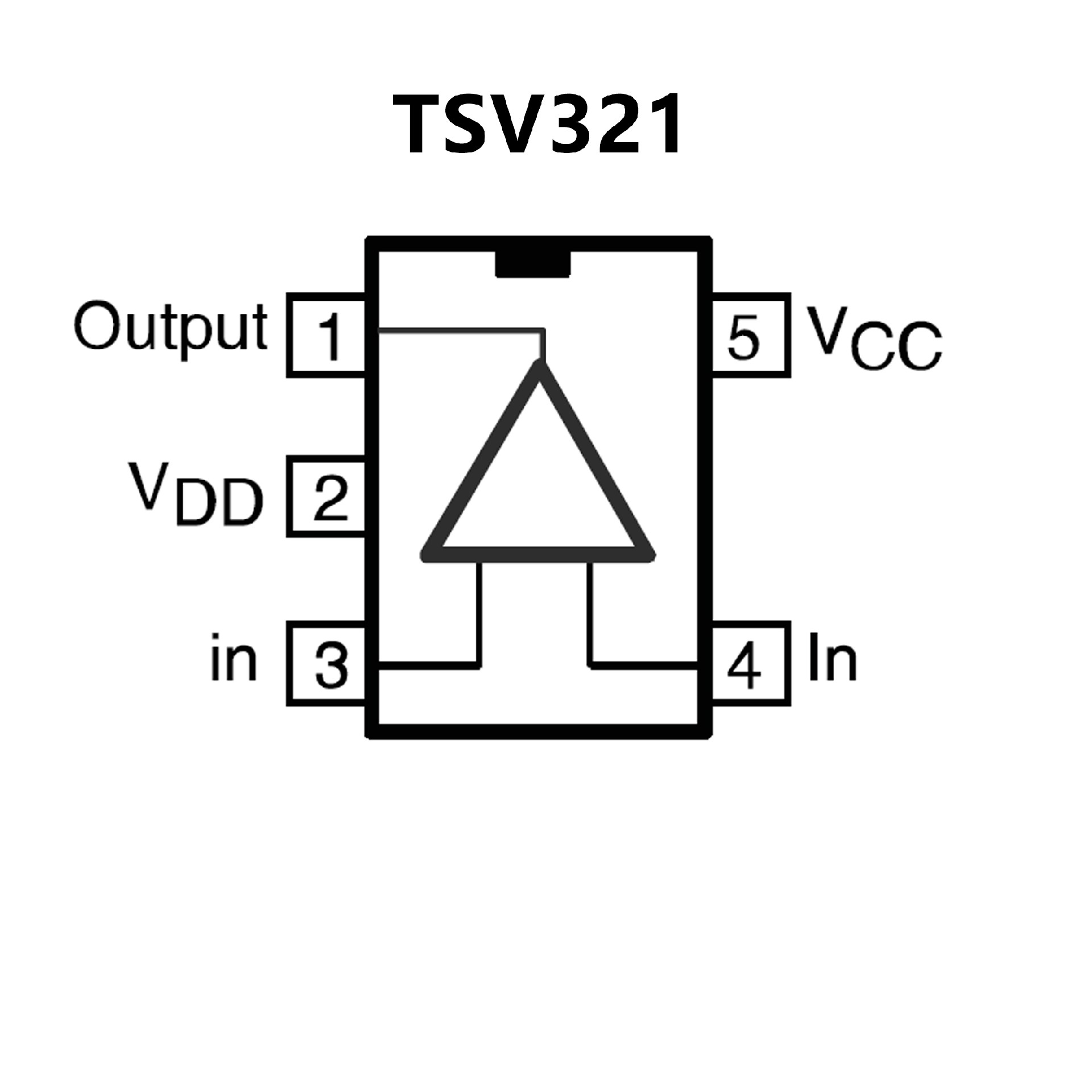

PIN CONFIGUTION
