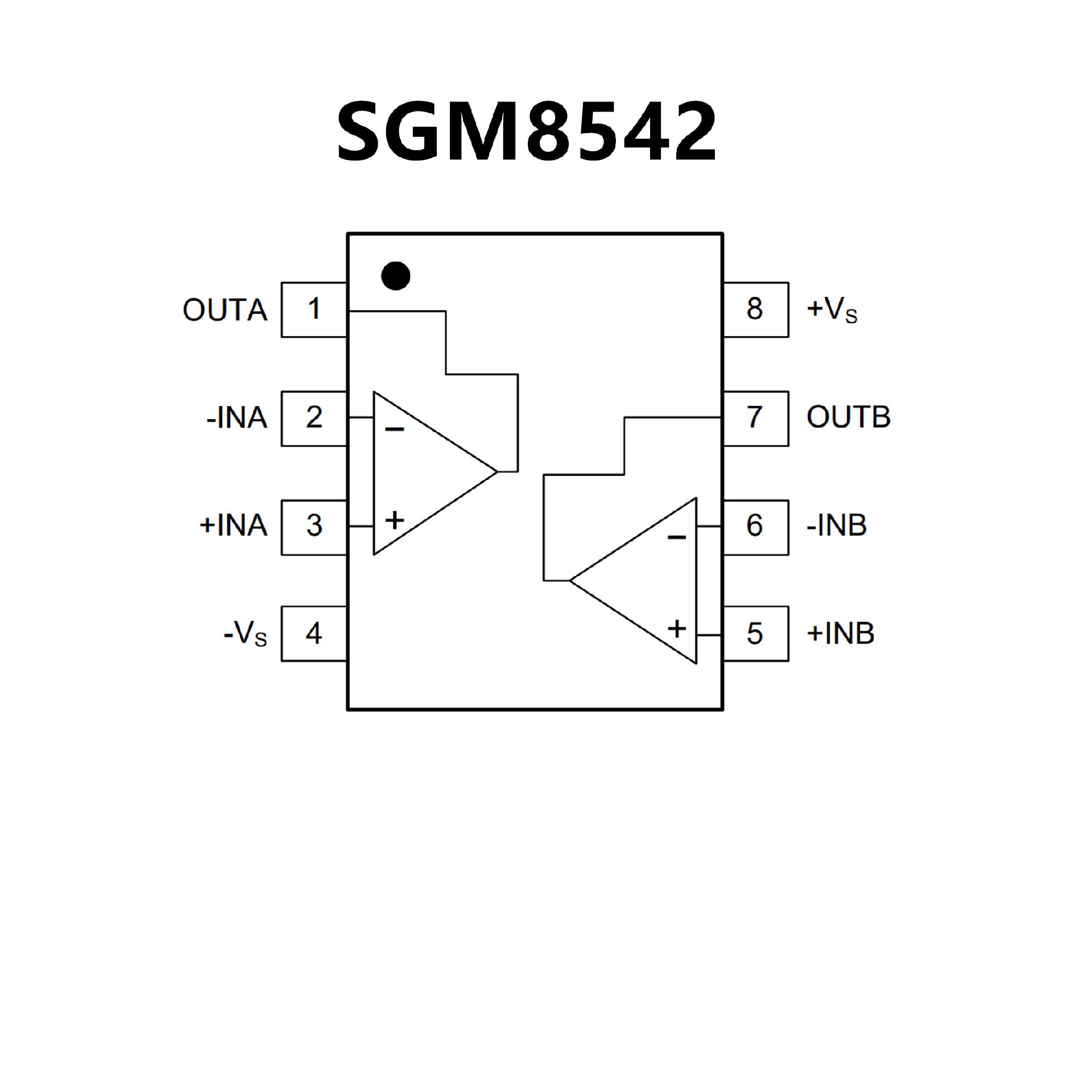

SGM8542.pdf? Low Cost
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range:
-0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:
SGM8541 Available in Green SOIC-8,
SC70-5and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8,
MSOP-8and TSSOP-8 Packages
SGM8544 Available in Green
SOIC-14 andTSSOP-14 Packages

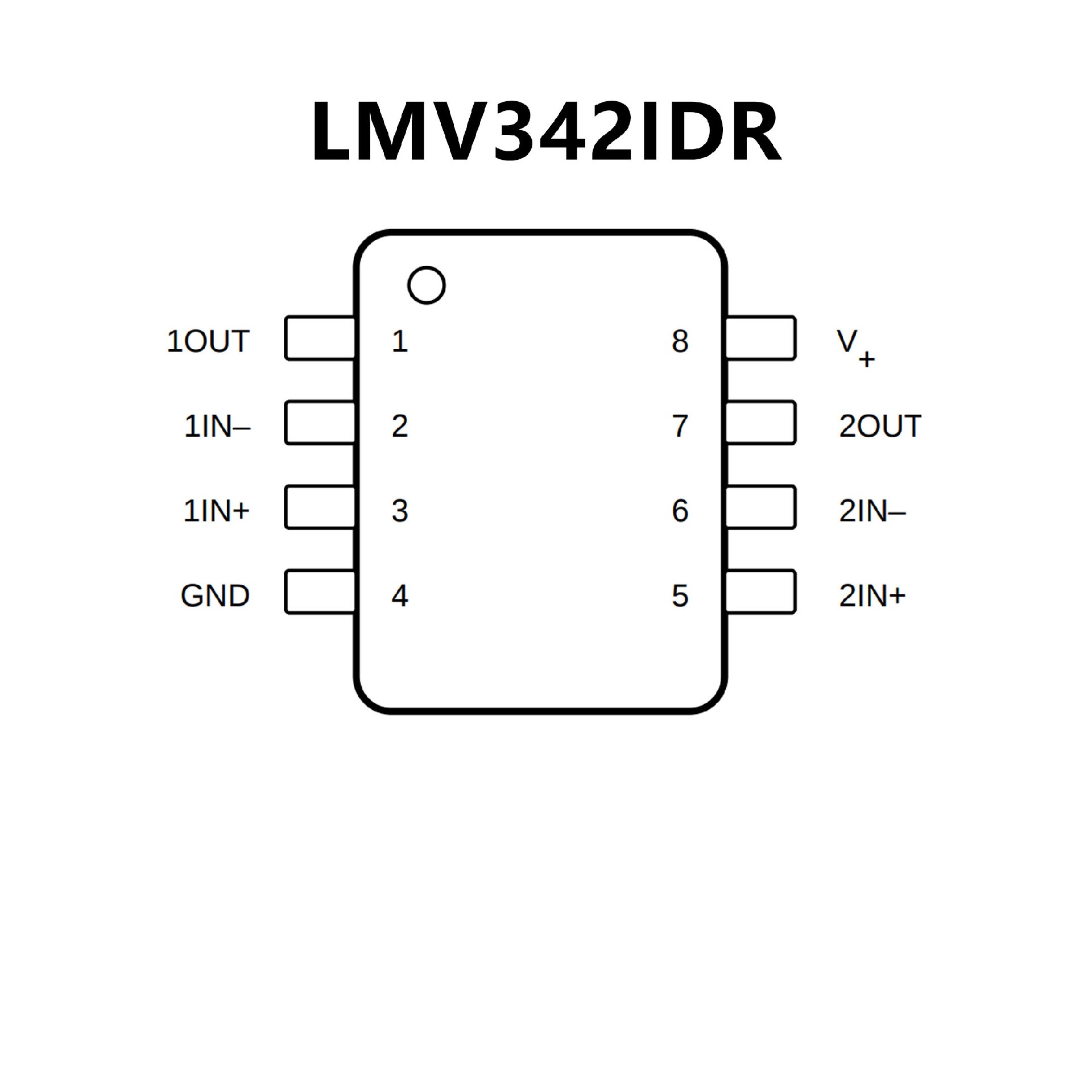

? 2.7-V and 5-V Performance
? Rail-to-Rail Output Swing
? Input Bias Current:1 pA (Typical)
? Input Offset Voltage: 0.25 mV (Typical)
? Low Supply Current: 100 μA (Typical)
? Low Shutdown Current: 45 pA (Typical)
? Gain Bandwidth of 1 MHz (Typical)
? Slew Rate: 1 V/μs (Typical)
? Turnon Time From Shutdown: 5 μs (Typical)
? Input Referred Voltage Noise (at 10 kHz):20 nV/√Hz
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (HBM)
750-V Charged-device model (CDM)
