SGM8544.pdf? Low Cost
? Rail-to-Rail Input and Output 0.8mV Typical VOS
? Unity Gain Stable
? Gain-Bandwidth Product: 1.1MHz
? Very Low Input Bias Current: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 46μA/Amplifier
? Small Packaging:
SGM8541 Available in Green SOIC-8,
SC70-5 and SOT-23-5 Packages
SGM8542 Available in Green SOIC-8,
MSOP-8 and TSSOP-8 Packages

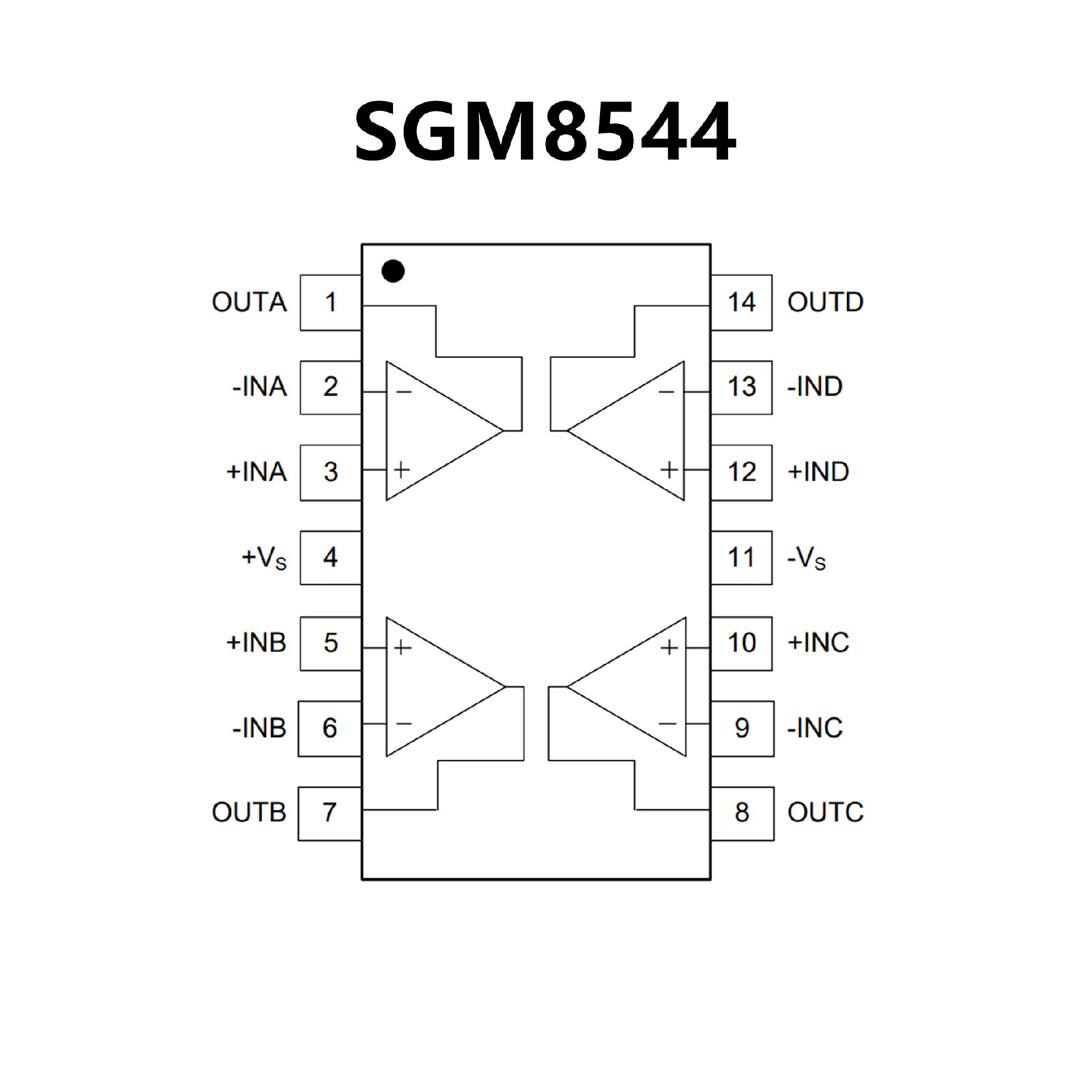

SGM8544 Available in Green
SOIC-14 and TSSOP-14 Packages
? 2.7-V and 5-V Performance
? ?40°C to 125°C Specification at 5 V
? No Crossover Distortion
? Gain Bandwith of 152 kHz
? Low Supply Current
LPV321 . . . 9 μA
LPV358 . . . 15 μA

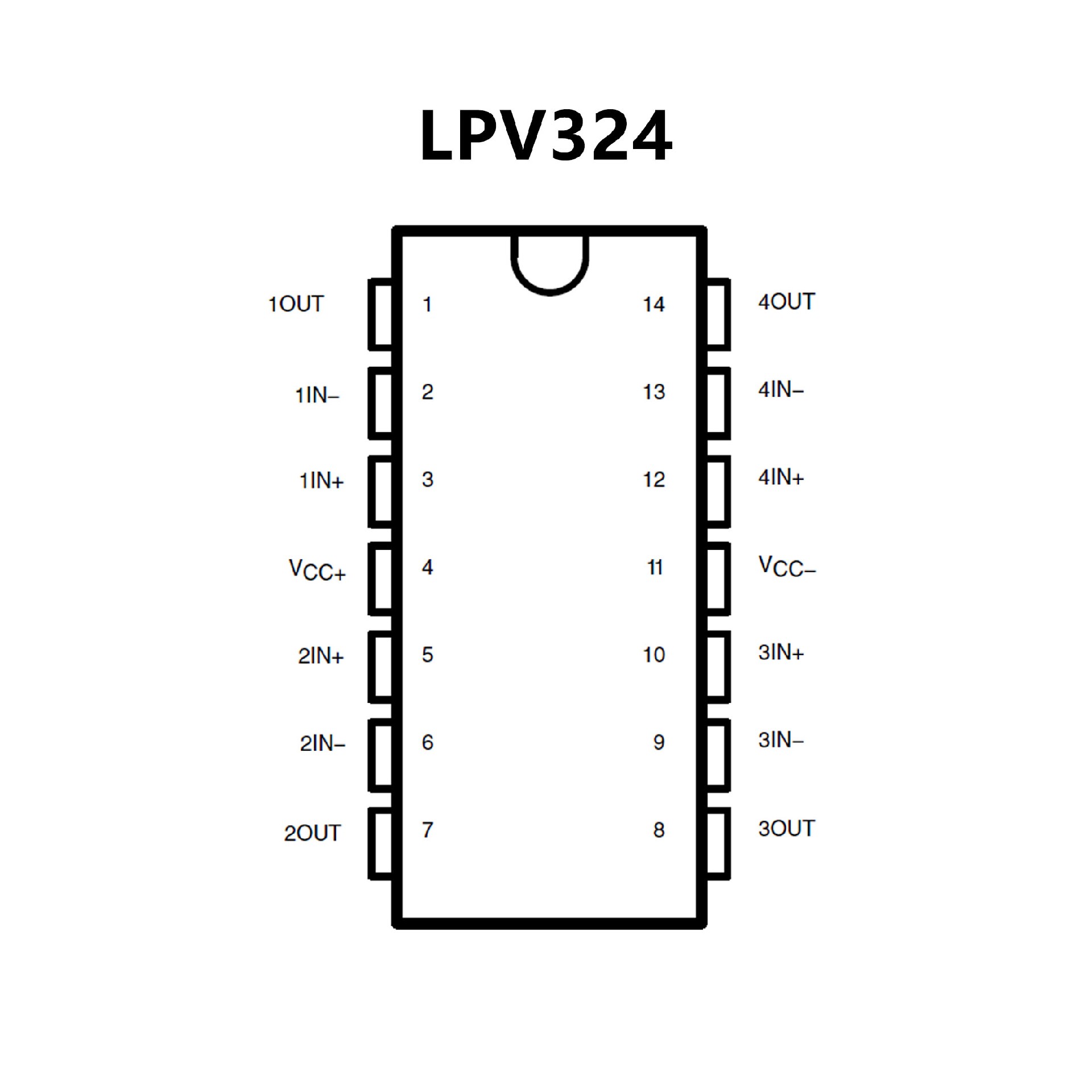

LPV324 . . . 28 μA
? Rail-to-Rail Output Swing at 100-kΩ Load
VCC+ ? 3.5 mV
VCC? + 90 mV
? VICR . . . ?0.2 V to VCC+ ? 0.8 V
? Stable With Capacitive Load of 1000 pF
? Applications
Active Filters
General-Purpose, Low-Voltage
Applications
Low-Power and/or Portable Applications
? Latch-Up Performance Exceeds
100 mA per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
