High precision Operational Amplifier, SGM8552 Replace AD8552.
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
? Low Offset Voltage: 4μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930μA (TYP)
? Overload Recovery Time: 60μs (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

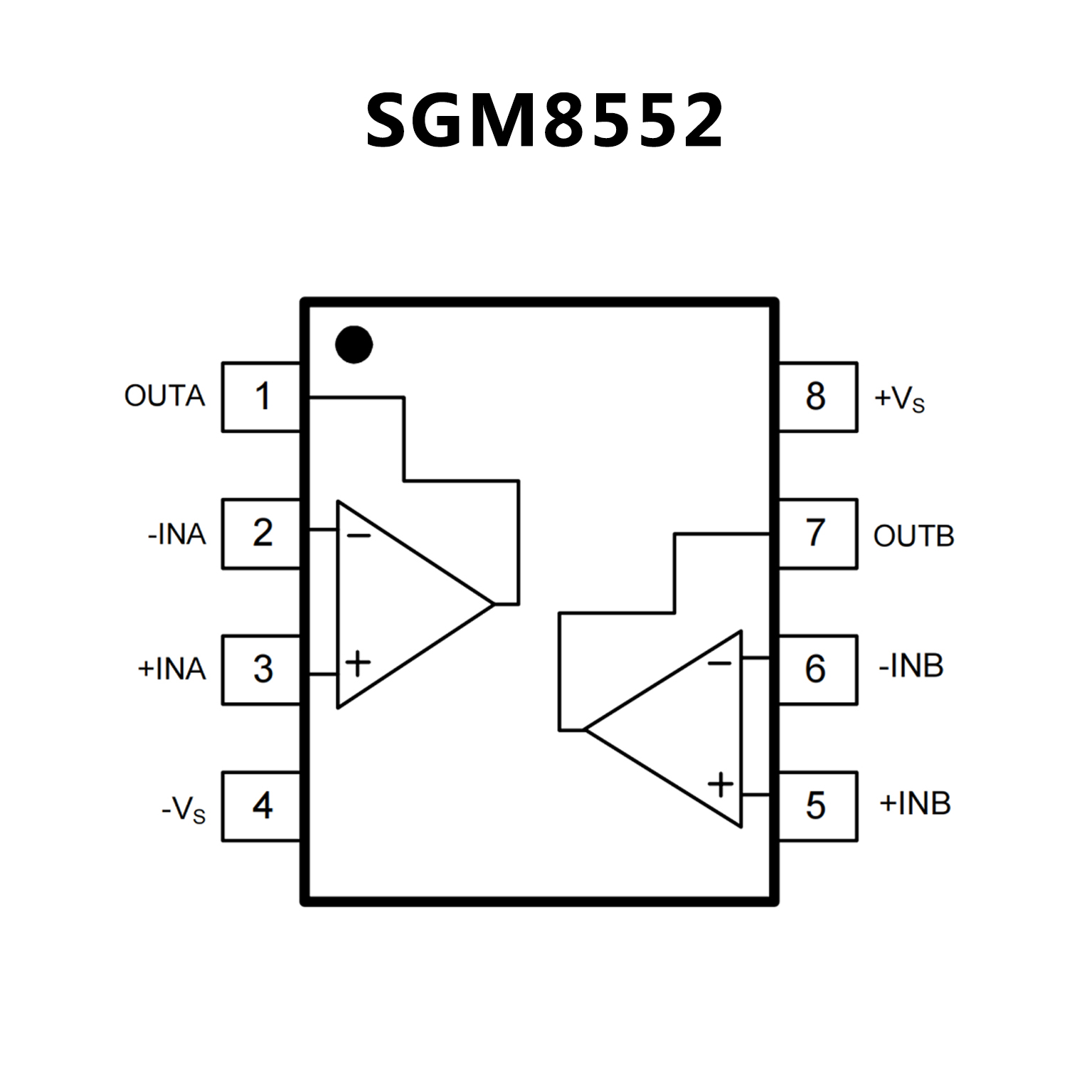

PIN CONFIGUTION
優勢替代
FEATURES
? Low offset voltage: 1 μV
? Input offset drift: 0.005 μV/°C
? Rail-to-rail input and output swing
? 5 V/2.7 V single-supply operation
? High gain, CMRR, PSRR: 130 dB
? Ultralow input bias current: 20 pA
? Low supply current: 700 μA/op amp
? Overload recovery time: 50 μs
? No external capacitors required

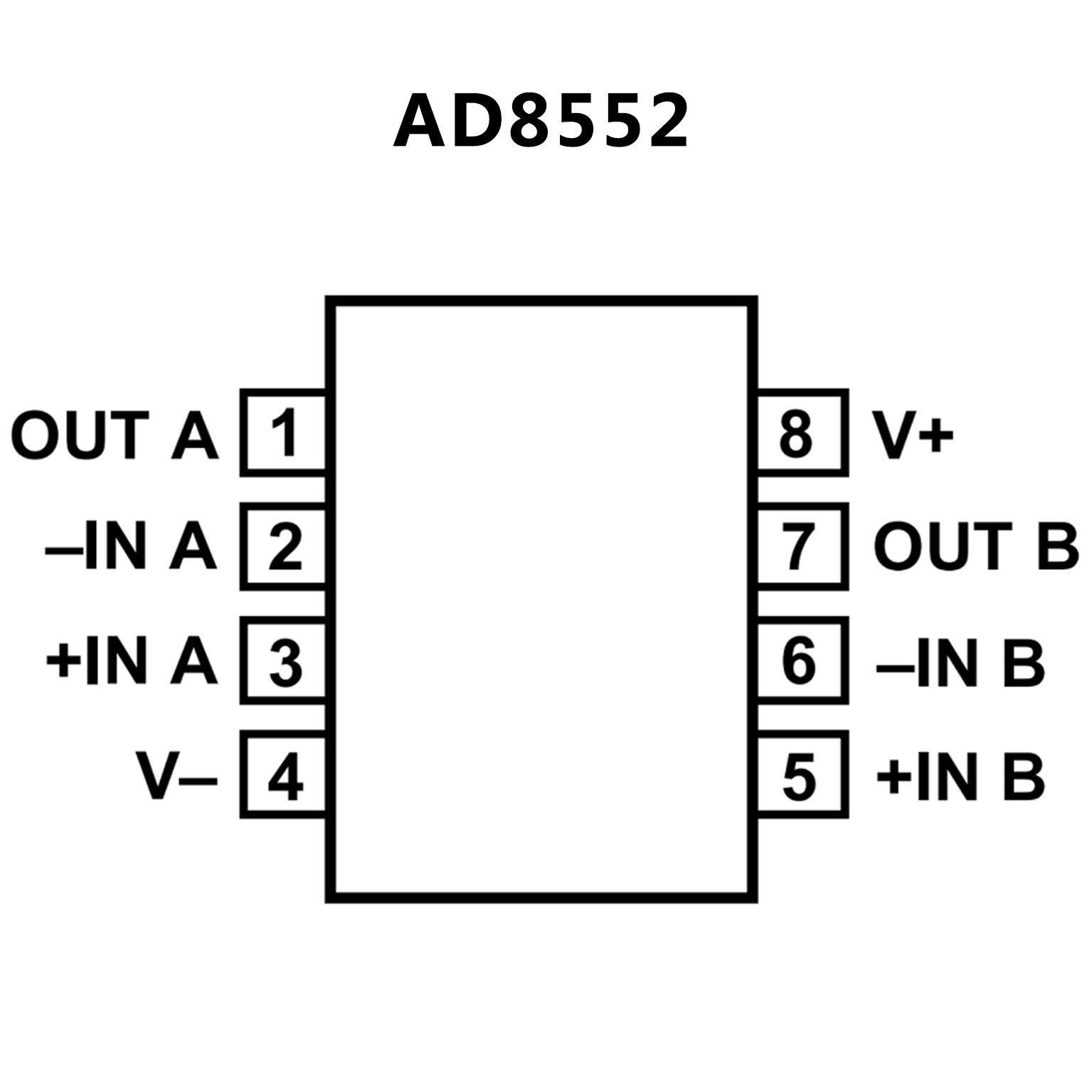

PIN CONFIGUTION
