SGM8555.pdf? Low Noise Density: 21nV/ Hz at 1kHz
? Low Voltage Noise: 0.6μVP-P at 0.1Hz to 10Hz
? Gain-Bandwidth Product: 3.5MHz
? Slew Rate: 3V/μs
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 133dB (TYP) at 5V
? High PSRR: 96dB (TYP)
? High CMRR: 98dB (TYP)
? Ultra Low Input Bias Current: 30pA
? Low Supply Current: 950μA/Amplifier (TYP)
? Overload Recovery Time: 40μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

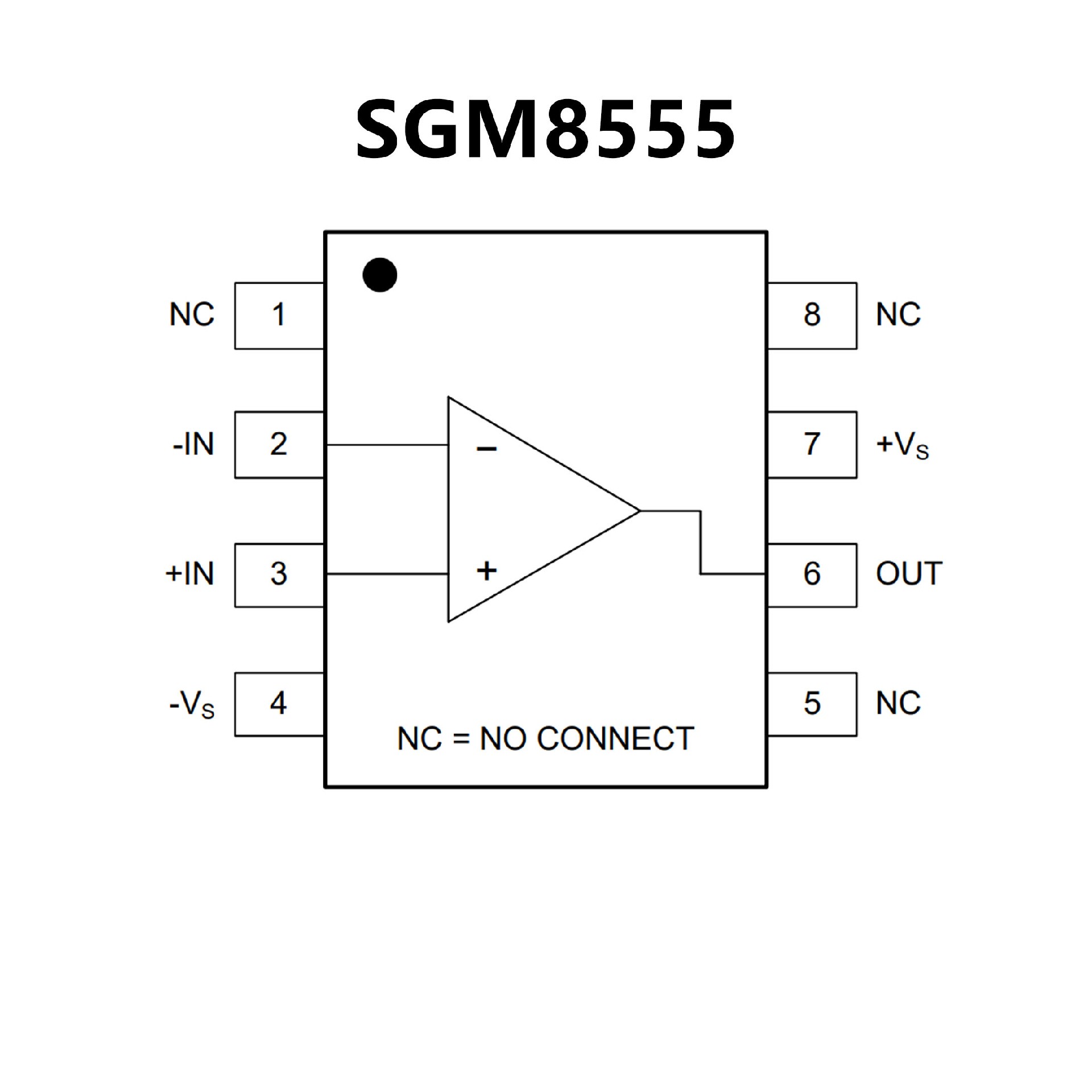

SGM8555 Available in Green SOT-23-5, SOIC-8
and MSOP-8
SGM8556 Available in Green SOIC-8 and MSOP-8

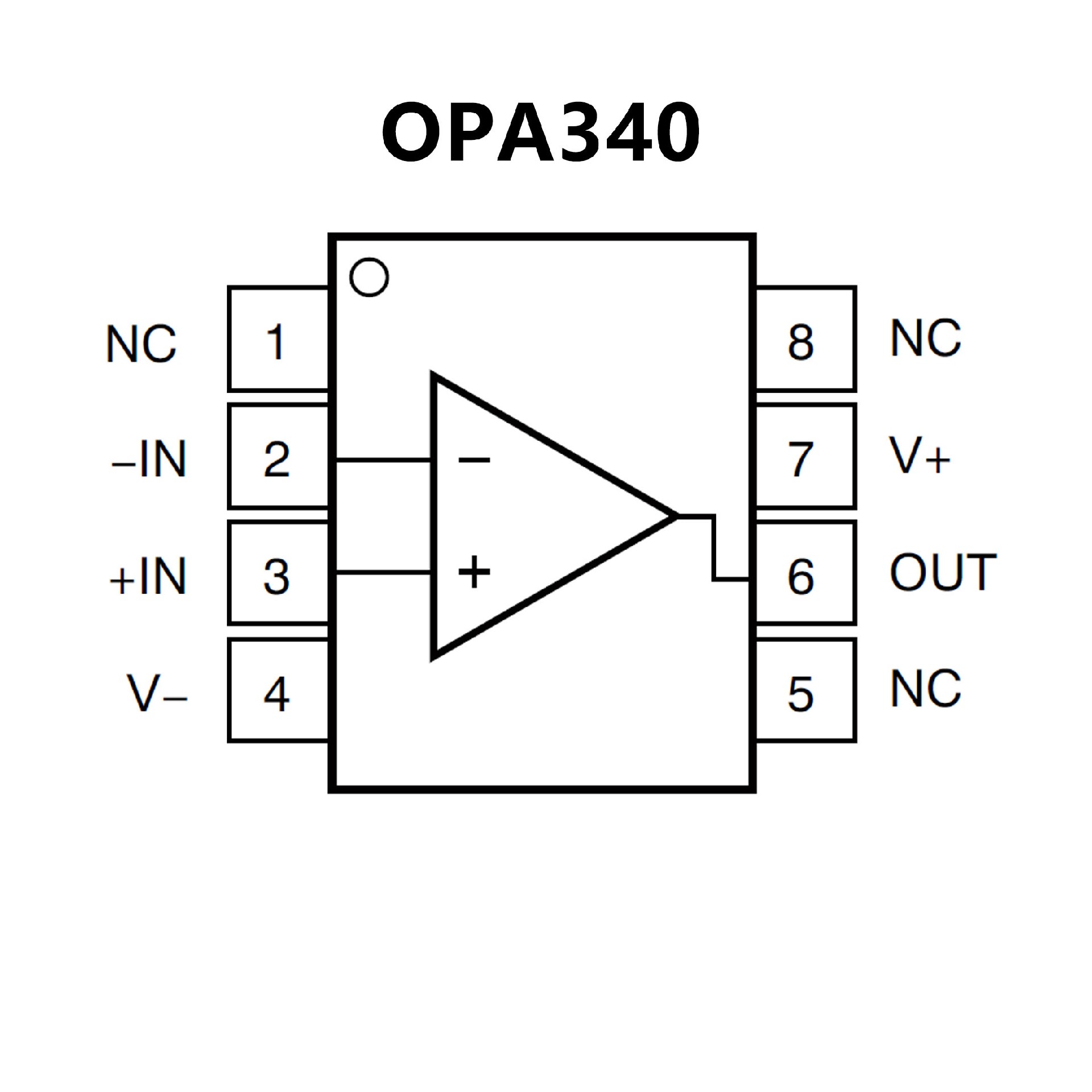

? Rail-to-Rail Input
? Rail-to-Rail Output (Within 1 mV)
? MicroSize Packages
? Wide Bandwidth: 5.5 MHz
? High Slew Rate: 6 V/μs
? Low THD + Noise: 0.0007% (f = 1 kHz)
? Low Quiescent Current: 750 μA/Channel
? Single, Dual, and Quad Versions
