High Precision Operational Amplifier, Replace OPA2377
SGM8556
SGM8556.pdf
SGM8556.pdfFEATURES
? Low 0Hz-10Hz Voltage Noise
? Wide Bandwidth: 4MHz (TYP)
? Low Offset Voltage: 3μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.7V to 5.5V Single Supply Operation
? Voltage Gain: 150dB (TYP)
? PSRR: 115dB (TYP)
? CMRR: 110dB (TYP)
? Low Supply Current: 900μA/per Channel
? Overload Recovery Time: 45μs
? No External Capacitors Required

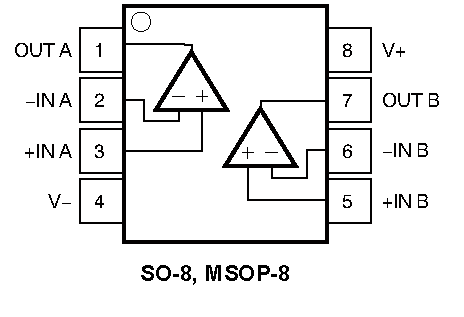

PIN CONFIGUTION
優勢替代
FEATURES
? GAIN BANDWIDTH PRODUCT: 5.5MHz
? LOW NOISE: 7.5nV/√Hz at 1kHz
? OFFSET VOLTAGE: 1mV (max)
? INPUT BIAS CURRENT: 0.2pA
? RAIL-TO-RAIL OUTPUT
? UNITY-GAIN STABLE
? EMI INPUT FILTERING
? QUIESCENT CURRENT: 0.76mA/ch
? SUPPLY VOLTAGE: 2.2V to 5.5V

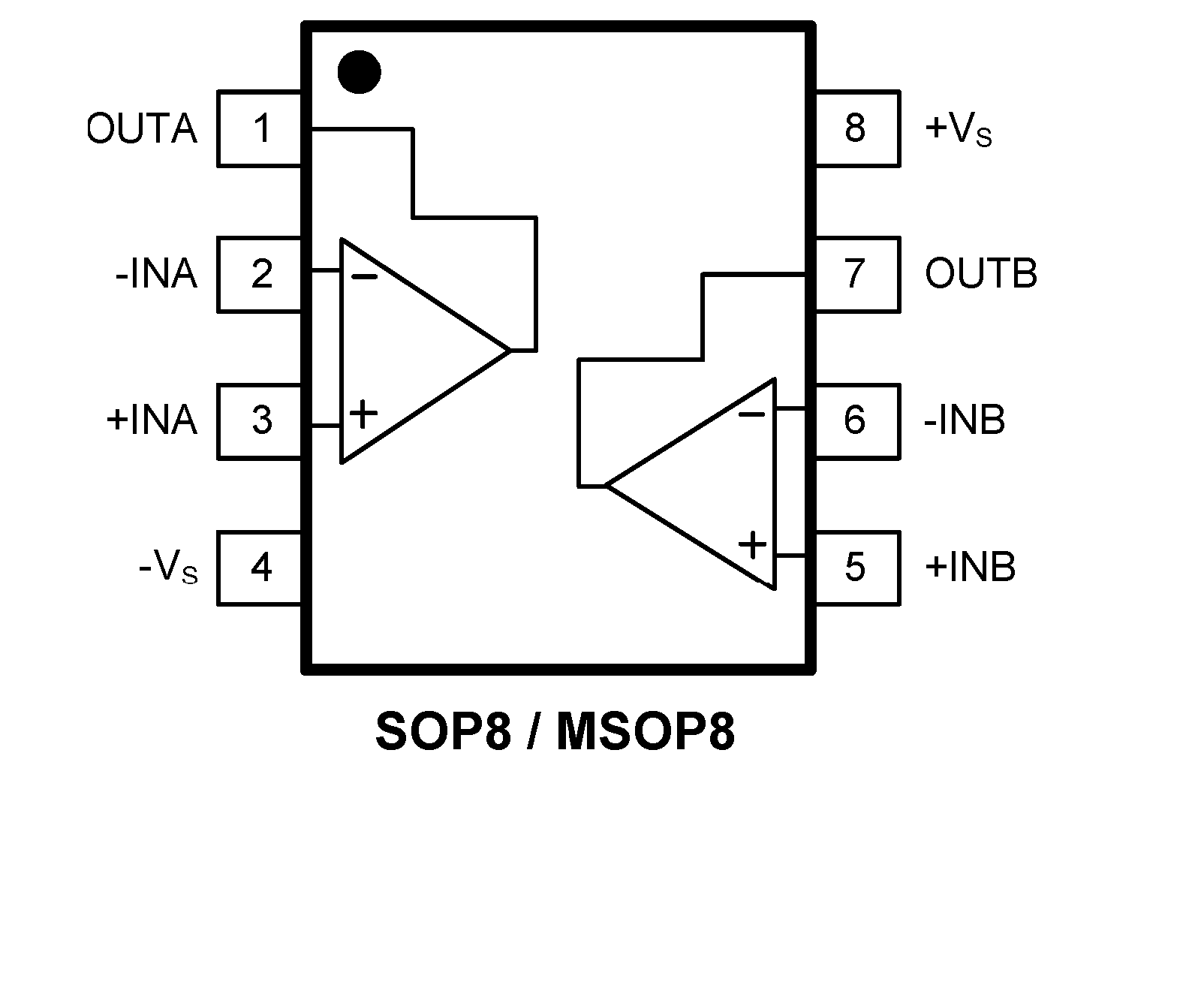

PIN CONFIGUTION
