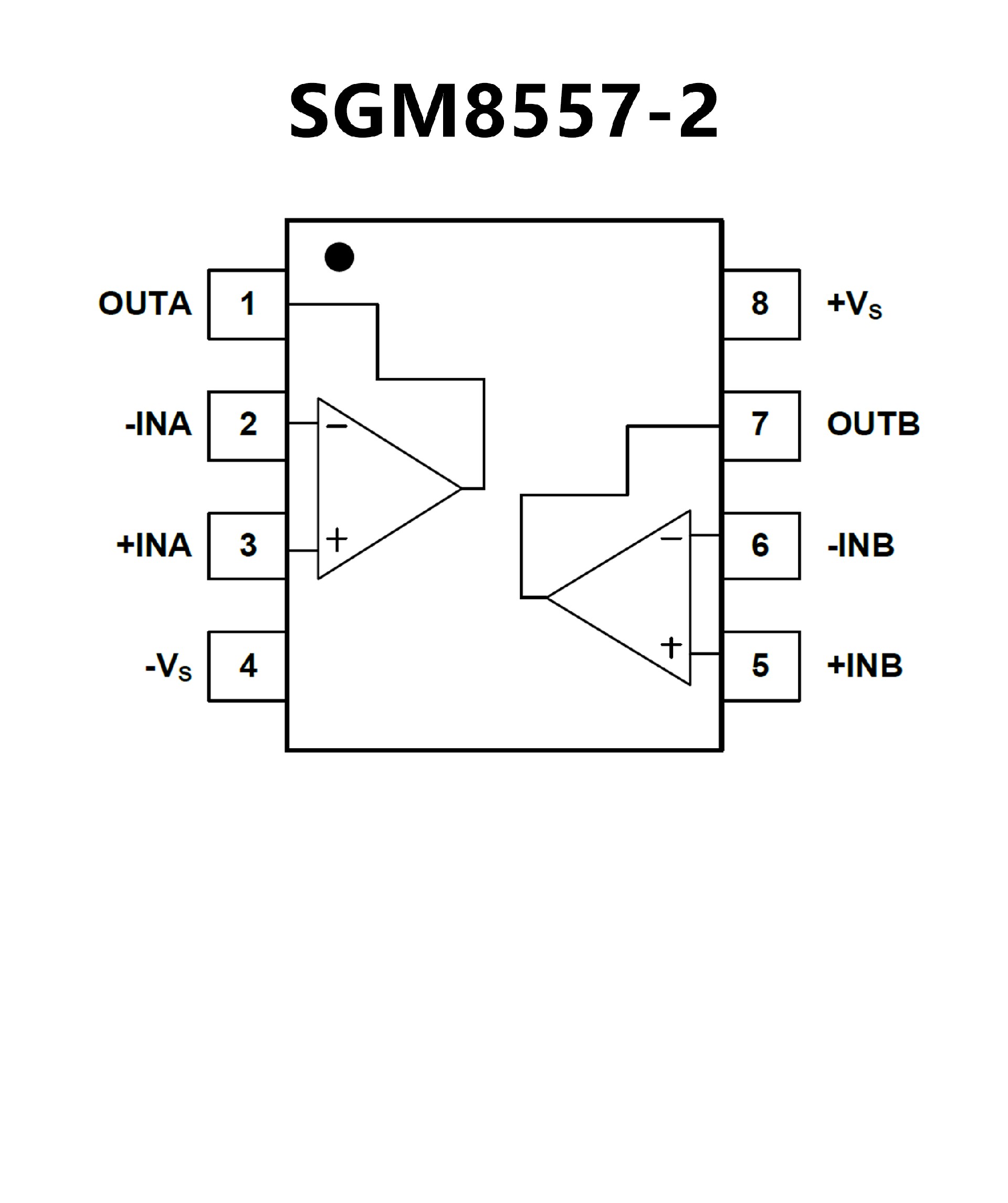

SGM8557-2XMS8G.pdf? Output Drive Capability: 235mA
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 20nV/℃ (TYP)
? Low Noise: 30nV/√Hz at 1kHz
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? High Open-Loop Gain (RL = 2kΩ): 135dB
? Power Supply Rejection Ratio: 121dB
? Over-Temperature Protection
? No Phase Reversal for Overdriven Inputs
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Current: 2.4mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green MSOP-8 Package

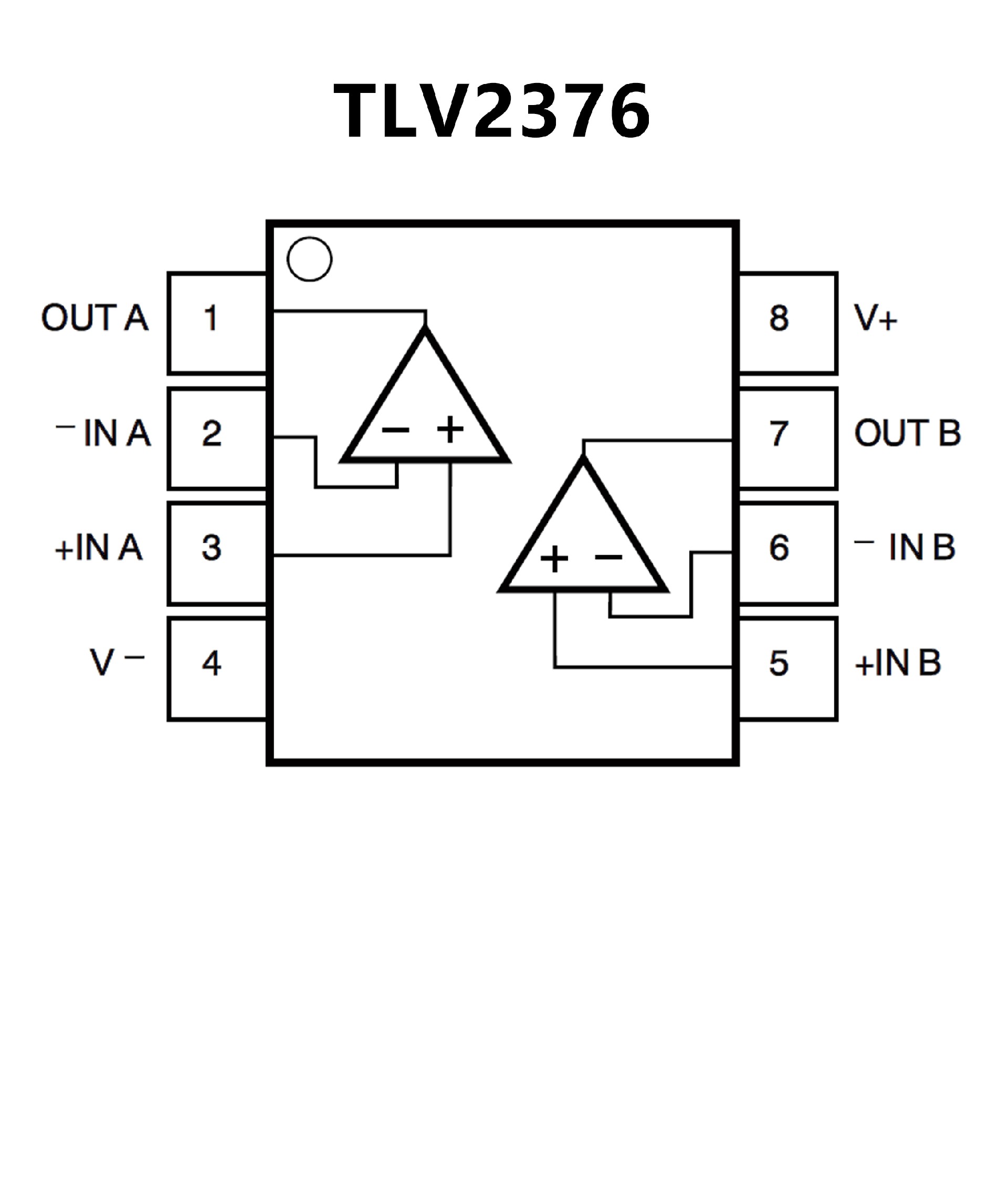

? Low Noise: 8 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 1.6 μVPP
? Quiescent Current: 815 μA (typical)
? Low Offset Voltage (typical):
Single and Dual Versions: 40 μV
Quad Version: 50 μV
? Gain Bandwidth Product: 5.5 MHz
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2 V to 5.5 V
? Industry-Standard Packages:
SOT-23, SOIC, VSSOP, TSSOP
