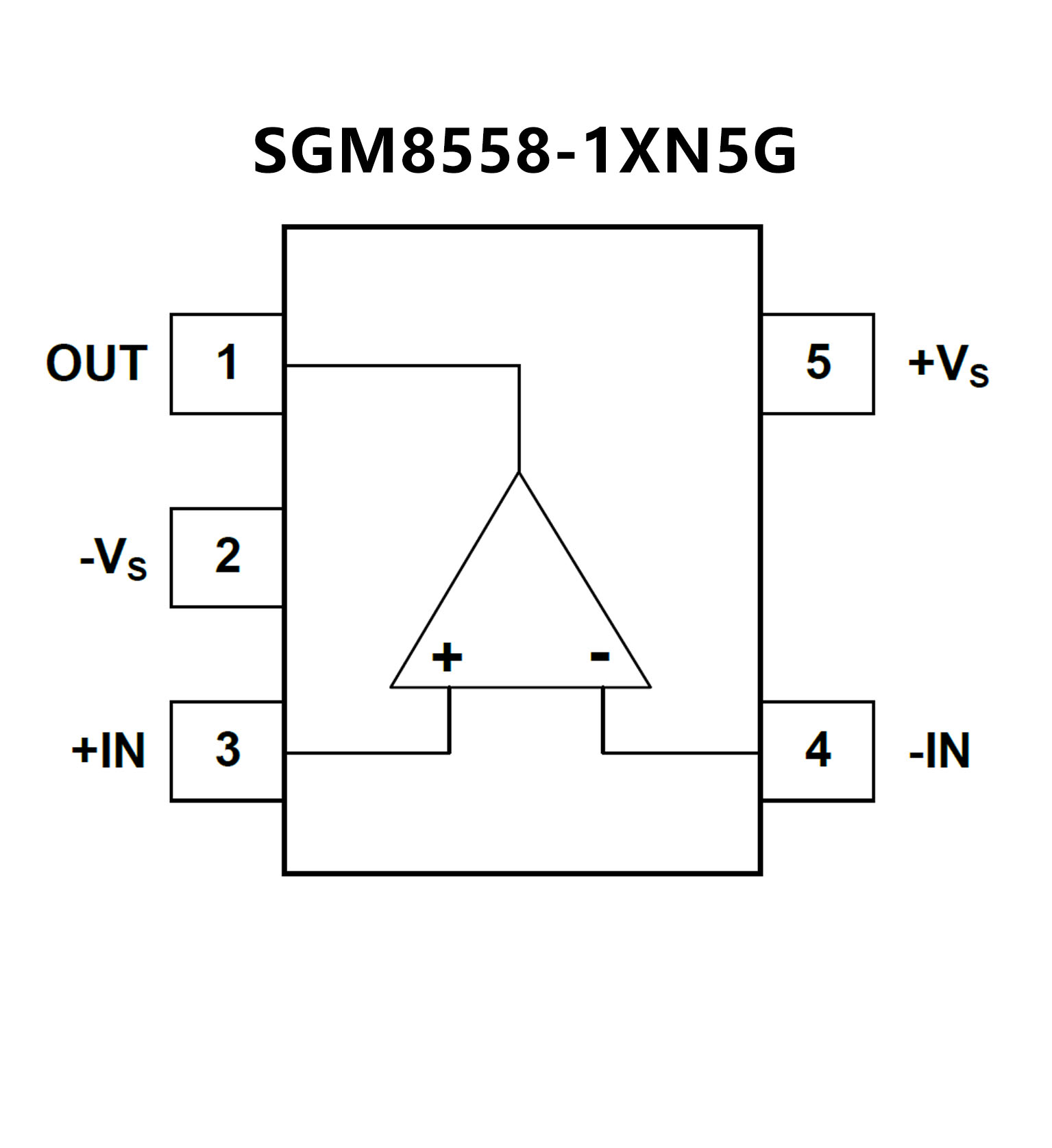

SGM8558-1.pdf? 230mA Output Drive Capability
? Low Input Offset Voltage: 15μV (MAX)
? Low Noise: 8nV/ Hz at 1kHz
? 230mA Current Limitation
? Over-Temperature Protection
? Supply Voltage Range: 2.8V to 5.5V
? Supply Current:0.86mA/Amplifier (TYP)
0.2μA (TYP) Shutdown Current for SGM8558-3
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 8V/μs
? Voltage Gain (RL = 2kΩ): 139dB
? Power Supply Rejection Ratio: 130dB
? No Phase Reversal for Overdriven Inputs
? Unity-Gain Stable for Capacitive Loads to 780pF
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:SGM8558-1 Available in Green
SOIC-8 andSOT-23-5 PackagesSGM8558-2 Available
in Green TDFN-3×3-8Land SOIC-8 Packages
SGM8558-3 Available in a Green SOT-23-6 Package
SGM8558-4 Available in a Green SOIC-14 Package

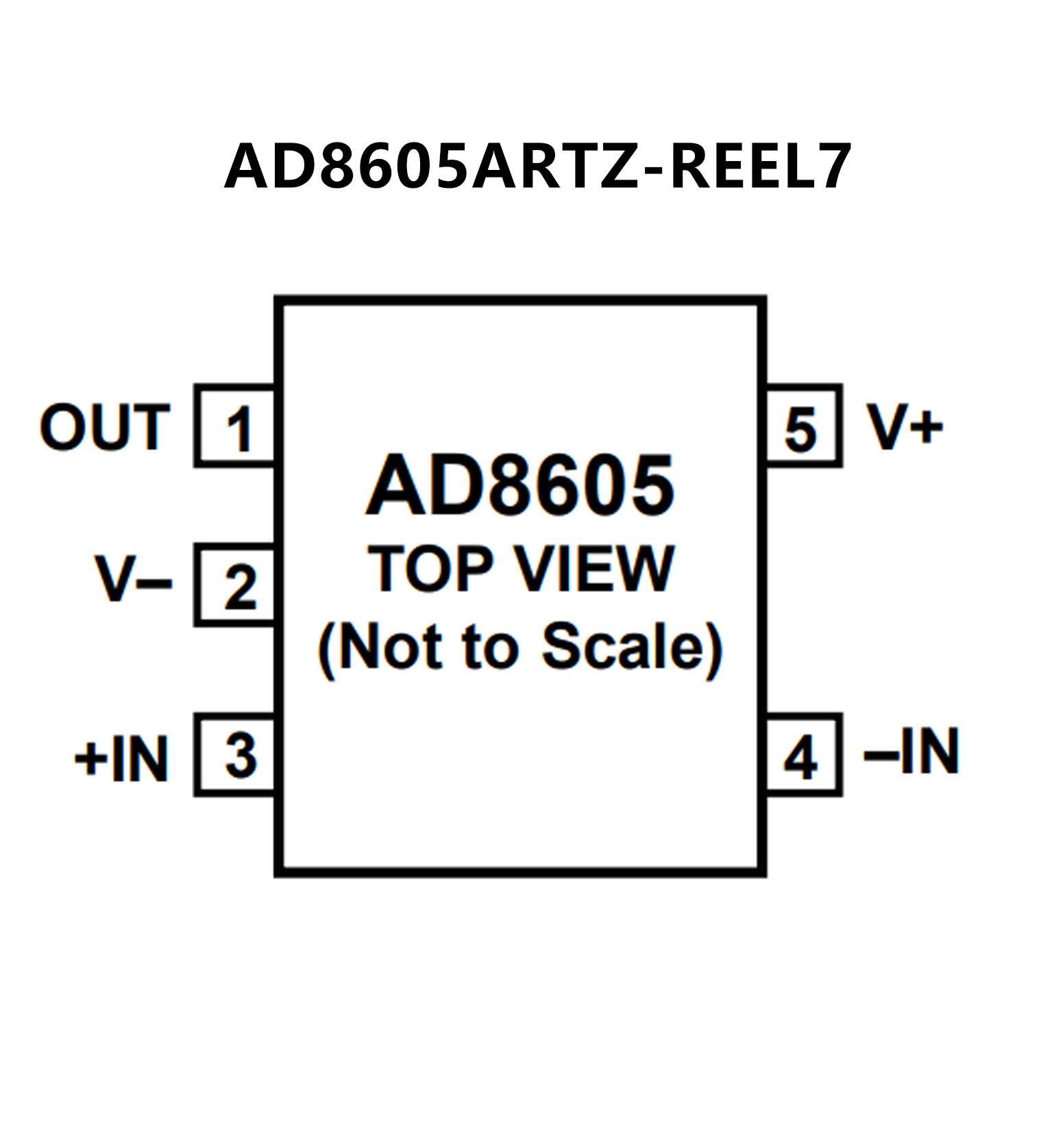

? Low offset voltage: 65 μV maximum
? Low input bias currents: 1 pA maximum
? Low noise: 8 nV/√Hz
? Wide bandwidth: 10 MHz High
? open-loop gain: 1000 V/mV U
? nity gain stable
? Single-supply operation: 2.7 V to 5.5 V
? 5-ball WLCSP for single (AD8605) and
? 8-ball WLCSP for dual (AD8606)
