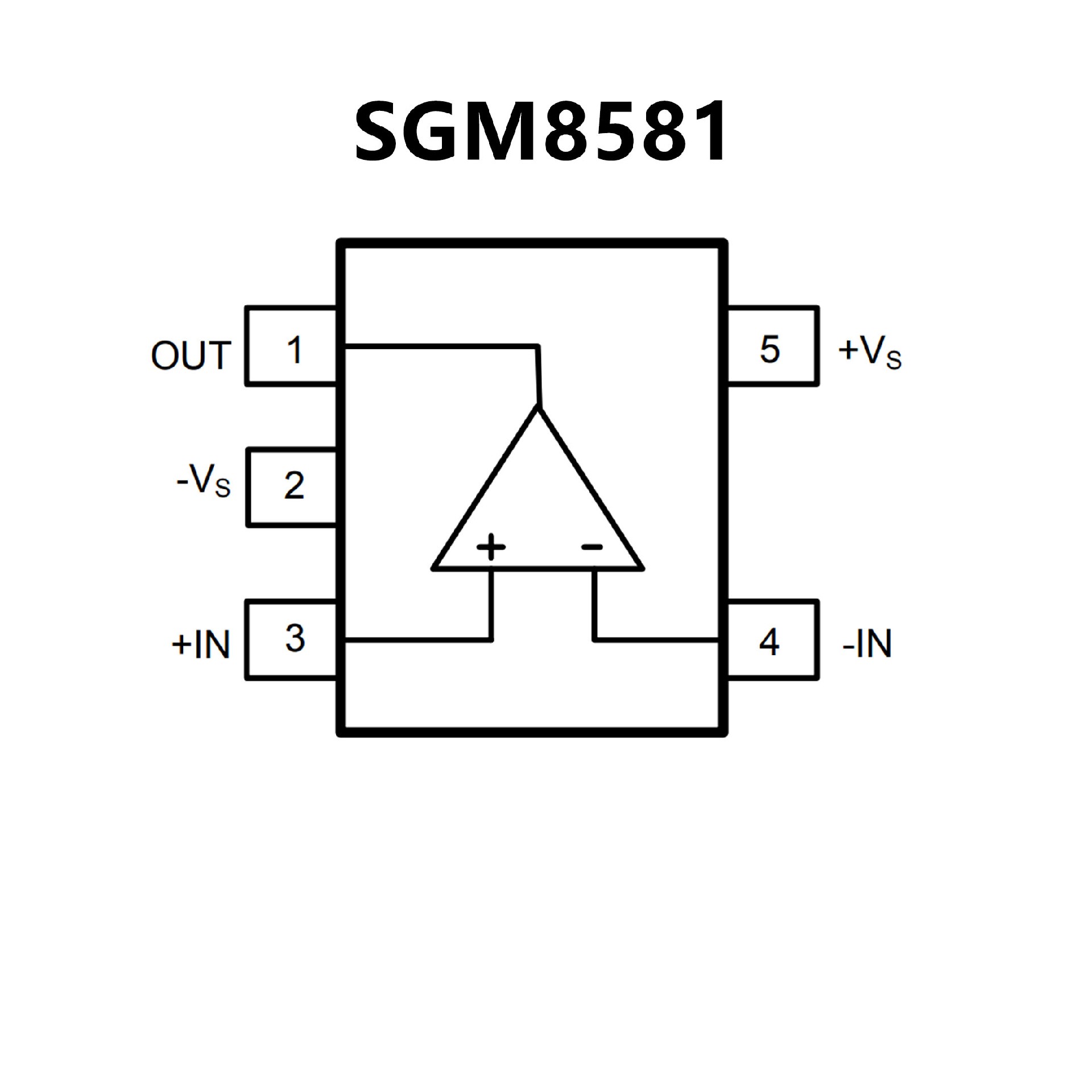

SGM8581.pdf? Low Offset Voltage: 25μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 120dB (TYP)
? CMRR: 90dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 445μA at +5V
? Overload Recovery Time: 70μs (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
? Supply Current 150μA (Max per Amplifi er)
Guaranteed from –40°C to 85°C
? Offset Voltage 3μV (Max, –40°C to 85°C)
? Offset Voltage Drift 30nV/°C (Max, –40°C to 85°C)
? Guaranteed Specifi cations

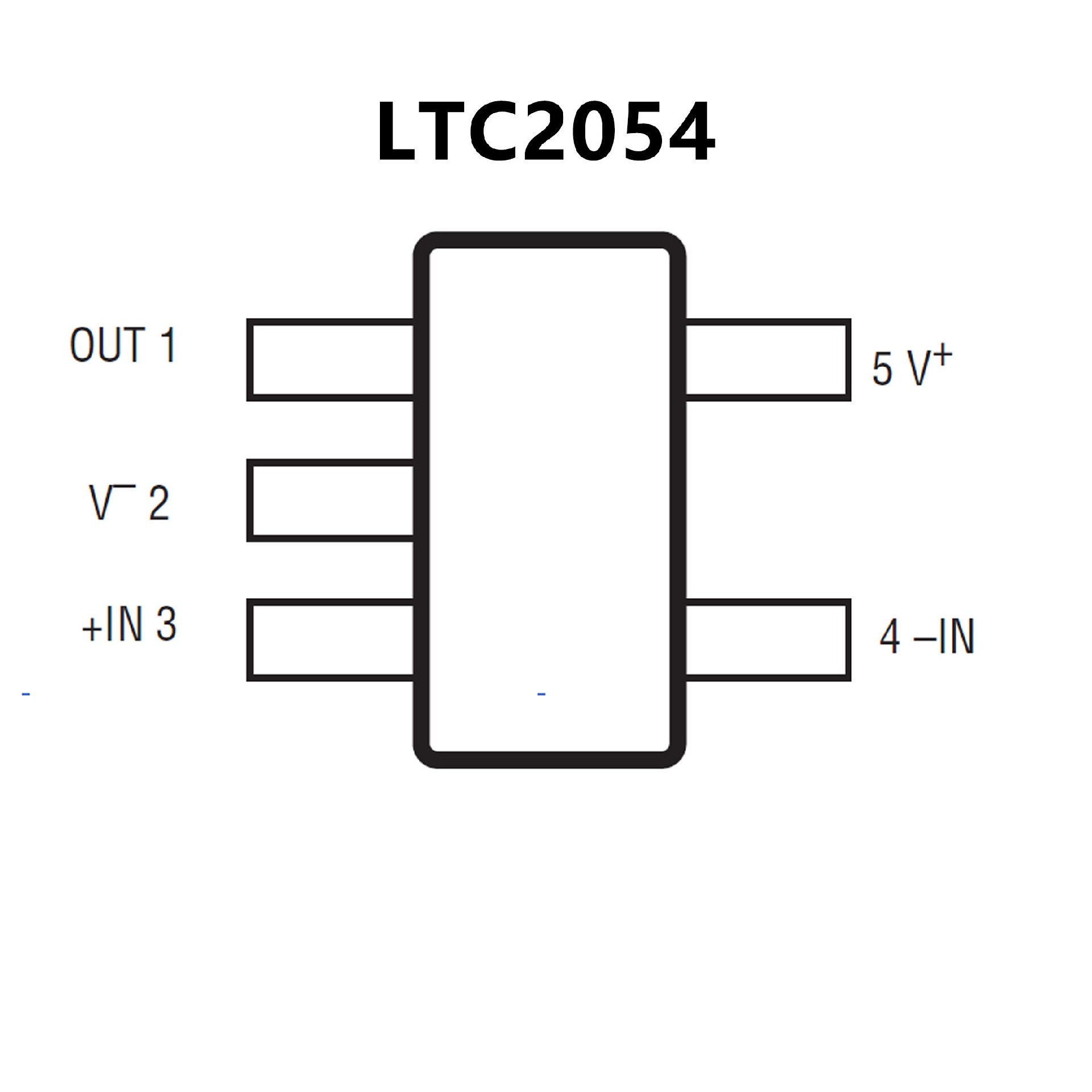

from –55°C to 150°C (LTC2054MP)
? Common Mode Input Range
from V– to V+ – 0.5V
? Output Swings Rail-to-Rail
? Voltage Gain: 140dB (Typ)
? PSRR and CMRR: 130dB (Typ)
? Input Bias Current: 1pA (Typ, 25°C)
? Noise: 1.6μVP-P (0.01Hz to 10Hz Typ)
? Supply Operation:
2.7V to 6V (LTC2054/LTC2055)
2.7V to ±5.5V (LTC2054HV/LTC2055HV)
? Low Profi le (1mm) TSOT-23, MS8 and
3mm × 3mm × 0.8mm DFN Packages
