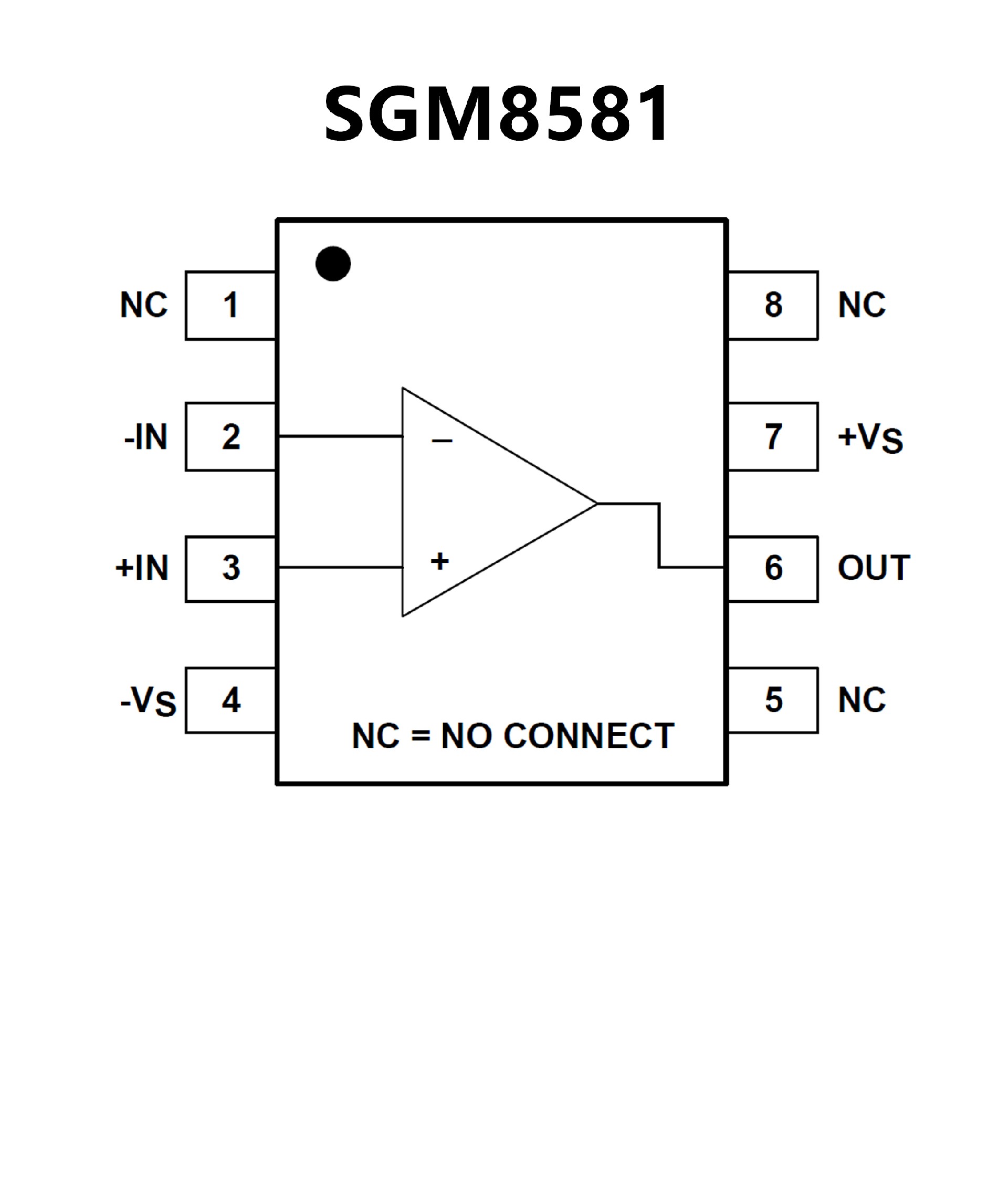

SGM8581XN5G.pdf? Low Offset Voltage: 100μV (MAX)
? Rail-to-Rail Input and Output Swings
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 120dB (TYP)
? CMRR: 90dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 445μA at 5V
? Overload Recovery Time: 70μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

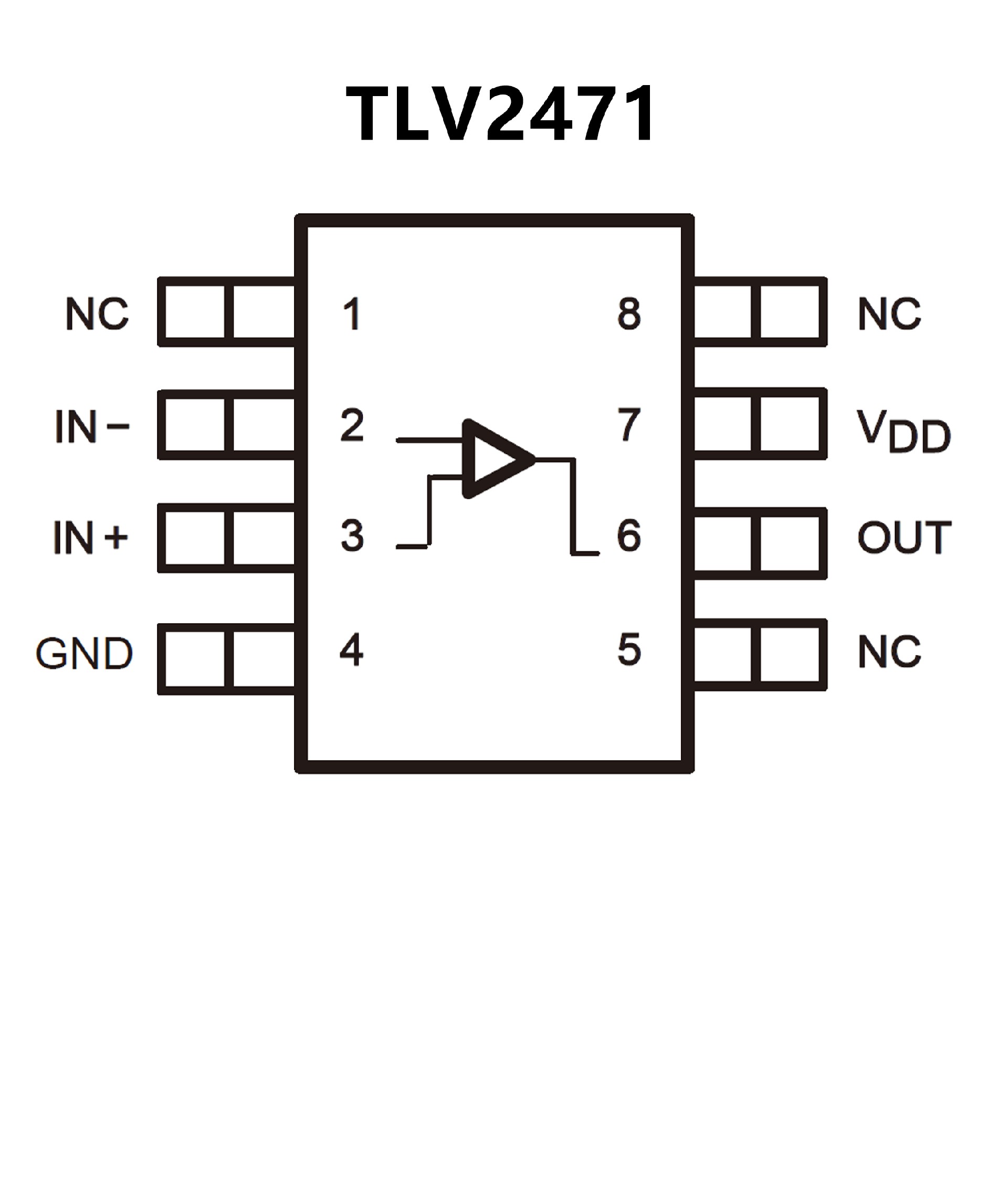

? CMOS Rail-To-Rail Input/Output
? Input Bias Current: 2.5pA
? Low Supply Current: 600μA/Channel
? Ultra-Low Power Shutdown Mode:
IDD(SHDN): 350nA/ch at 3V
IDD(SHDN): 1000nA/ch at 5V
? Gain-Bandwidth Product: 2.8MHz
? High Output Drive Capability:
±10mA at 180mV
±35mA at 500mV
? Input Offset Voltage: 250μV (typ)
? Supply Voltage Range: 2.7V to 6V
? Ultra-Small Packaging
SOT23-5 or -6 (TLV2470/1)
MSOP-8 or -10 (TLV2472/3)
