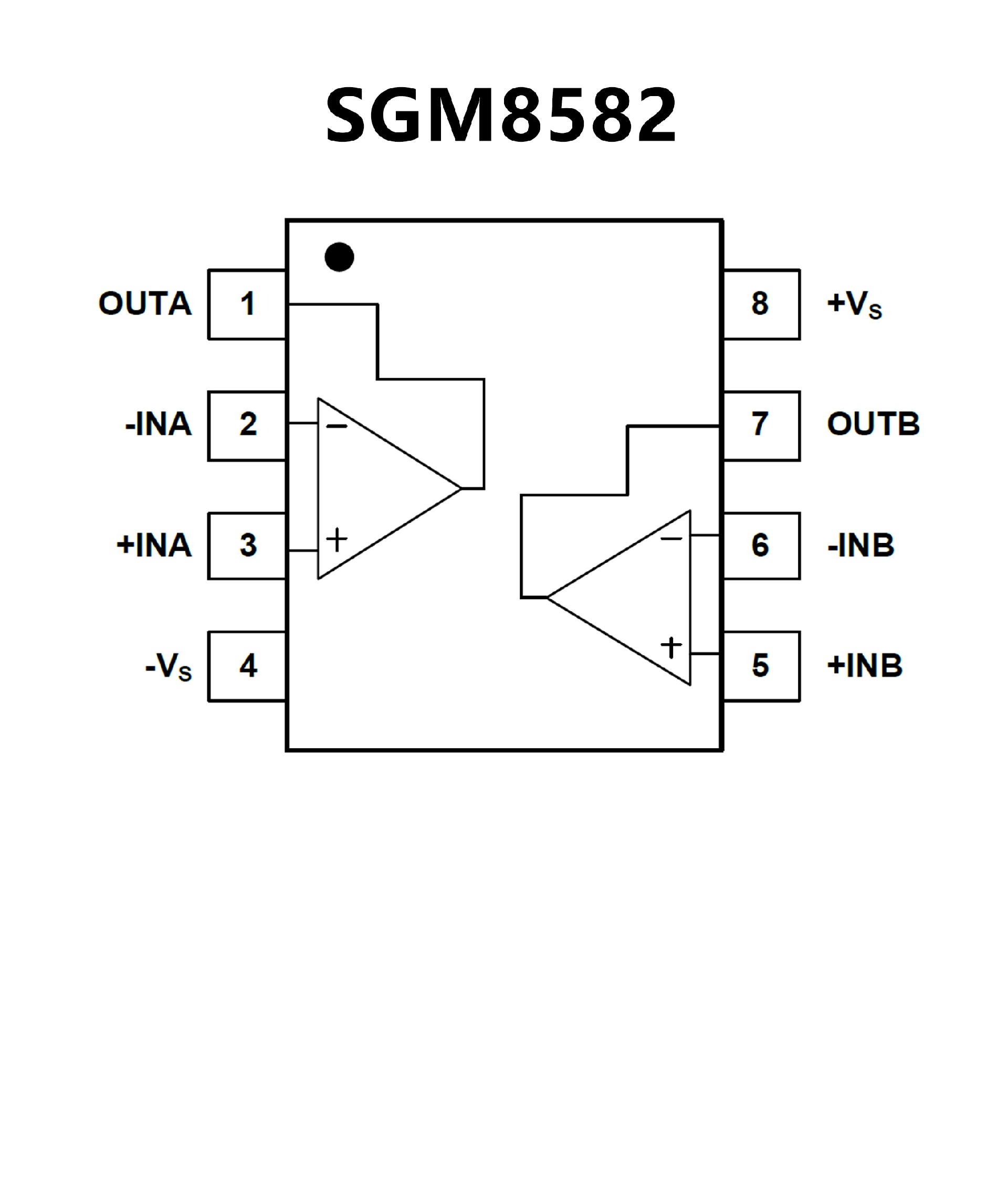

SGM8582XMS8G.pdf? Low Offset Voltage: 100μV (MAX)
? Rail-to-Rail Input and Output Swings
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 125dB (TYP)
? CMRR: 95dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 430μA/Amplifier
? Overload Recovery Time: 70μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

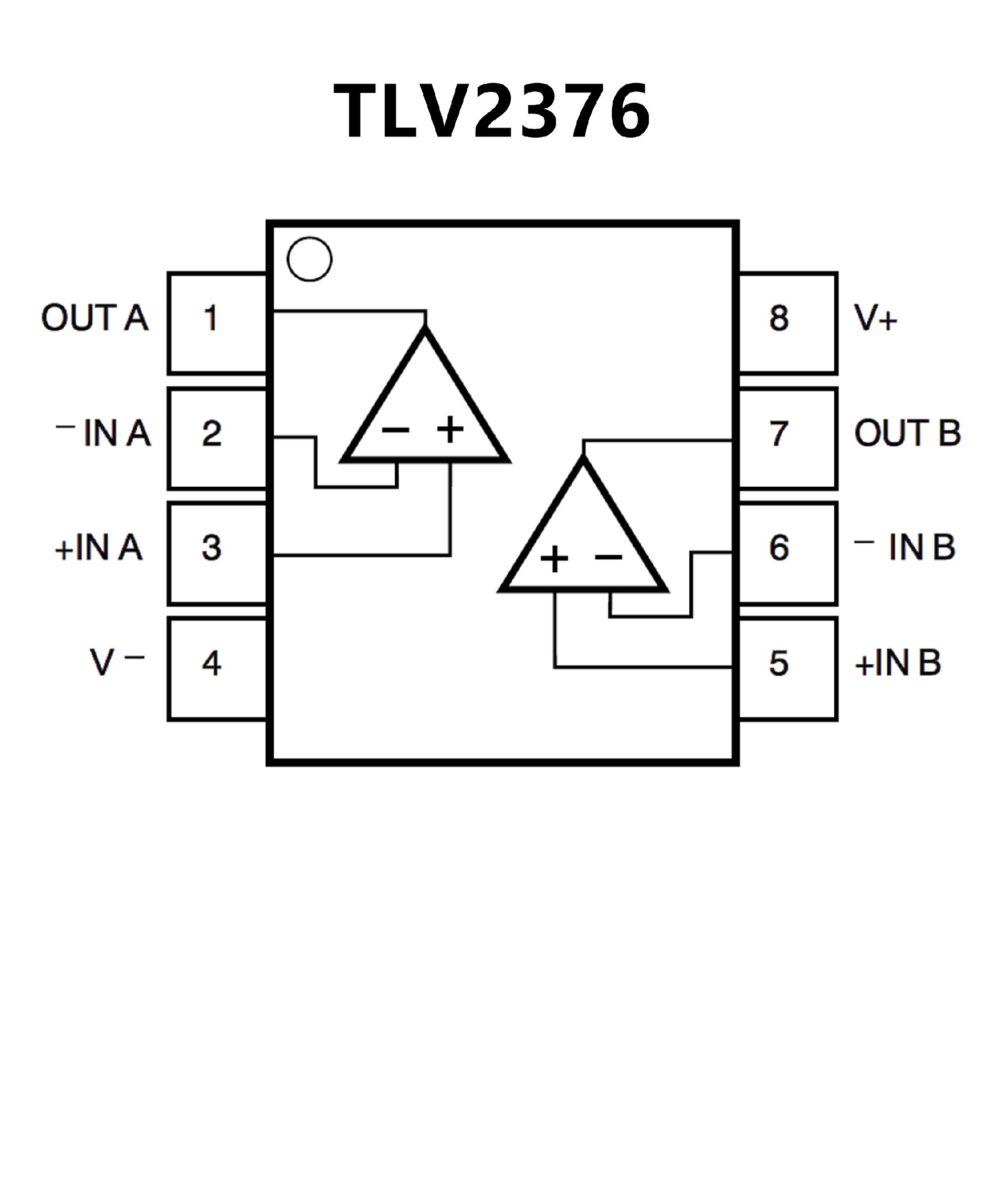

? Low Noise: 8 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 1.6 μVPP
? Quiescent Current: 815 μA (typical)
? Low Offset Voltage (typical):
Single and Dual Versions: 40 μV
Quad Version: 50 μV
? Gain Bandwidth Product: 5.5 MHz
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2 V to 5.5 V
? Industry-Standard Packages:
SOT-23, SOIC, VSSOP, TSSOP
