Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier,SGM8584XS14G Replace TLV4313.
SGM8584XS14G
SGM8584XS14G.pdf
SGM8584XS14G.pdfFEATURES
? Low Offset Voltage: 100μV (MAX)
? Rail-to-Rail Input and Output Swings
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 135dB (TYP) at 5V
? PSRR: 115dB (TYP)
? CMRR: 92dB (TYP)
? Low Input Bias Current: 60pA
? Low Supply Current: 430μA/Amplifier
? Overload Recovery Time: 30μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14
Packages

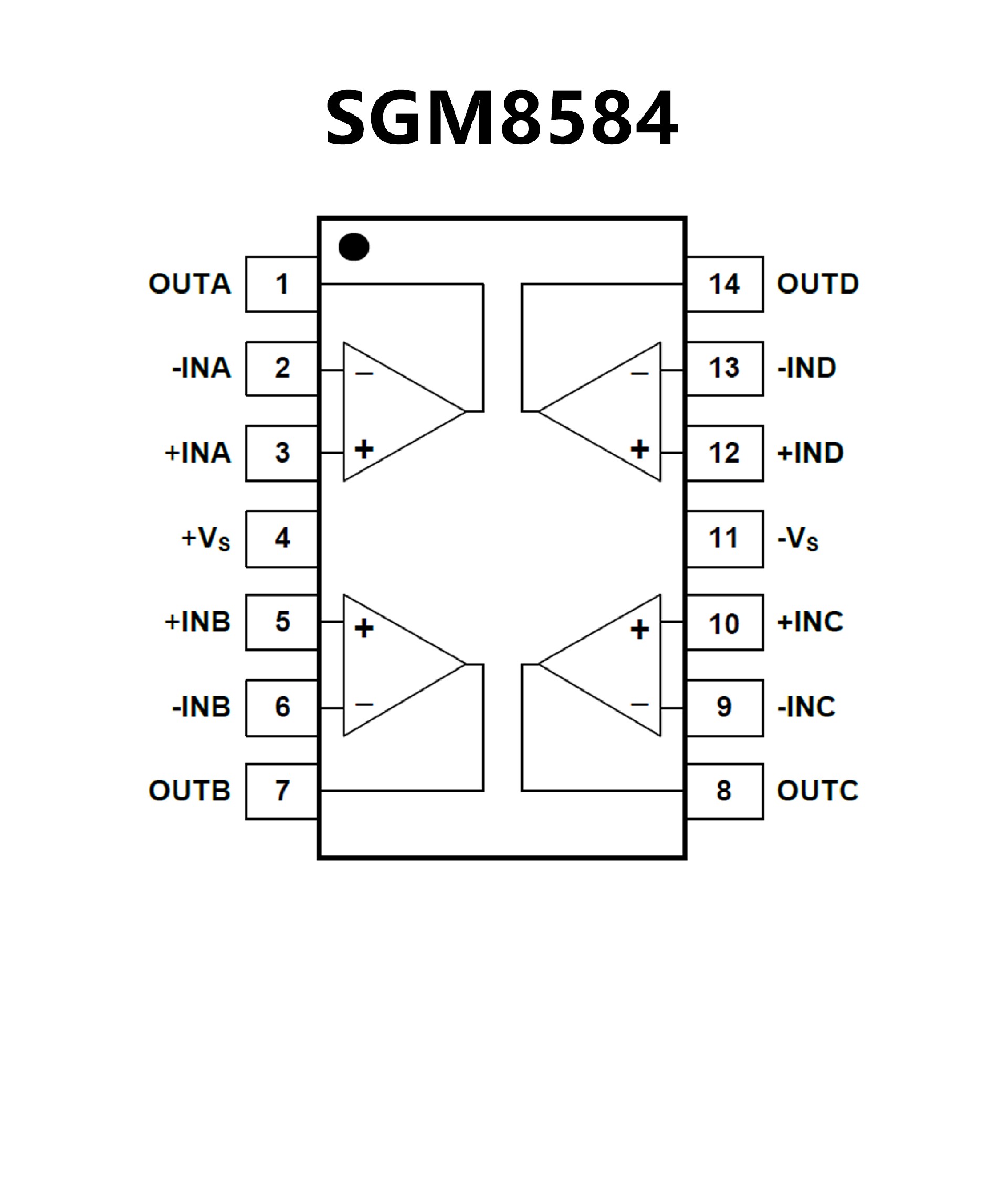

PIN CONFIGUTION
優勢替代
FEATURES
? Precision Amplifier for
Cost-Sensitive Systems
? Low IQ: 65 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 26 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Rail-to-Rail Input/Output
? Low Input Bias Current: 1 pA
? Low Offset Voltage: 0.75 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C

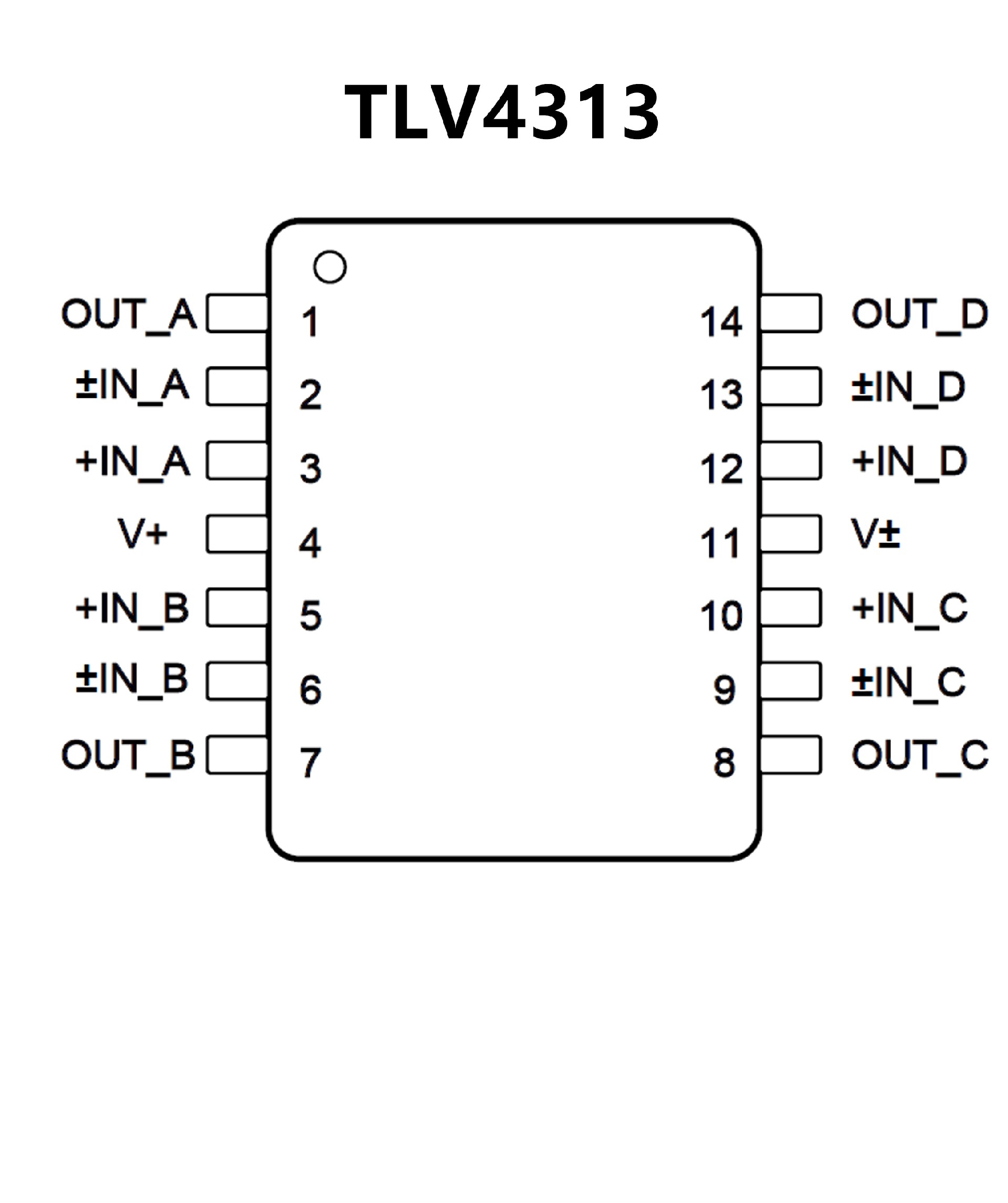

PIN CONFIGUTION
