Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier, SGM8592 Replace TP2412.
SGM8592
SGM8592.pdf
SGM8592.pdfFEATURES
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 125dB (TYP)
? CMRR: 95dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 430μA/Amplifier
? Overload Recovery Time: 70μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

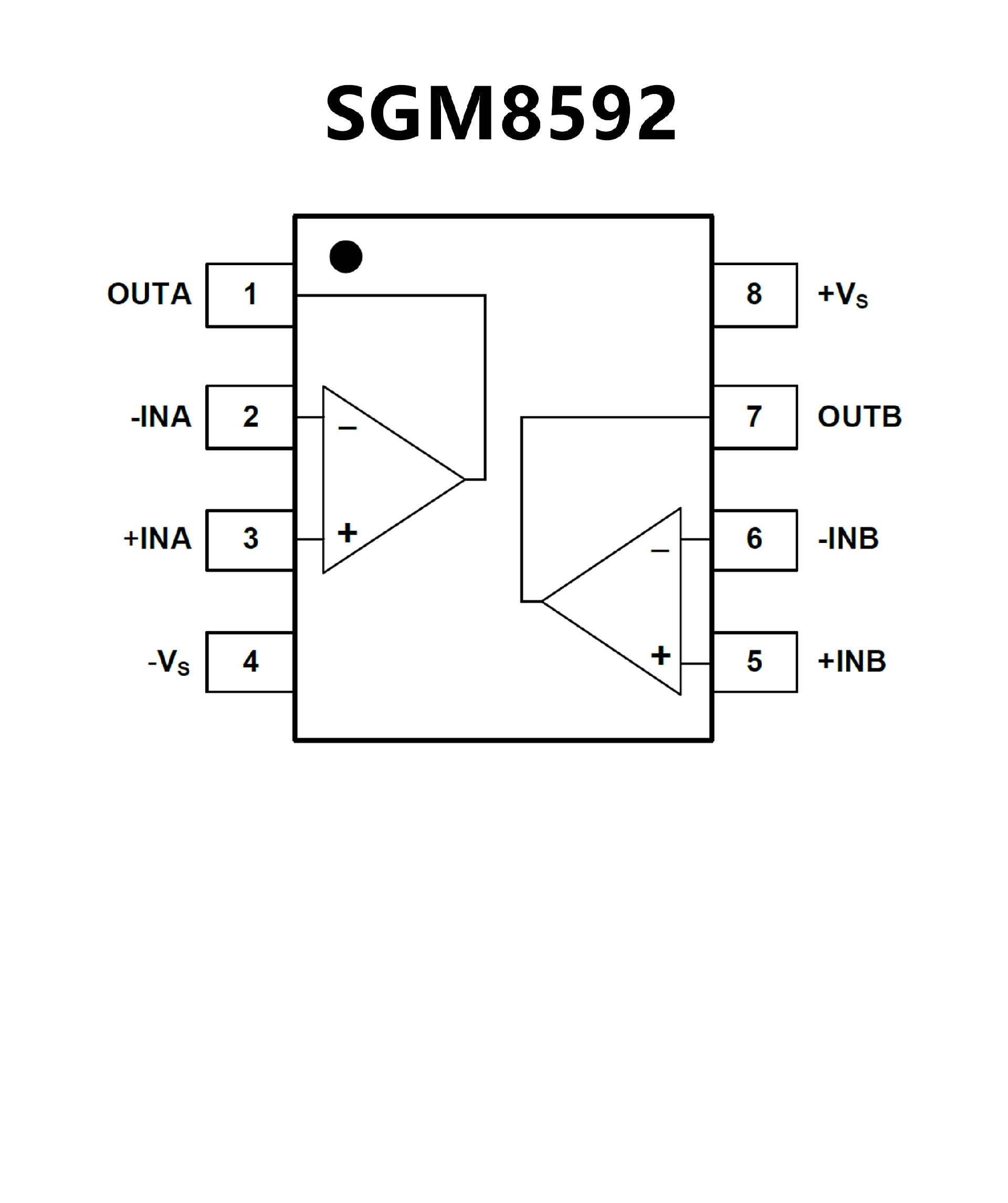

PIN CONFIGUTION
優勢替代
FEATURES
? Gain-bandwidth Product: 10 MHz
? Low Noise: 8.2 nV/√Hz(f= 1kHz)
? Slew Rate: 7 V/μs
? Offset Voltage: 1 mV (max)
? EMIRR IN+: 88 dB( under 2.4GHz)
? Low THD+N: 0.0005%
? Supply Range: 2.2 V to 5.5 V
? Supply Current: 1.4 mA/ch
? Low Input Bias Current: 0.3pA Typical
? Rail-to-Rail I/O
? High Output Current: 70 mA (1.0V Drop)
? –40°C to 125°C Operation Range

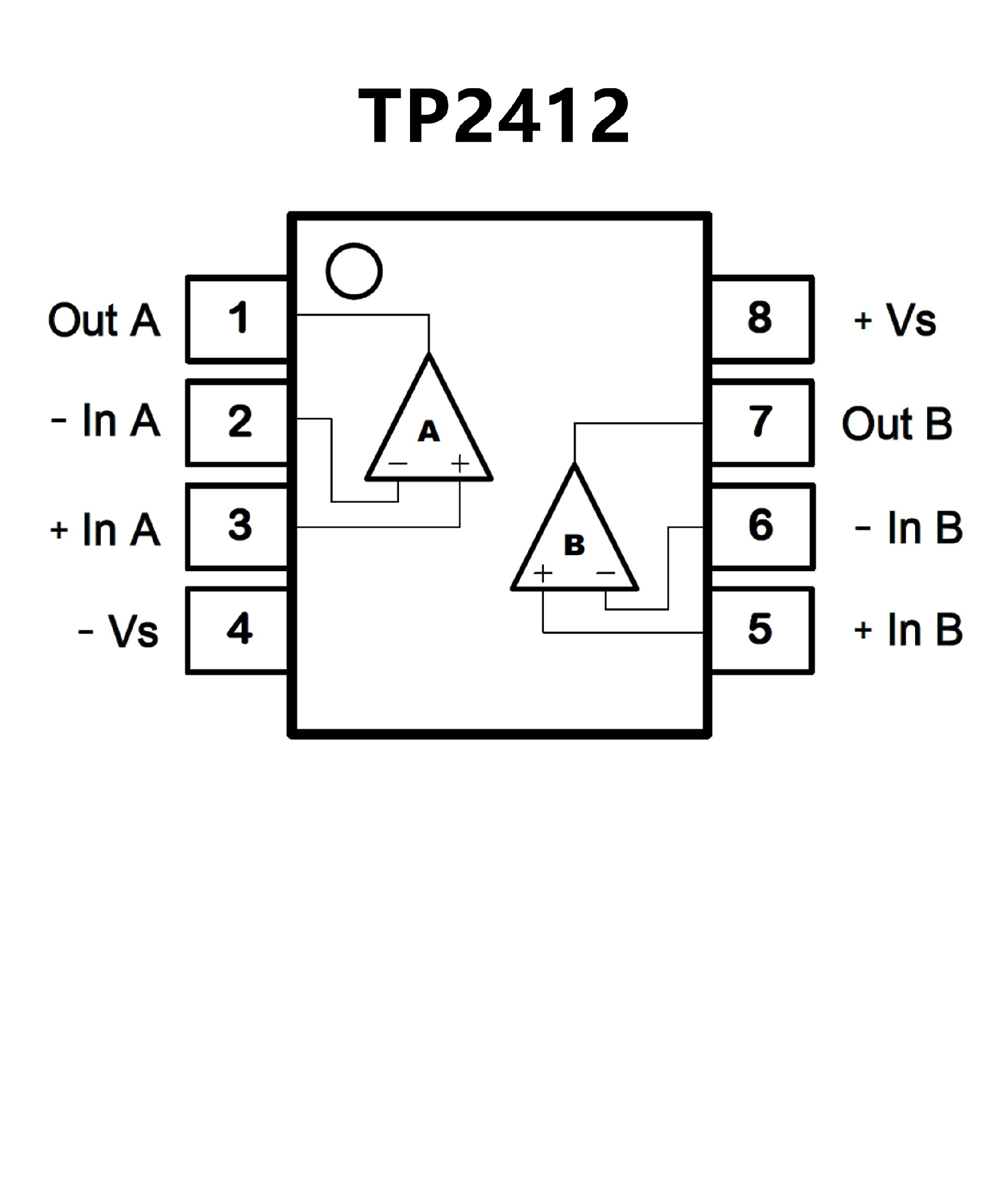

PIN CONFIGUTION
