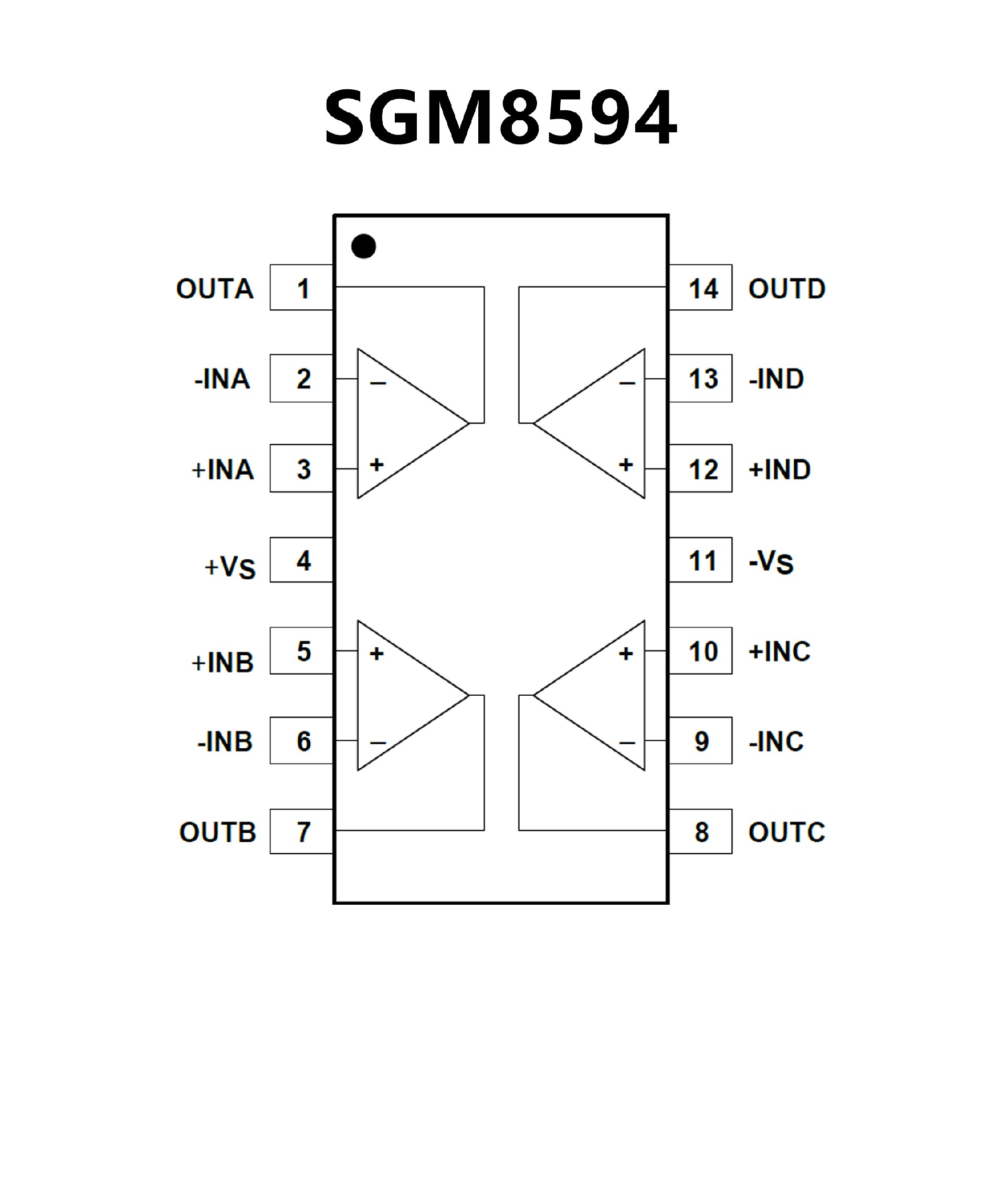

SGM8594.pdf? Low Offset Voltage: 150μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 135dB (TYP) at 5V
? PSRR: 115dB (TYP)
? EMIRR at 1.8GHz: 118dB
? CMRR: 92dB (TYP)
? Low Input Bias Current: 60pA
? Low Supply Current: 430μA/Amplifier
? Overload Recovery Time: 30μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

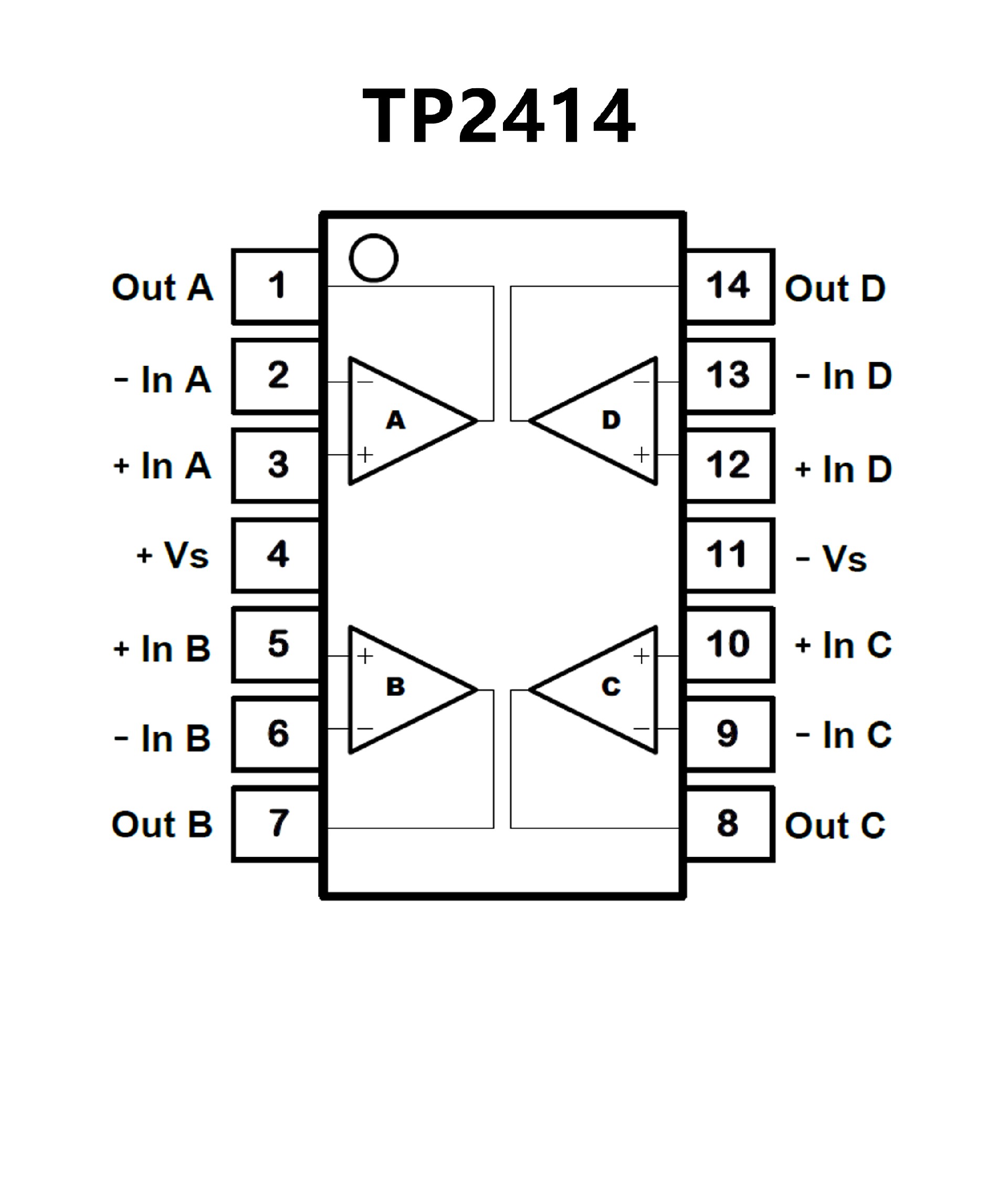

? Gain-bandwidth Product: 10 MHz
? Low Noise: 8.2 nV/√Hz(f= 1kHz)
? Slew Rate: 7 V/μs
? Offset Voltage: 1 mV (max)
? EMIRR IN+: 88 dB( under 2.4GHz)
? Low THD+N: 0.0005%
? Supply Range: 2.2 V to 5.5 V
? Supply Current: 1.4 mA/ch
? Low Input Bias Current: 0.3pA Typical
? Rail-to-Rail I/O
? High Output Current: 70 mA (1.0V Drop)
? –40°C to 125°C Operation Range
