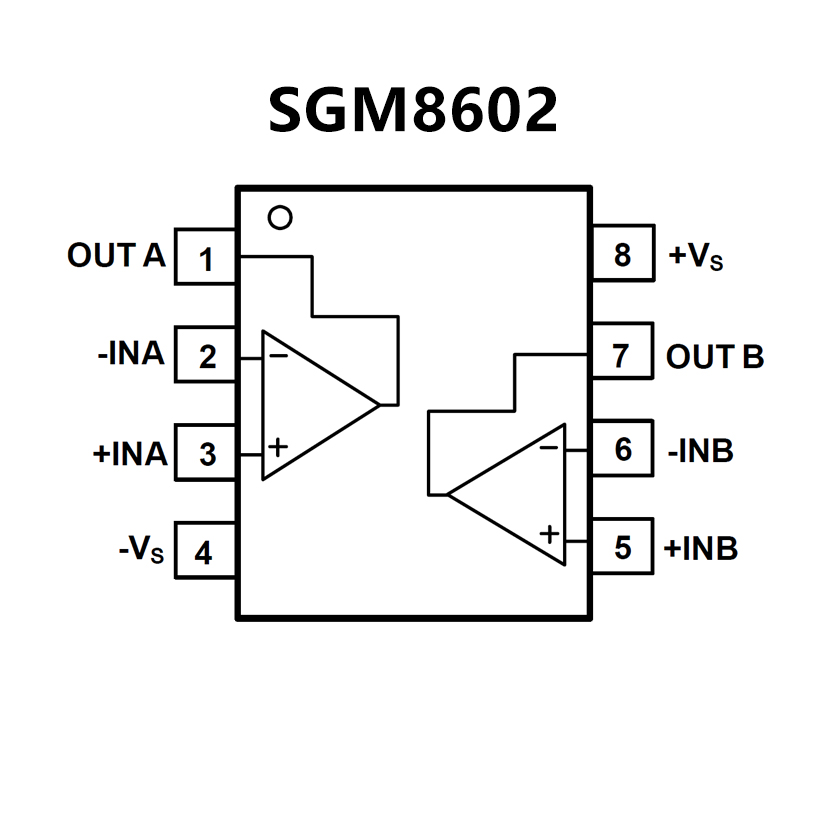

SGM8602XN8G.pdf? Rail-to-Rail Input and Output
? 5.1mV Maximum Input Offset Voltage
? High Gain-Bandwidth Product: 12MHz
? High Slew Rate: 9V/μs
? Settling Time to 0.1% with 2V Step: 0.2μs
? Overload Recovery Time: 0.4μs
? Low Noise: 9nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Power: 2.2mA (TYP) Supply Current
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-8 and TDFN-2×3-8L
Packages

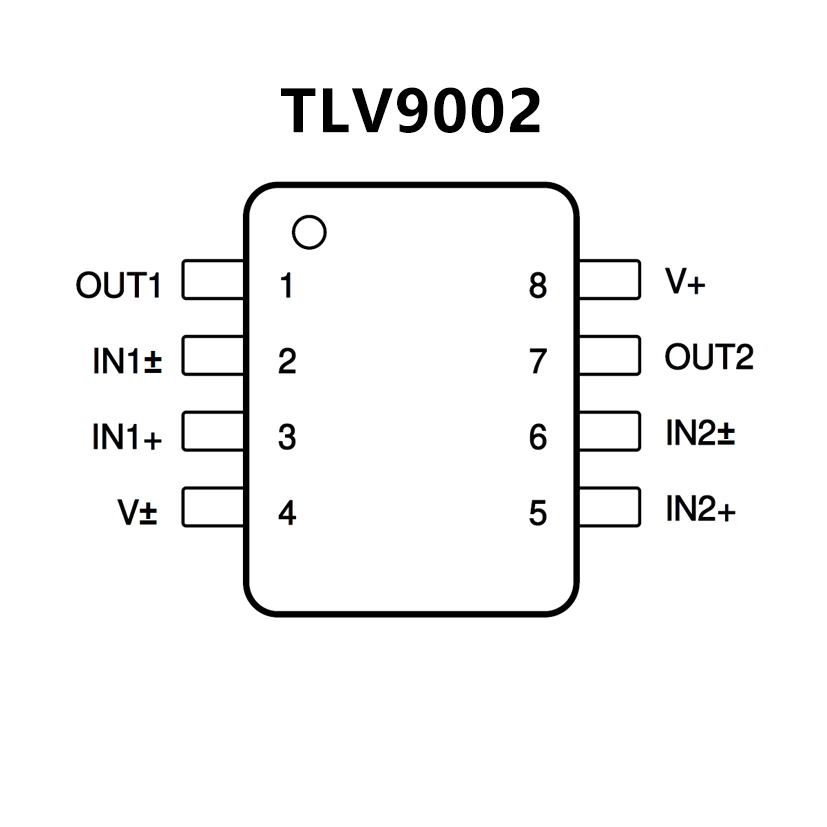

? Scalable CMOS amplifier
for low-cost applications
? Rail-to-rail input and output
? Low input offset voltage: ±0.4 mV
? Unity-gain bandwidth: 1 MHz
? Low broadband noise: 27 nV/√Hz
? Low input bias current: 5 pA
? Low quiescent current: 60 μA/Ch
? Unity-gain stable
? Internal RFI and EMI filter
? Operational at supply voltages as low as 1.8 V
? Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
? Extended temperature range: –40°C to 125°C
