15MHz, High Output Drive, High Precision,Low Noise Operational Amplifier, SGM8604-2 P2P OPA2322.
SGM8604-2
SGM8604-2.pdf
SGM8604-2.pdfFEATURES
? Output Drive Capability: 235mA
? Low Input Offset Voltage: 10μV (MAX)
? Low Input Offset Voltage Drift: 20nV/℃ (TYP)
? Low Noise: 28nV/√Hz at 1kHz
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? High Open-Loop Gain (RL = 2kΩ): 145dB
? Power Supply Rejection Ratio: 120dB
? Over-Temperature Protection
? No Phase Reversal for Overdriven Inputs
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Current: 2.3mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8AL Package

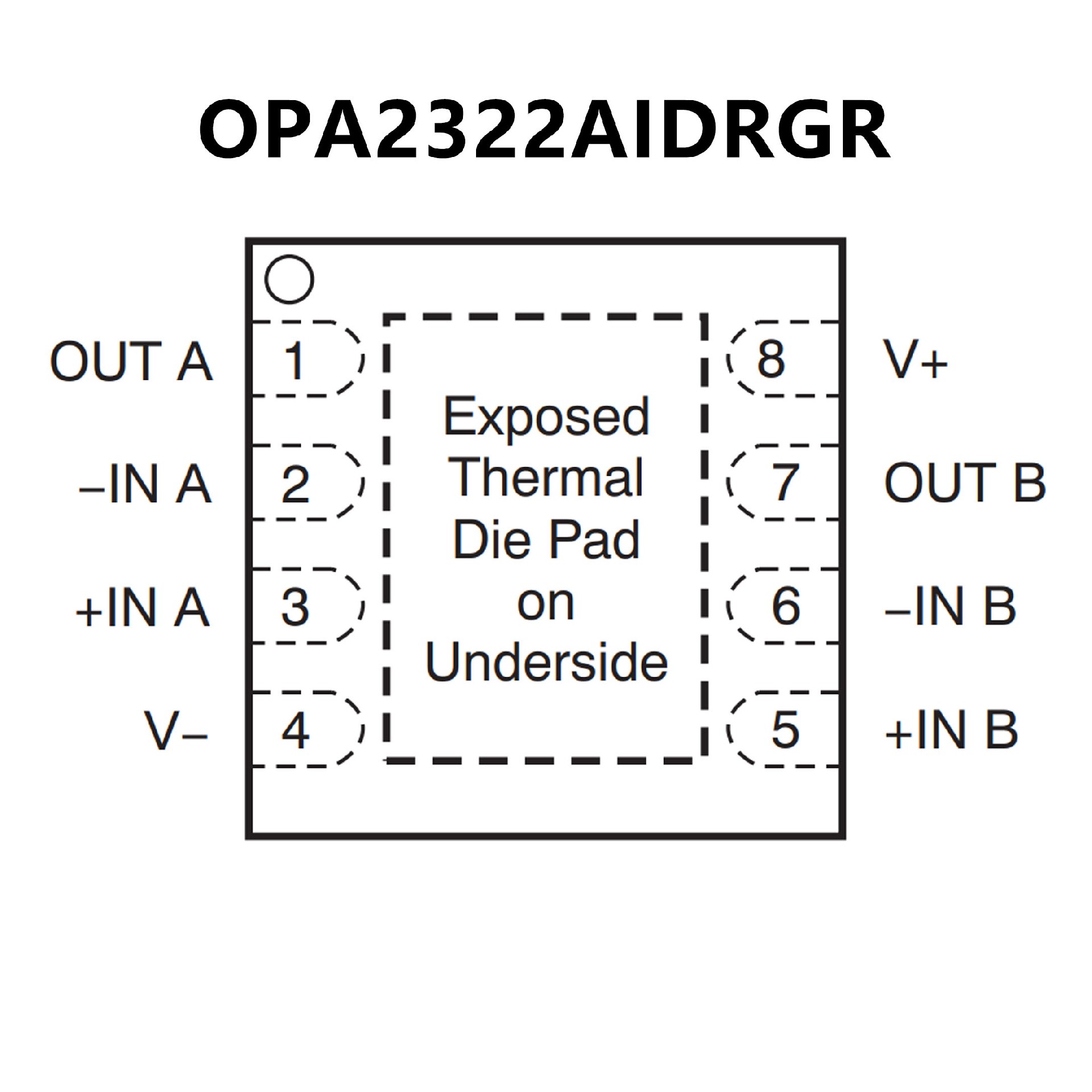

PIN CONFIGUTION
優勢替代
FEATURES
? 增益帶寬:20 MHz
? 低噪聲:8.5 nVIHz(在1kHz頻率條件下)
? 轉換速率:10 Vlus
? 低 THD +N: 0.0005%·軌至軌輸入輸出(IO)
? 失調電壓:2mV(最大值)
? 電源電壓:1.8V至5.5V
? 電源電流:每通道1.5 mA
-停機模式:每個通道的靜態電流為0.1 pA
· 具有穩定的單位增益
? 小外形封裝:
- SOT23, DFN, MSOP, TSSOP

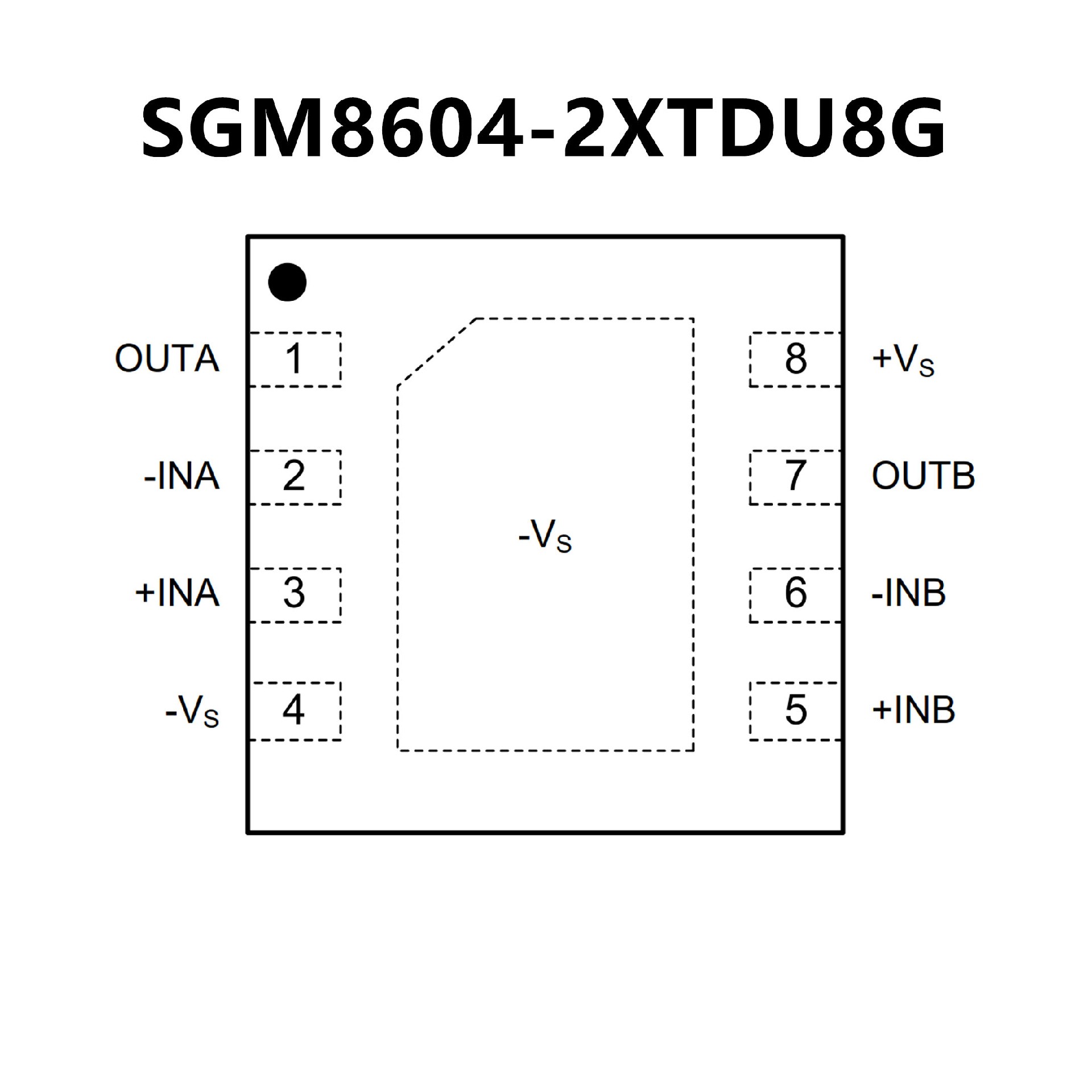

PIN CONFIGUTION
