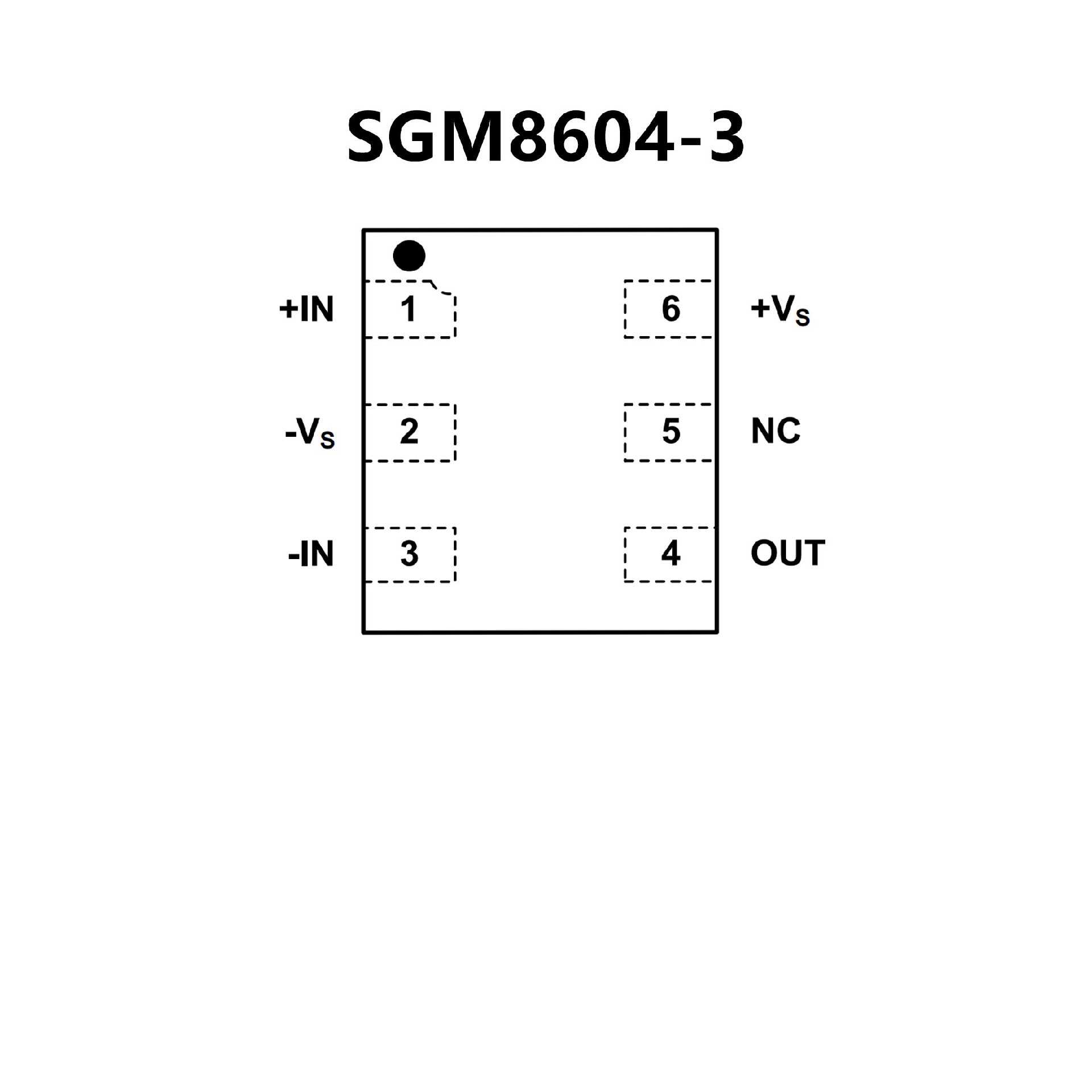

SGM8604-3.pdf? 232mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 10μV (MAX)
? Low Input Offset Voltage Drift: 17nV/℃ (TYP)
? Low Noise: 22nV/ Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current: 1.2mA/Amplifier
(TYP) 0.1μA Shutdown Current for SGM8604-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 145dB
? Power Supply Rejection Ratio: 127dB
? No Phase Reversal for Overdriven Inputs
? Small Packaging:
SGM8604-1 Available in a Green UTDFN-1.45×1-6L
SGM8604-2 Available in a Green TDFN-2×3-8AL
SGM8604-3 Available in a Green UTDFN-1.45×1-6L
SGM8604-5 Available in a Green TDFN-3×3-10L

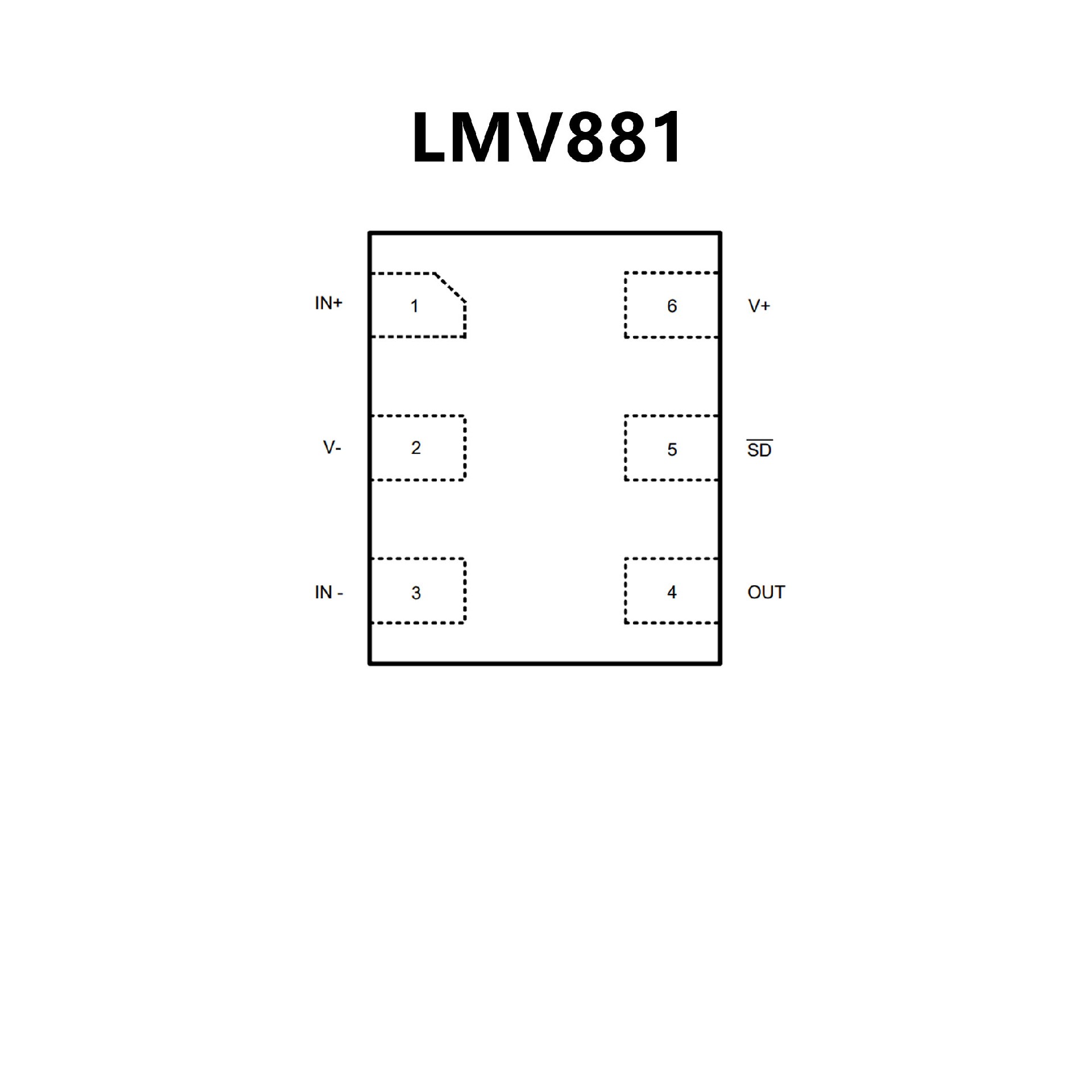

? Unless Otherwise Noted, Typical
Values at TA= 25°C, V+ = 3.3V
? Supply Voltage 2.7V to 5.5V
? Supply Current 1.65 mA
? Shutdown Current 200 pA
? Input Offset Voltage 1 mV Max
? Input Bias Current 0.1 pA
? GBW 23 MHz
? EMIRR at 1.8 GHz 105 dB
? Input Noise Voltage at 1 kHz 9 nV/√Hz
? Slew Rate 12 V/μs
? Output Voltage Swing Rail-to-Rail
? Output Current Drive 70 mA
? Operating Ambient Temperature Range ?40°C to 125°C
? Space Saving Micro-UQFN Package 1.5 x 1.0 x 0.5 mm
