SGM8604.pdf? 232mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 10μV (MAX)
? Low Input Offset Voltage Drift: 17nV/℃ (TYP)
? Low Noise: 22nV/ Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8604-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 145dB
? Power Supply Rejection Ratio: 127dB
? No Phase Reversal for Overdriven Inputs

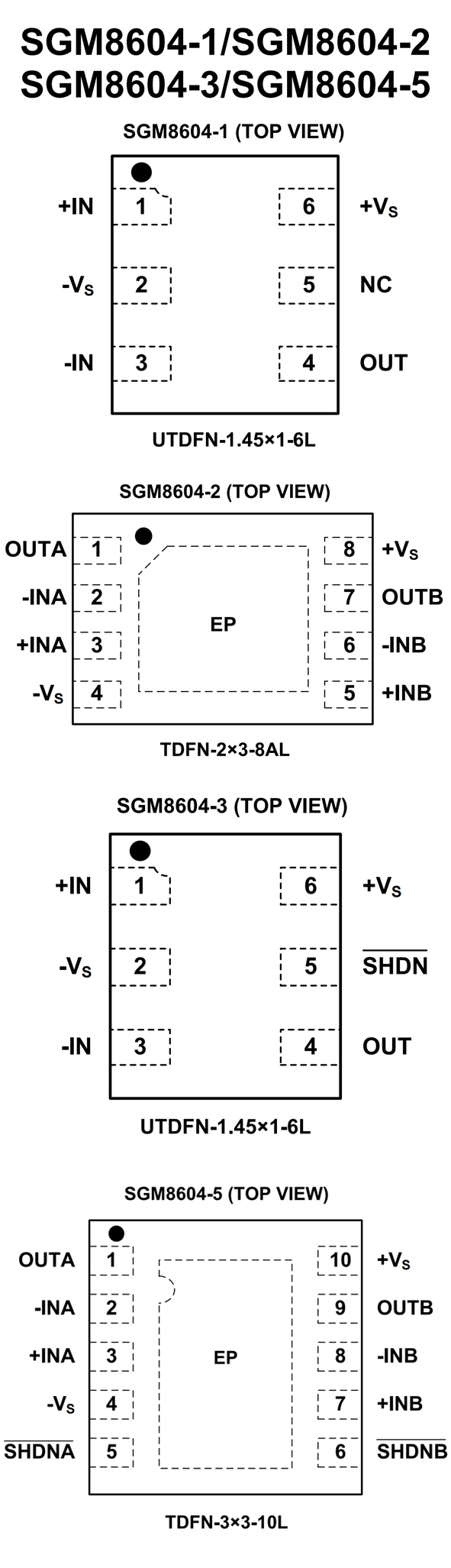

? Small Packaging:
SGM8604-1 Available in a Green UTDFN-1.45×1-6L
SGM8604-2 Available in a Green TDFN-2×3-8AL
SGM8604-3 Available in a Green UTDFN-1.45×1-6L
SGM8604-5 Available in a Green TDFN-3×3-10L

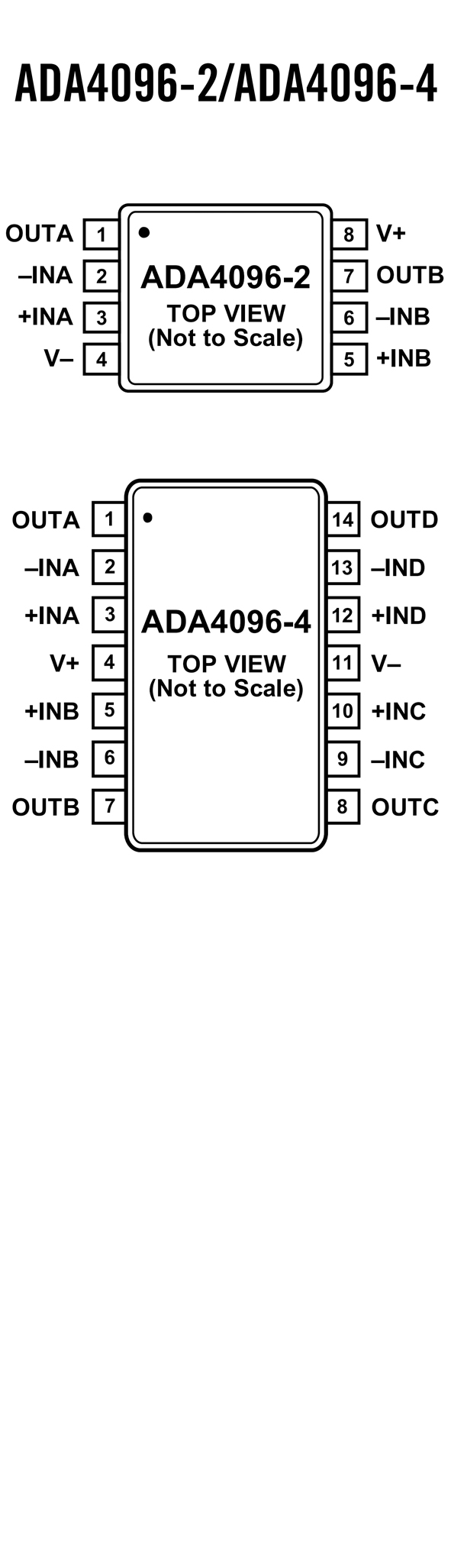

? Input overvoltage protection, 32 V above
and below the supply rails
? No phase reversal for input voltage
up to ±32 V beyond the power supply
? Rail-to-rail input and output swing
? Low power: 60 μA per amplifier typical
? Unity-gain bandwidth
? 800 kHz typical at VSY = ±15 V
? 550 kHz typical at VSY = ±5 V
? 465 kHz typical at VSY = ±1.5 V
? Single-supply operation: 3 V to 30 V
? Low offset voltage: 300 μV maximum
? Large signal voltage gain: 120 dB typical
? Unity gain stable
? Qualified for automotive applications
