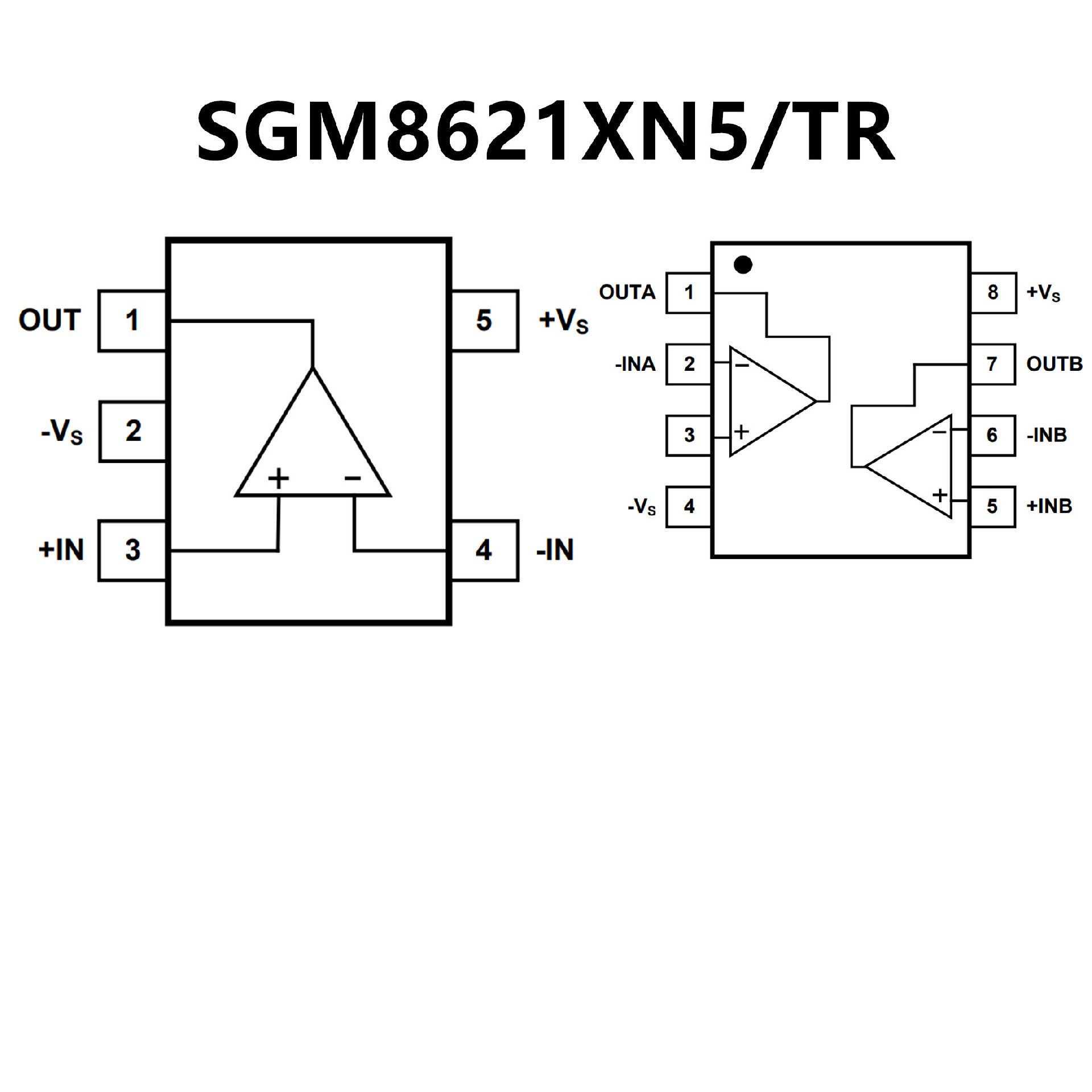

SGM8621XN5TR.pdf? Rail-to-Rail Input and Output 3mV Maximum VOS
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? Small Packaging
SGM8621 Available in Green SC70-5, SOT-23-5 and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14
? 200μA Supply Current per Amplifier
? 3.7 MHz Bandwidth
? Output Swing to Within 10 mV of Either Rail
? Input Voltage Range Exceeds the Rails
? 3 V/μs Slew Rate
? 25 nV/√Hz Input Voltage Noise
? Replaces KM4170 and KM4270

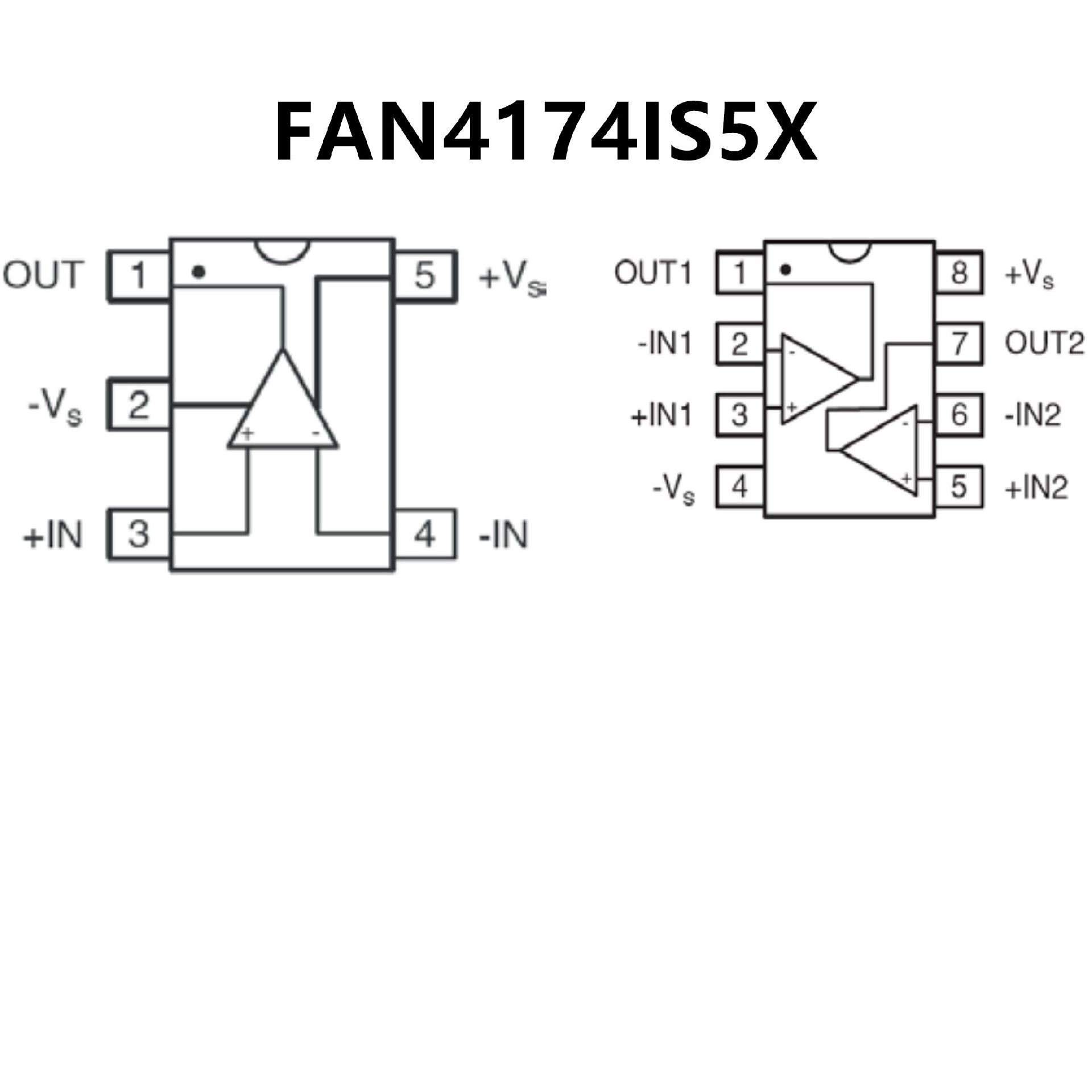

? FAN4174 Competes with OPA340 and
TLV2461; Available in aSOT23?5 Package
? FAN4274 Competes with OPA2340 and
TLV2462; Available inMSOP?8 Package
? Fully Specified at +5 V Supplies
? These are Pb?Free Devices
