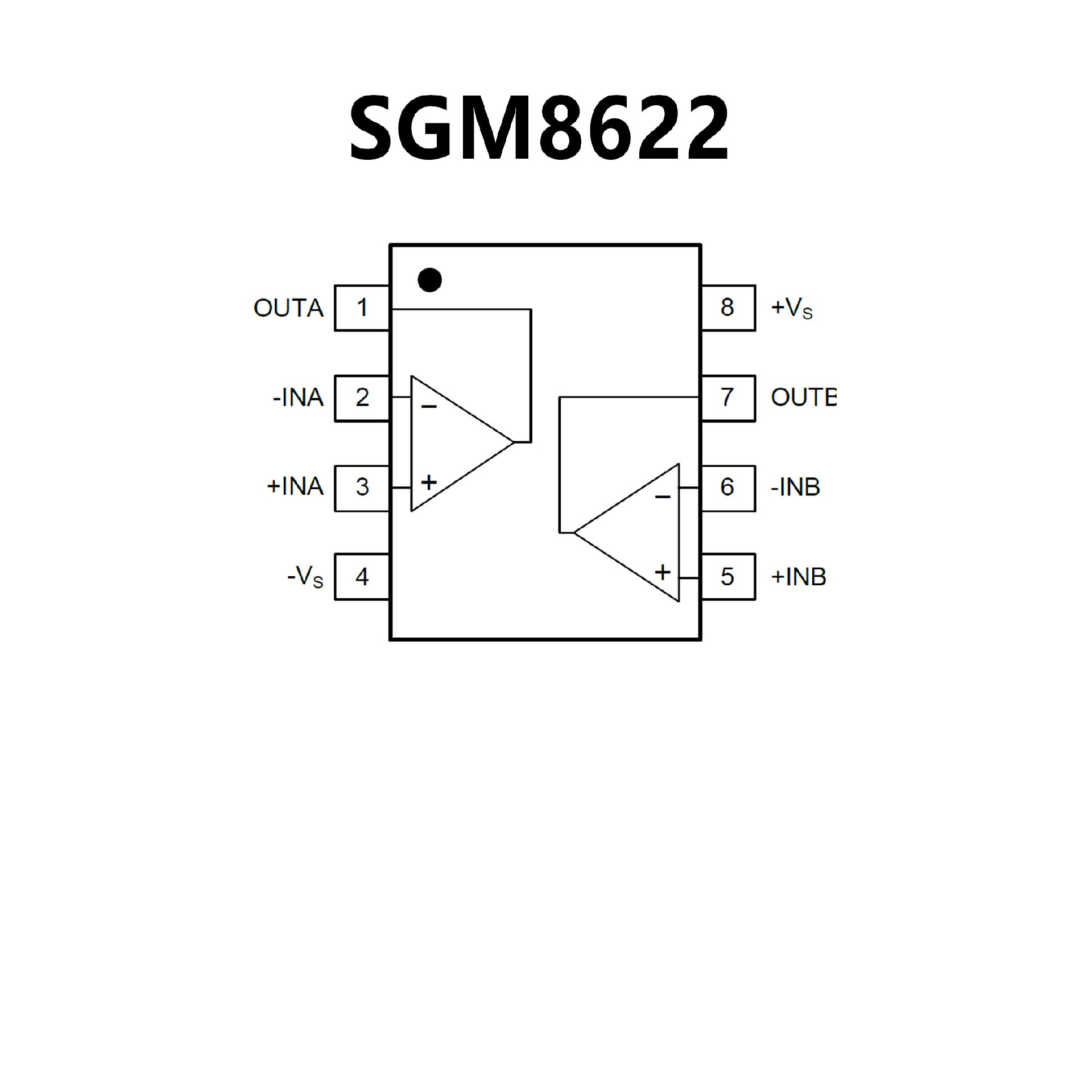

SGM8622.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3mV (MAX)
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV√Hz at 1kHz
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8621 Available in Green SC70-5,
SOT-23-5and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8
SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14
? High Efficiency:
GBW 1.7MHz
Supply Current 50μA/ch
? Rail-to-Rail Input and Output
? Supply Voltage 1.8V to 5.5V
? Integrated EMI filter EMIRR=75dB @f=900MHz
? Overvoltage Input Protection (Input Tolerant)
? Unity-Gain stable
? Input Offset Voltage 5mV max.
? Slew Rate 0.8V/μs
? Operating Temperature Range -55°C to 125°C
? Package

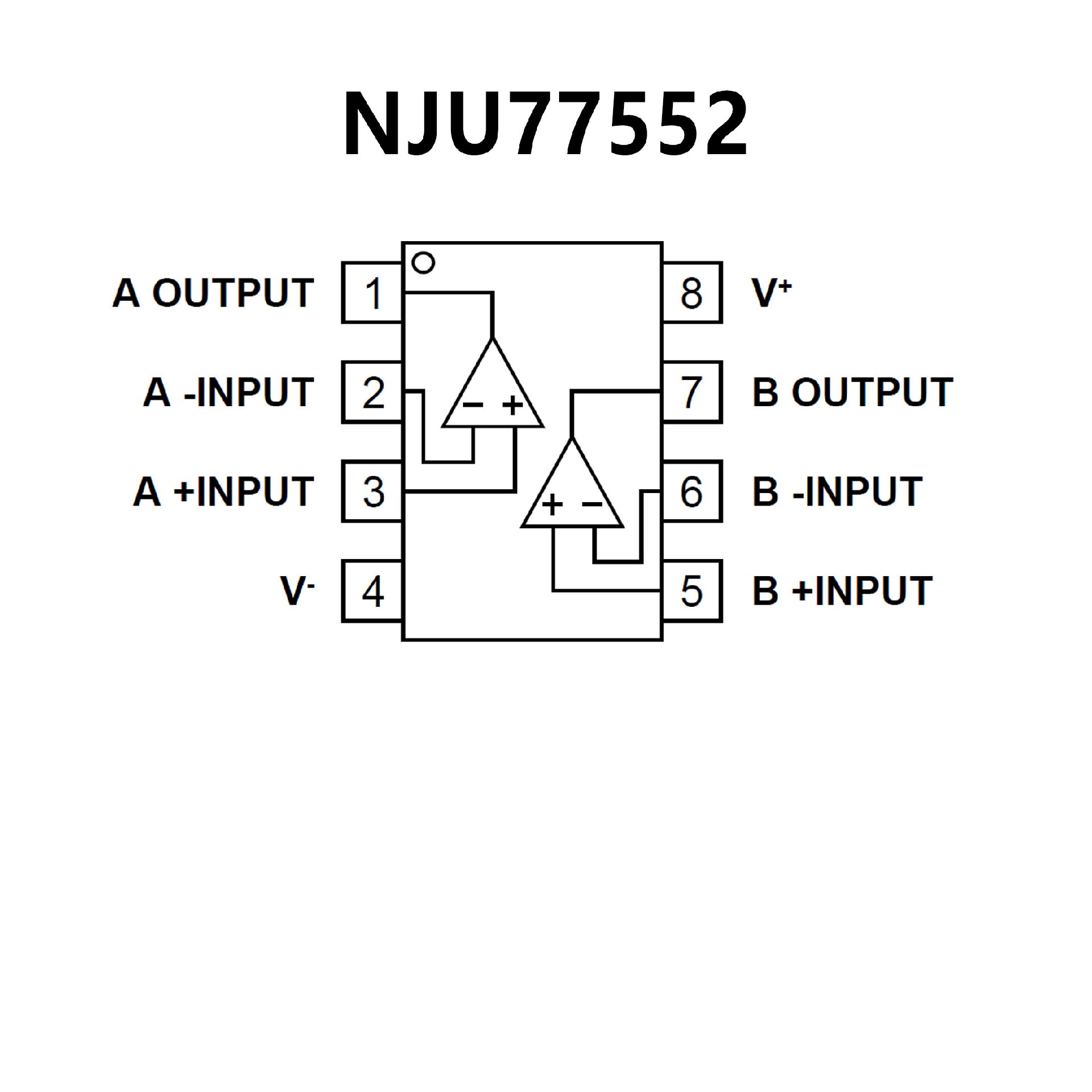

NJU77550/NJU77551 SOT-23-5, SC-88A
NJU77552 SOP8, MSOP8(TVSP8)*
* meet JEDEC MO-187-DA / thin type
DFN8-U1 (ESON8-U1)
NJU77554 SSOP14
