SGM8623.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3mV (MAX)
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nVk√Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8621 Available in Green SC70-5, SOT-23-5
and SOIC-8
SGM8622 Available in Green MSOP-8 and SOIC-8

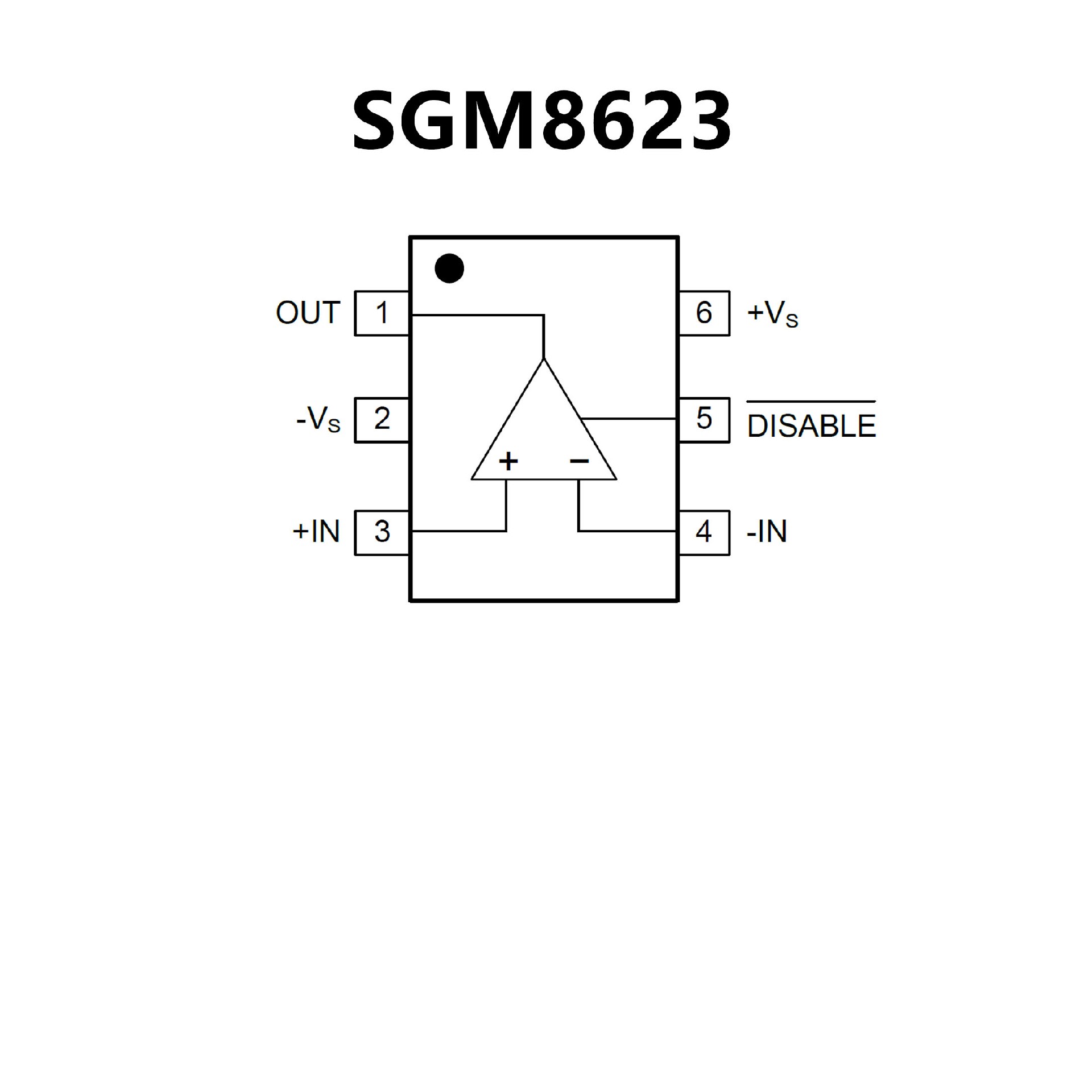

SGM8623 Available in Green SOT-23-6 and SOIC-8
SGM8624 Available in Green TSSOP-14 and SOIC-14
? Gain Bandwidth Product: 2 MHz (typical)
? Supply Current: IQ = 170 μA (typical)
? Supply Voltage: 2.0V to 6.0V
? Rail-to-Rail Input/Output
? Extended Temperature Range: –40°C to +125°C
? Available in Single, Dual and Quad Packages
? Parts with Chip Select (CS)

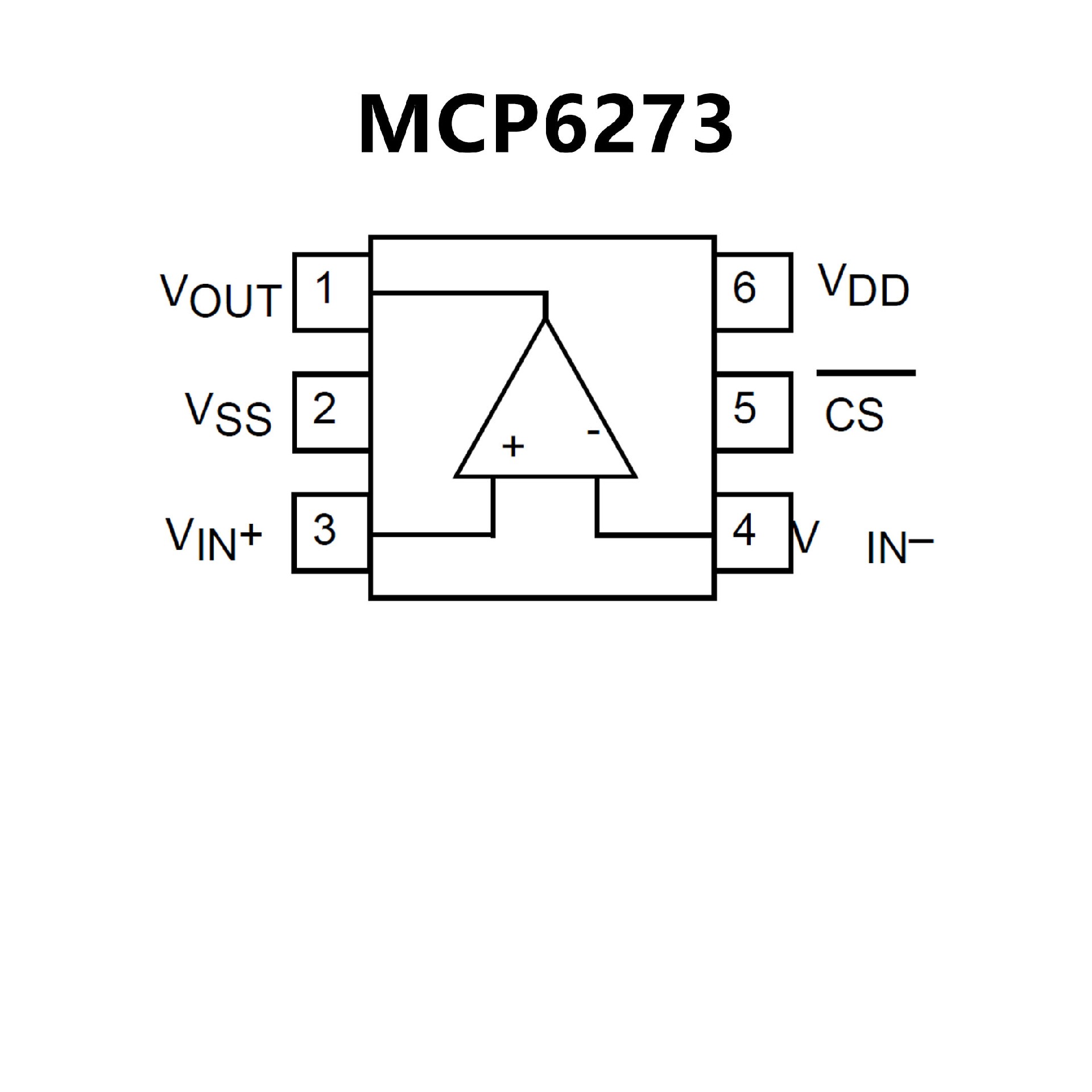

Single (MCP6273)
Dual (MCP6275)
