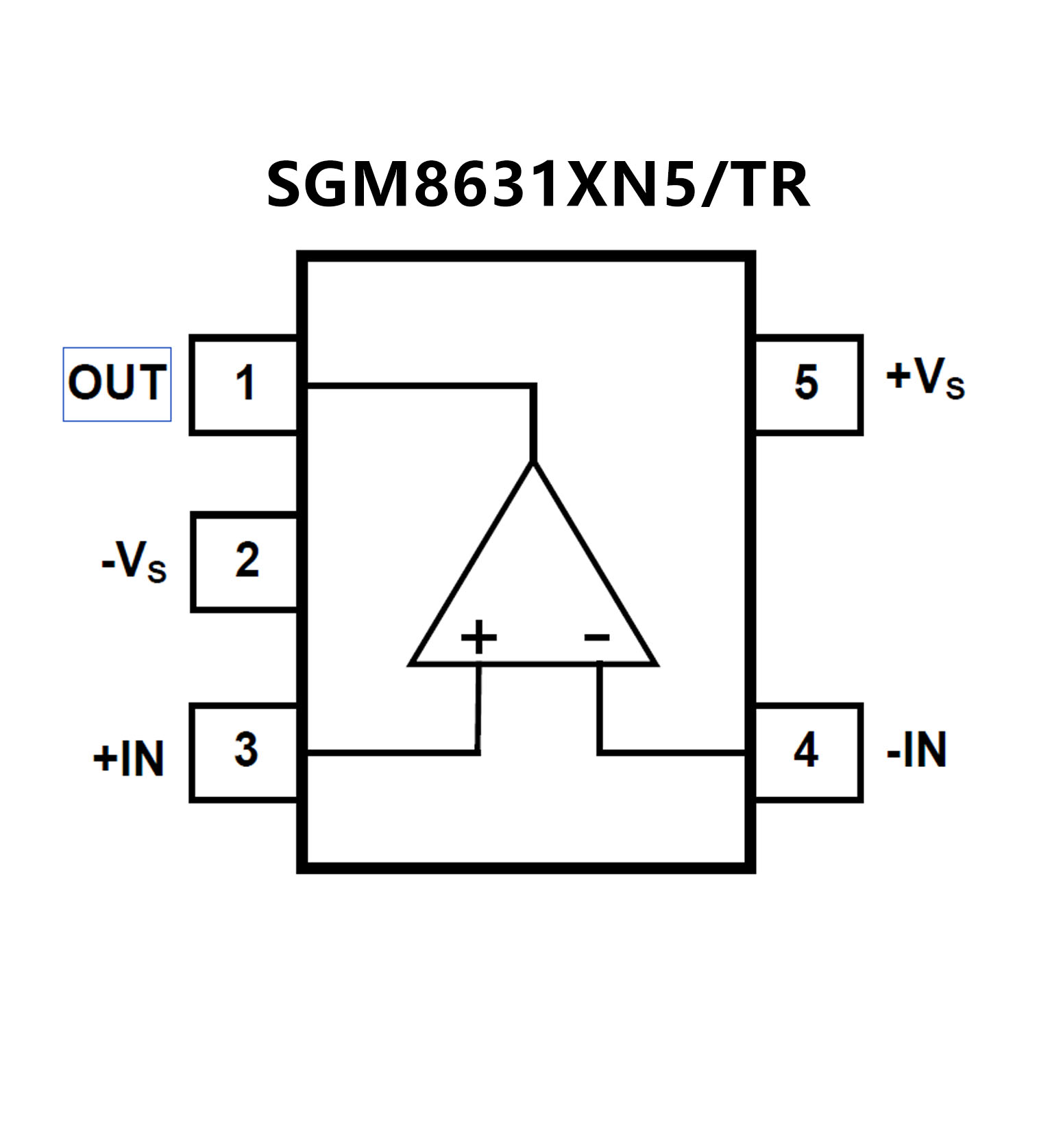

SGM8631.pdf? Rail-to-Rail Input and Output 3.5mV Maximum VOS
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP) Less than
1μA Shutdown Current for SGM8633
? Small Packaging SGM8631 Available in Green
SC70-5, SOT-23-5 and SOIC-8 SGM8632 Available
in Green MSOP-8 and SOIC-8 SGM8633 Available
in Green SOT-23-6 and SOIC-8

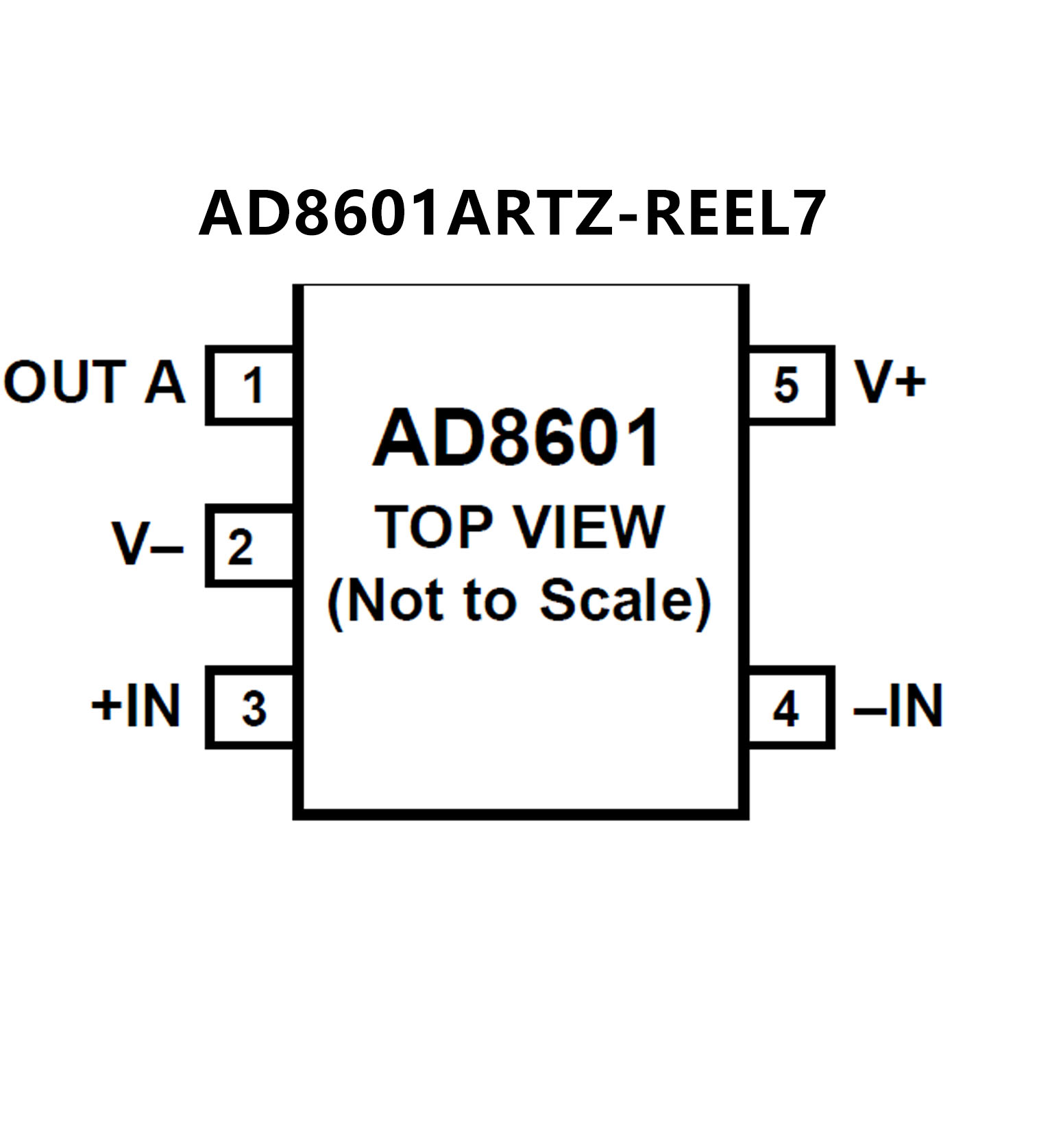

? Low offset voltage: 500 μV maximum
? Single-supply operation: 2.7 V to 5.5 V
? Low supply current: 750 μA/Amplifier
? Wide bandwidth: 8 MHz
? Slew rate: 5 V/μs
? Low distortion
? No phase reversal Low input currents
? Unity-gain stable
? Qualified for automotive applications
