Low Noise Operational Amplifier,SGM8632 Replace TLC272.
SGM8632
SGM8632.pdf
SGM8632.pdfFEATURES
? Rail-to-Rail Input and Output
? 3.5mV Maximum Input Offset Voltage
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 480μA/Amplifier (TYP)
? Available in Green MSOP-8 Package
PIN CONFIGUTION
優勢替代
FEATURES
? Trimmed Offset Voltage:TLC277 . . . 500 μV Max at 25°C,
VDD = 5 V
? Input Offset Voltage Drift ...Typically
0.1 μV/Month, Including the First 30 Days
? Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
–40°C to 85°C . . . 4 V to 16 V
–55°C to 125°C . . . 4 V to 16 V
? Single-Supply Operation
? Common-Mode Input Voltage Range Extends Below the
Negative Rail (C-Suffix,I-Suffix types)
? Low Noise ...Typically 25 nV/√Hz at f = 1 kHz
? Output Voltage Range Includes Negative Rail
? High Input impedance . . . 1012 ? Typ
? ESD-Protection Circuitry
? Small-Outline Package Option Also Available in Tape and Reel
? Designed-In Latch-Up Immunity

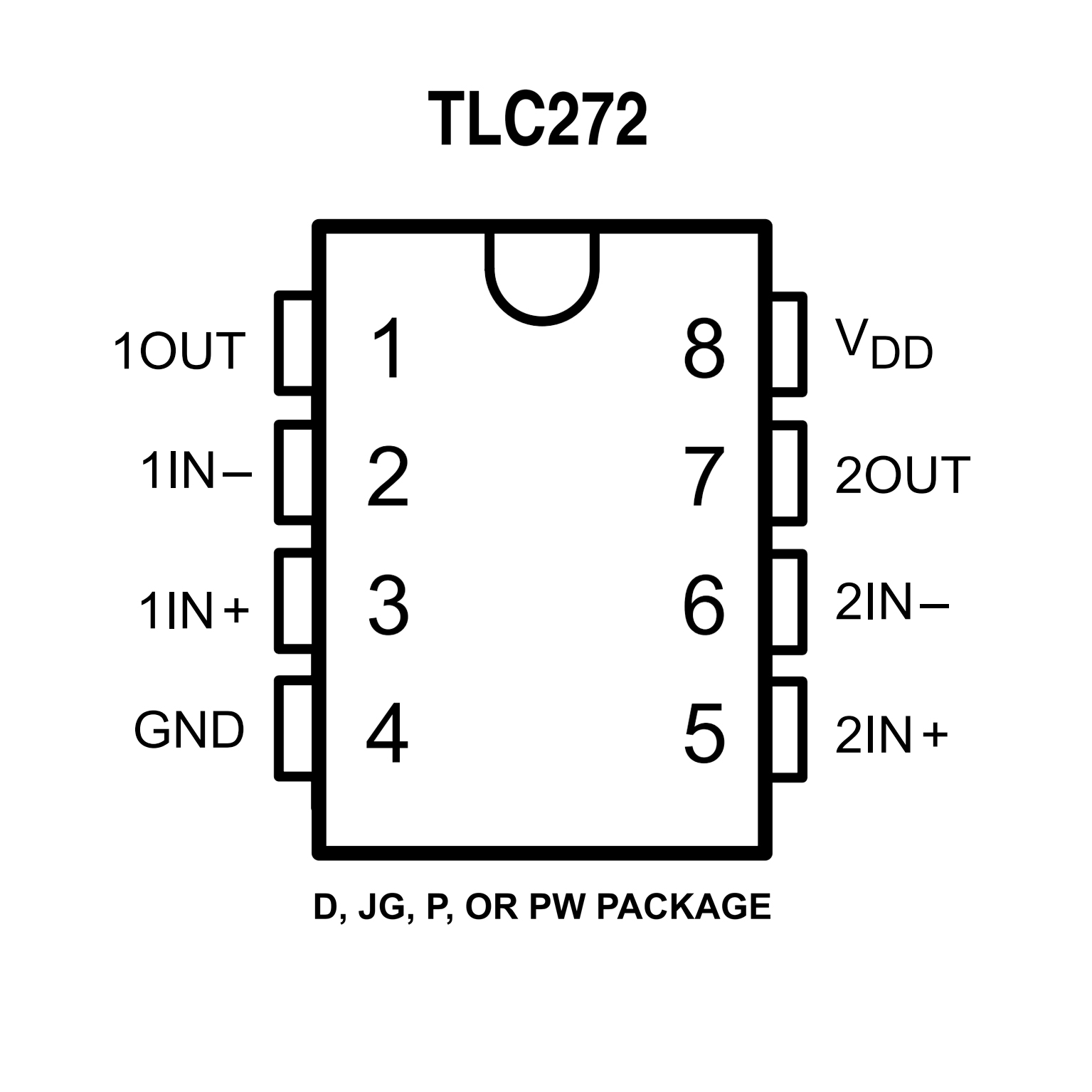

PIN CONFIGUTION
