SGM8632XS.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages

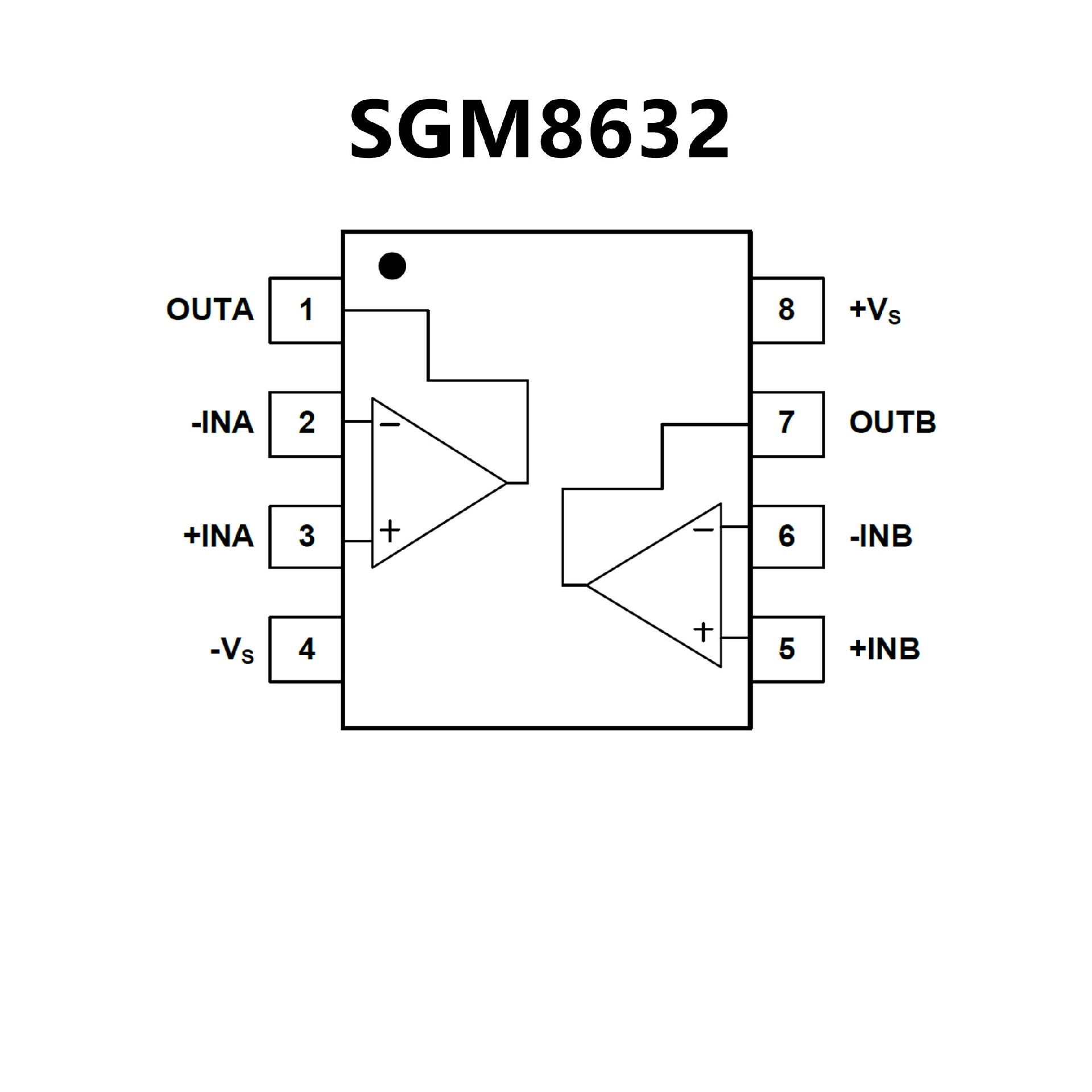

SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages
? HIGH GAIN BANDWIDTH:7MHz
? RAIL-TO-RAIL INPUT AND OUTPUT
±0.5mV Max Vos
? INPUT VOLTAGE RANGE: -0.1V to +5.6V
with Vs = 5.5V
? SUPPLY RANGE: +2.5V to +5.5V

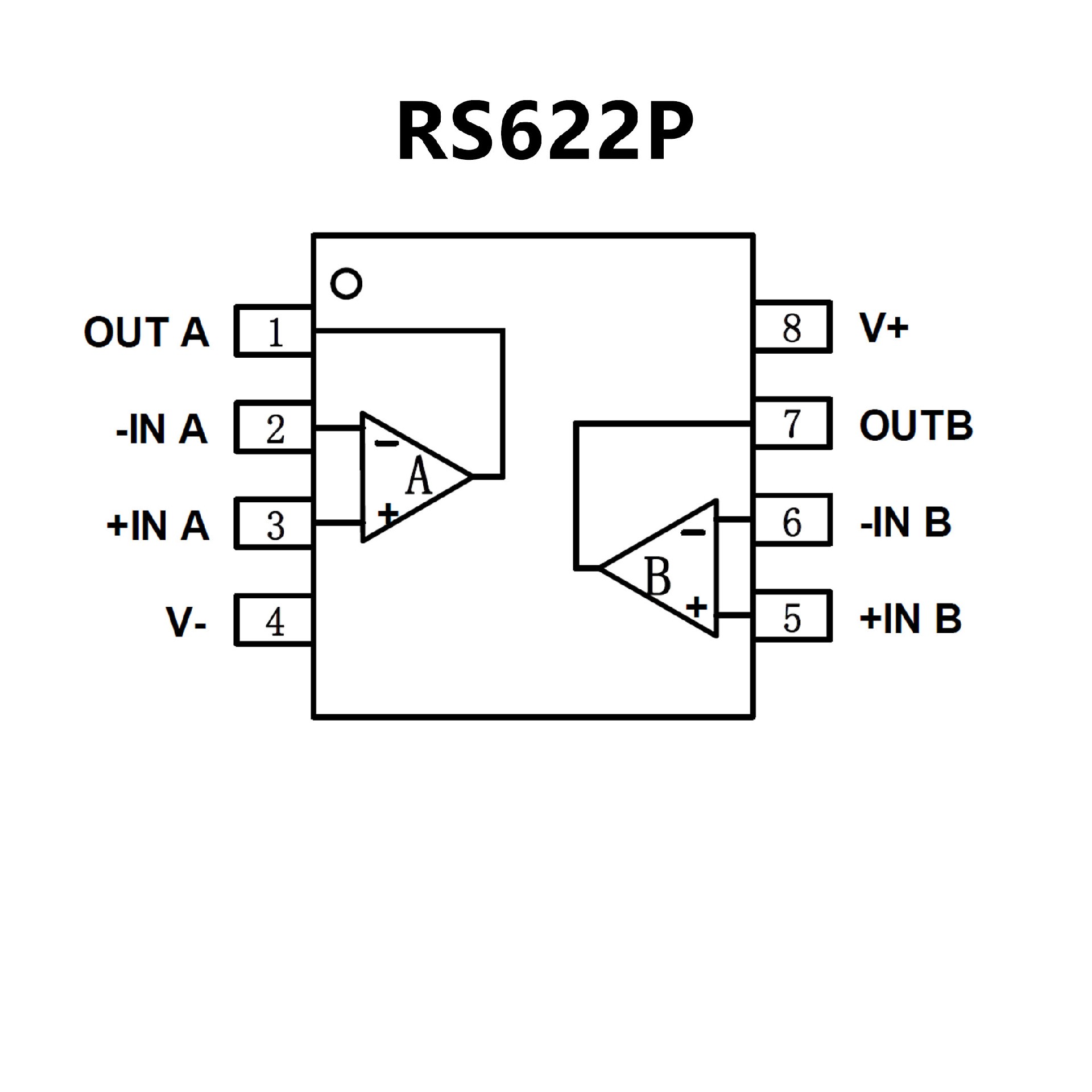

? SHUTDOWN: RS621S/RS622S
? SPECIFIED UP TO +125°C
? MicroSIZE PACKAGES: SOT23-5
