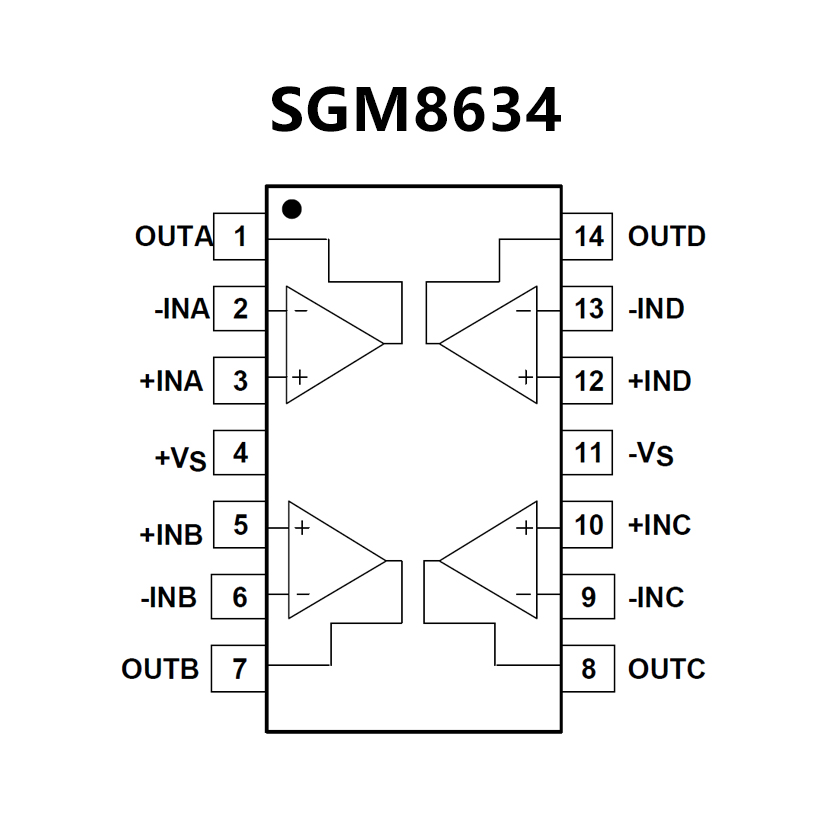

SGM8634.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 2.1μs
? Overload Recovery Time: 0.9μs
? Low Noise: 12nV/ Hz
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 470μA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-14 and SOIC-14 Packages
? Output Swing Includes Both Supply Rails
? Low Noise: 9 nV/√Hz Typical at f = 1 kHz
? Low-Input Bias Current: 1-pA Typical
? Fully-Specified for Both Single-Supply and Split-
Supply Operation
? Common-Mode Input Voltage Range Includes
Negative Rail
? High-Gain Bandwidth: 2.2-MHz Typical
? High Slew Rate: 3.6-V/μs Typical
? Low Input Offset Voltage: 950 μV Maximum at
TA = 25°C
? Macromodel Included

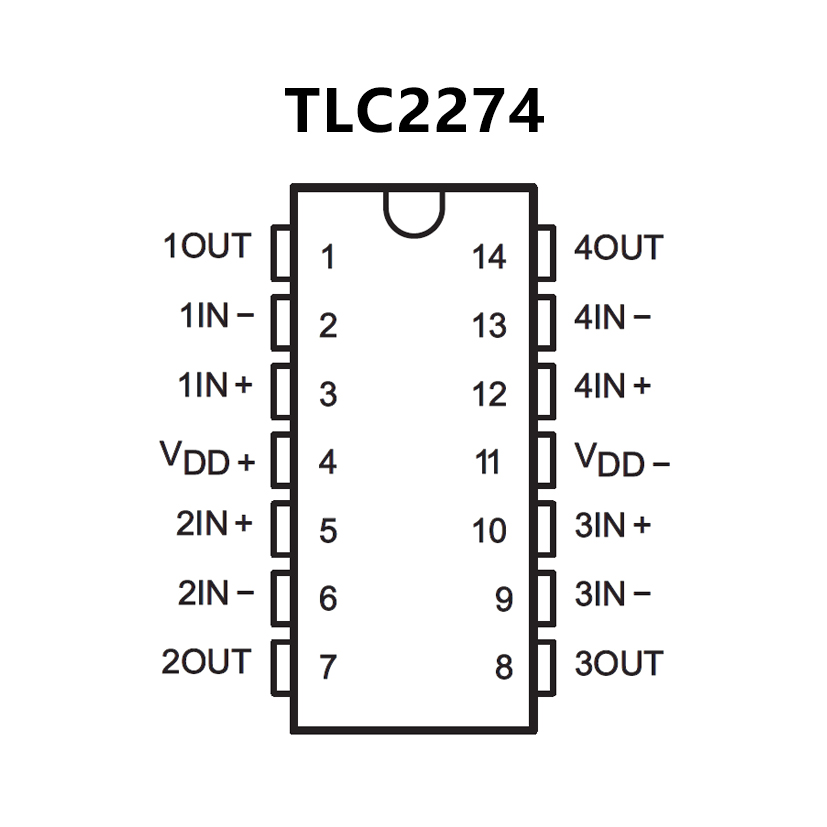

? Performance Upgrades for the TLC272 and
TLC274
? Available in Q-Temp Automotive
