470μA, 6MHz, Rail-to-Rail I/OCMOS Operational Amplifier,SGM8634XS14 Replace TS274AIDT.
SGM8634XS14
SGM8634XS14.pdf
SGM8634XS14.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 2.1μs
? Overload Recovery Time: 0.9μs
? Low Noise: 12nV/ Hz
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 470μA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-14 and SOIC-14 Packages

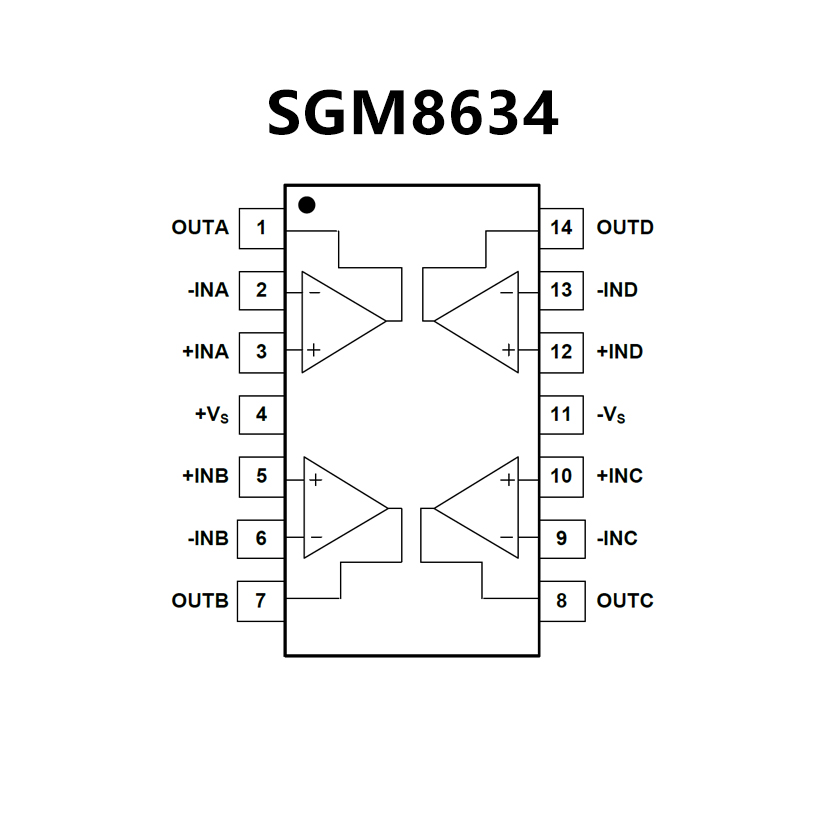

PIN CONFIGUTION
優勢替代
FEATURES
? Output voltage can swing to ground
? Excellent phase margin on capacitive loads
? Gain bandwidth product: 3.5 MHz
? Unity gain stable
? Two input offset voltage selections

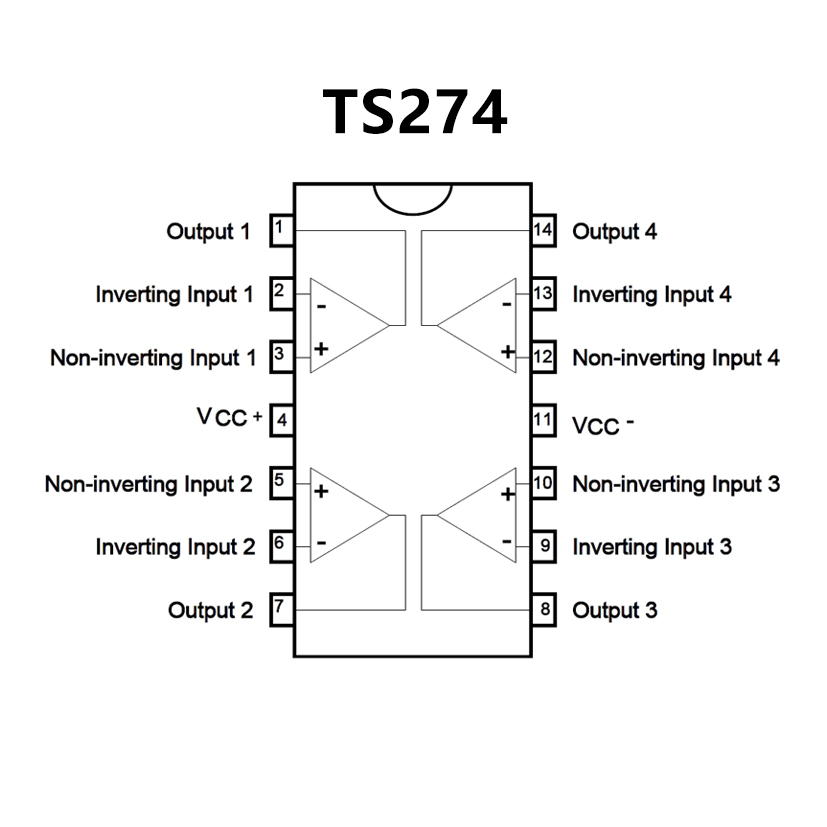

PIN CONFIGUTION
