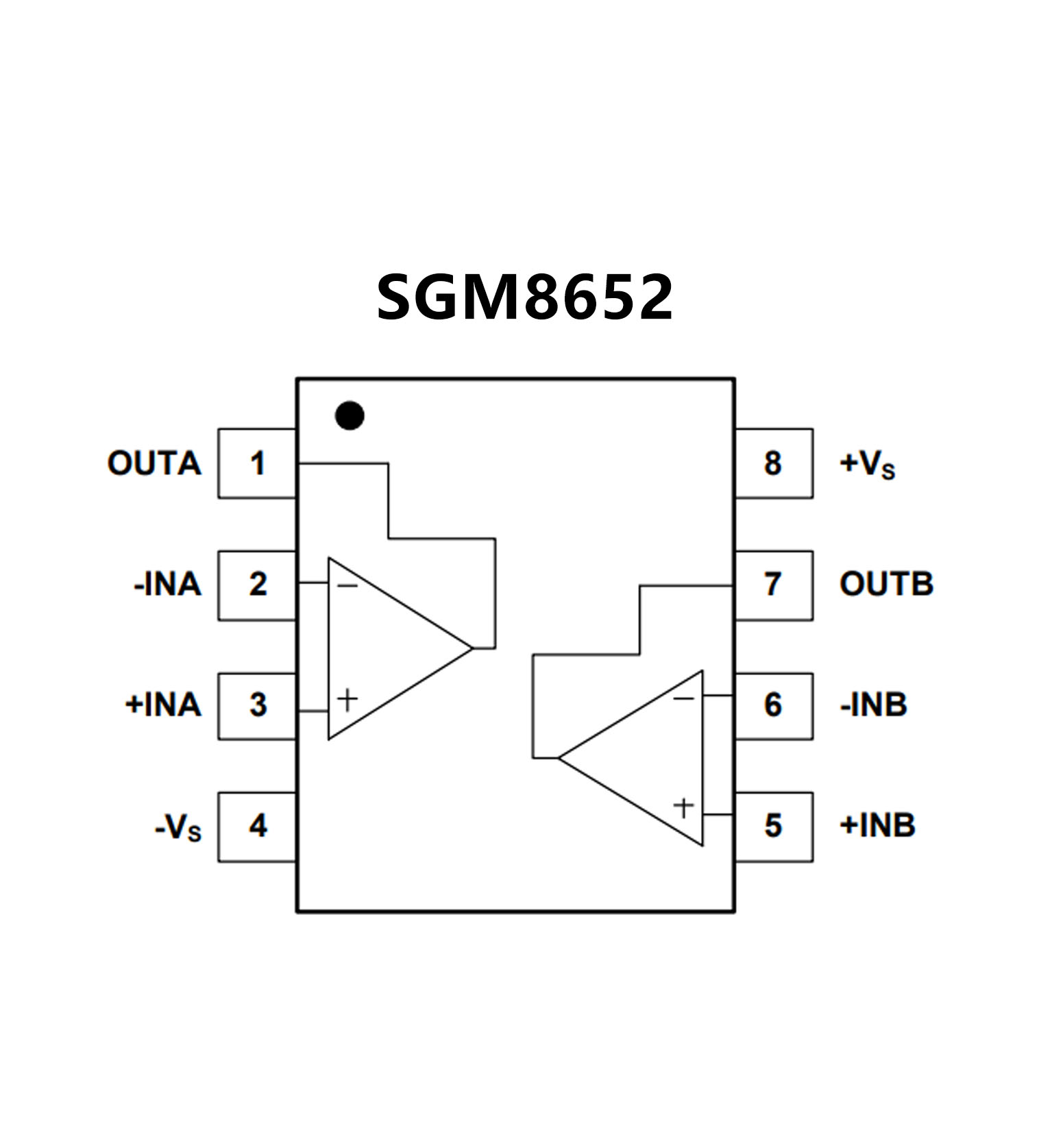

SGM8652.pdf? Rail-to-Rail Output
? Input Offset Voltage: 2mV (TYP)
? Gain-Bandwidth Product: 50MHz
? High Slew Rate: 66V/μs
? Settling Time to 0.1% with 2V Step: 60ns
? Overload Recovery Time: 25ns
? Low Noise: 8.7nV/ Hz
? Operates on 2.5V to 5.5V Supply
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Low Supply Current:
2.3mA/Amplifier (TYP)
75μA/Amplifier Shutdown Current for SGM8653/5
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:SGM8651 Available in Green
SOT-23-5 andSOIC-8 PackagesSGM8652
Available in Green MSOP-8 and SOIC-8P
ackagesSGM8653 Available in Green SOT-23-6
andSOIC-8 PackagesSGM8654 Available in
Green TSSOP-14 andSOIC-14 PackagesSGM8655
Available in a Green MSOP-10 Package

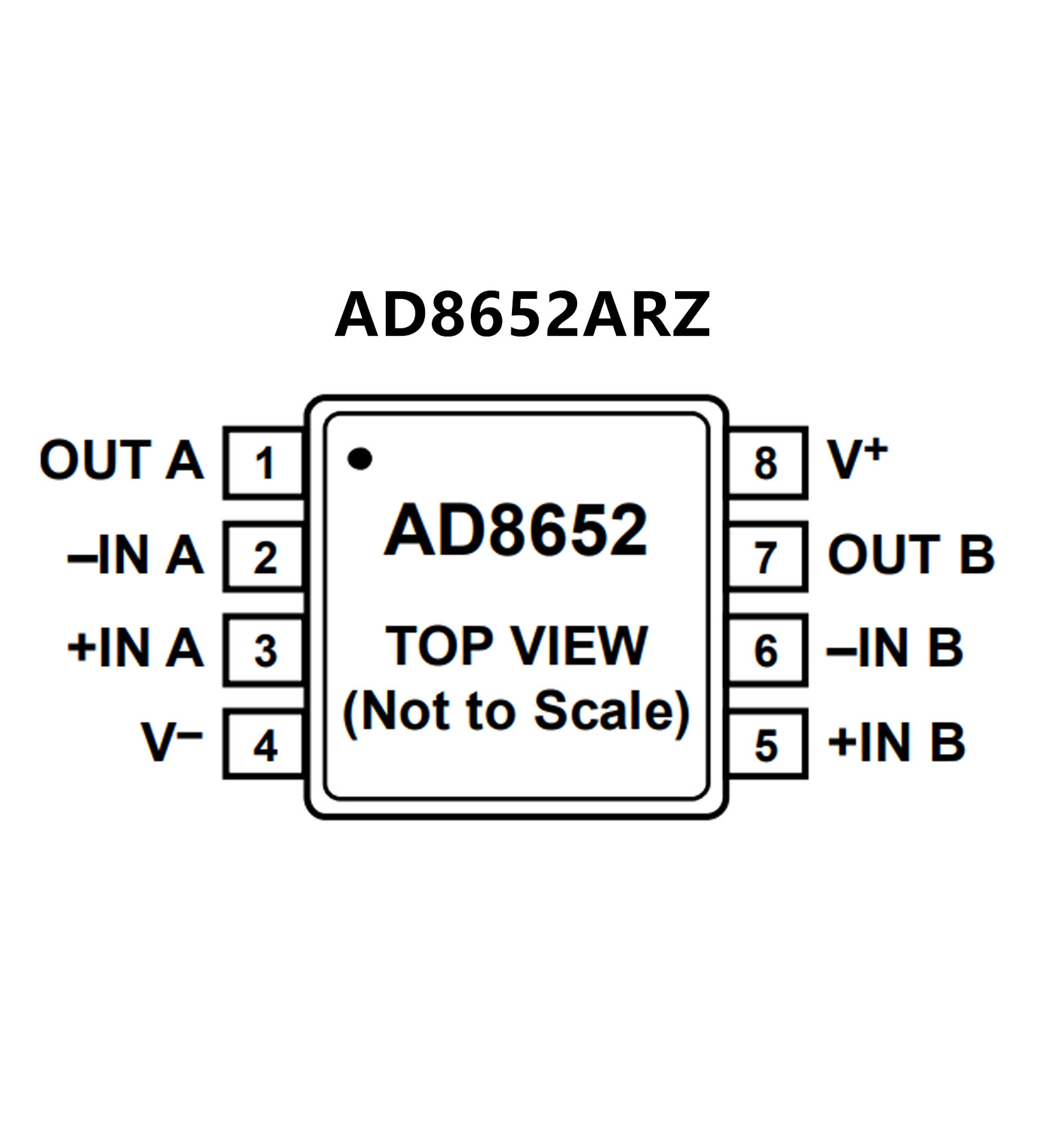

? Bandwidth: 50 MHz at 5 V
? Low noise: 4.5 nV/√Hz
? Offset voltage: 100 μV typical, specified over
? entire common-mode range
? Slew rate: 41 V/μs
? Rail-to-rail input and output swing
? Input bias current: 1 pA
? Single-supply operation: 2.7 V to 5.5 V
? Space-saving MSOP and SOIC_N packaging
