Micro-Power, CMOS Input, RRIO, 1.4V,Push-Pull Output Comparator,SGM8701YN5G Replace TLV3491.
SGM8701YN5G
SGM8701YN5G.pdf
SGM8701YN5G.pdfFEATURES
? Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
19mA (TYP) at VS = 5Vs
? Rail-to-Rail Input
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

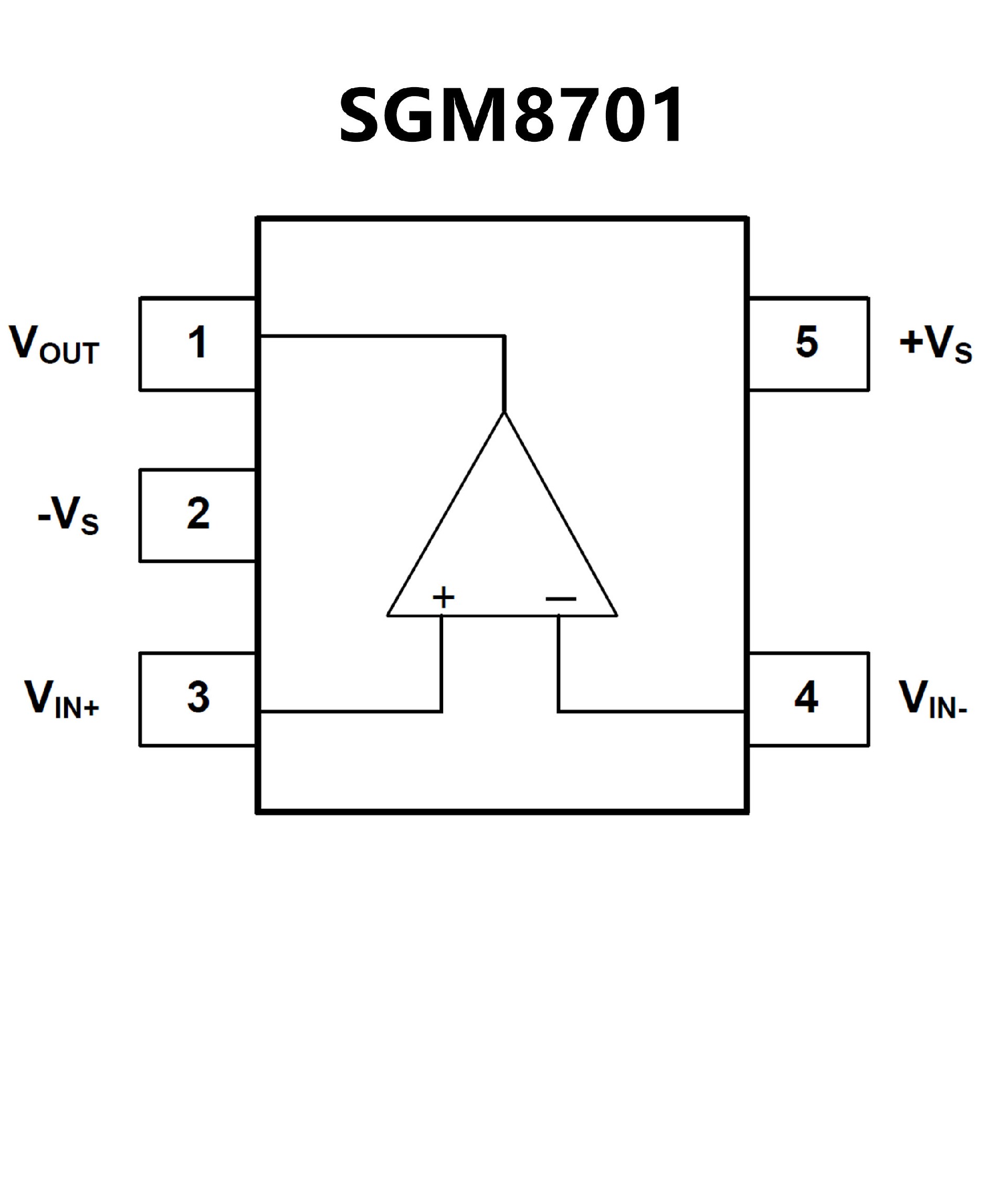

PIN CONFIGUTION
優勢替代
FEATURES
? Very Low Supply Current: 0.8 μA (Typical)
? Input Common-Mode Range: 200-mV
BeyondSupply Rails
? Supply Voltage: 1.8 V to 5.5 V
? High Speed: 6 μs
? Push-Pull CMOS Output Stage
? Small Packages:
5-Pin SOT-23 (Single)
8-Pin SOT-23 (Dual)

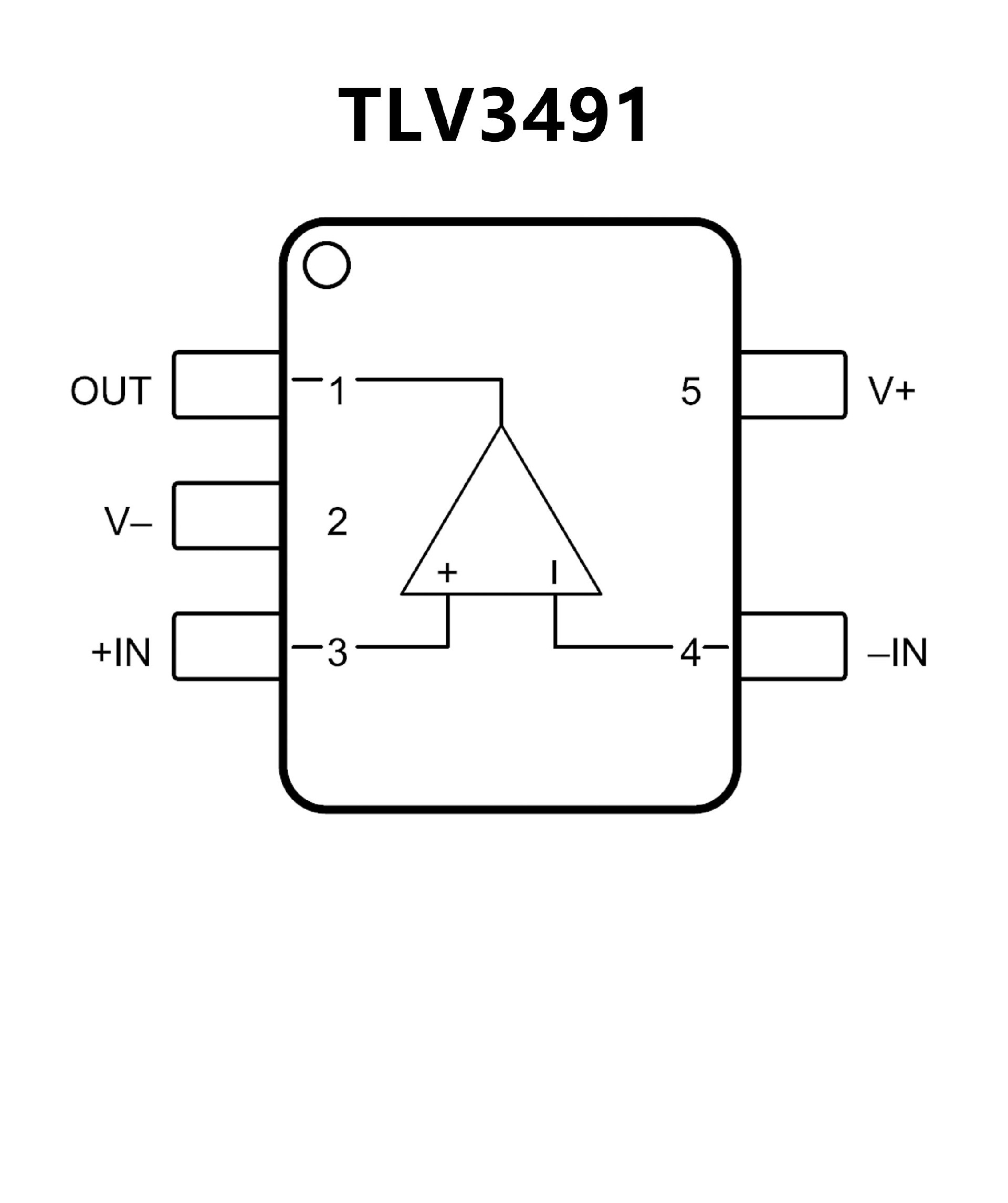

PIN CONFIGUTION
