Micro-Power, CMOS Input, RRIO, 1.4V,Push-Pull Output Comparator,SGM8701YN5G Replace TLV7031.
SGM8701
SGM8701.pdf
SGM8701.pdfFEATURES
? Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
? Rail-to-Rail Input
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

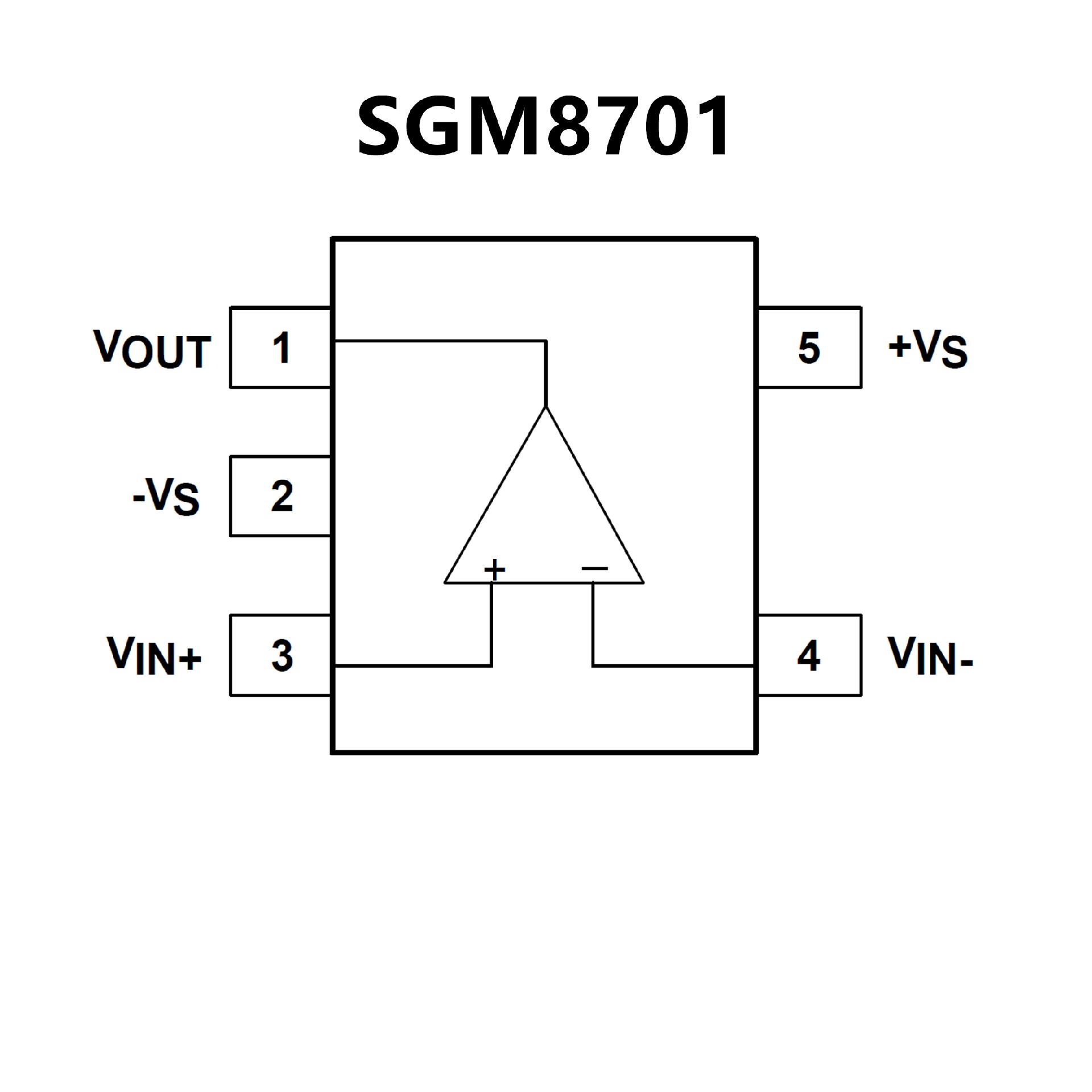

PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-small X2SON, WSON, WQFN packages
? Tiny SOT-23, SC70, VSSOP, and TSSOP
packages
? Wide supply voltage range of 1.6 V to 6.5 V
? Quiescent supply current of 315 nA
? Low propagation delay of 3 μs
? Rail-to-rail common-mode input voltage
? Internal hysteresis
? Push-pull output (TLV703x)
? Open-drain output (TLV704x)
? No phase reversal for overdriven inputs
? –40°C to 125°C Operating temperature

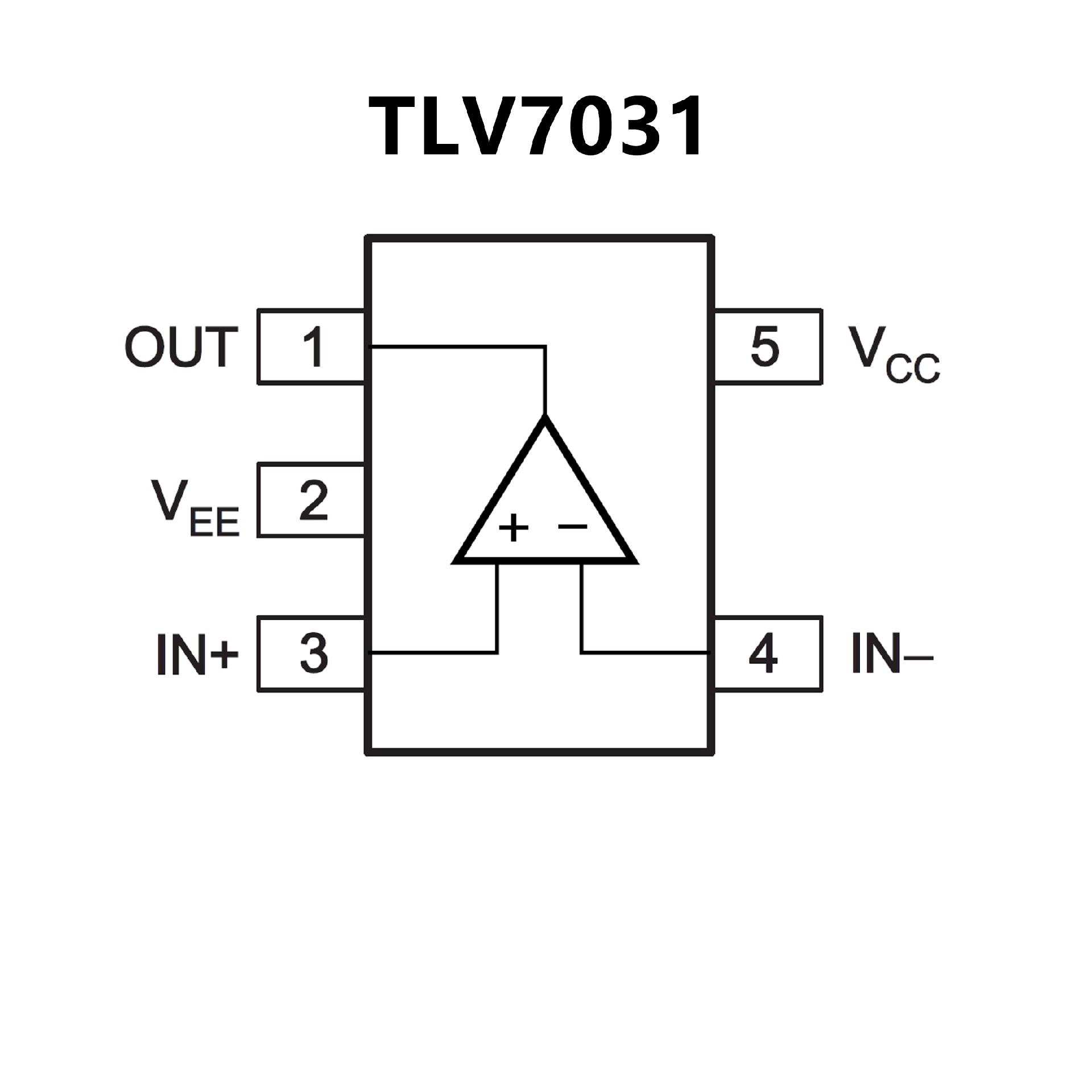

PIN CONFIGUTION
