Micro-Power, RRIO, 1.8V, Push-Pull Output Comparator with Integrated Voltage Reference.
SGM8706YN6G
SGM8706YN6G.pdf
SGM8706YN6G.pdfFEATURES
? Low Power Consumption:
2.2μA (TYP) at VS = 1.8V
? Wide Supply Voltage Range: 1.8V to 5.5V
? Push-Pull Output Current Drive:
18mA (TYP) at VS = 5V
? Rail-to-Rail Input
? Latch Function Included
? Integrated 1.2V Voltage Reference
? -40℃ to +85℃ Operating
Temperature Range
? Available in Green SOT-23-6, SOT-23-8
and SOIC-8 Packages

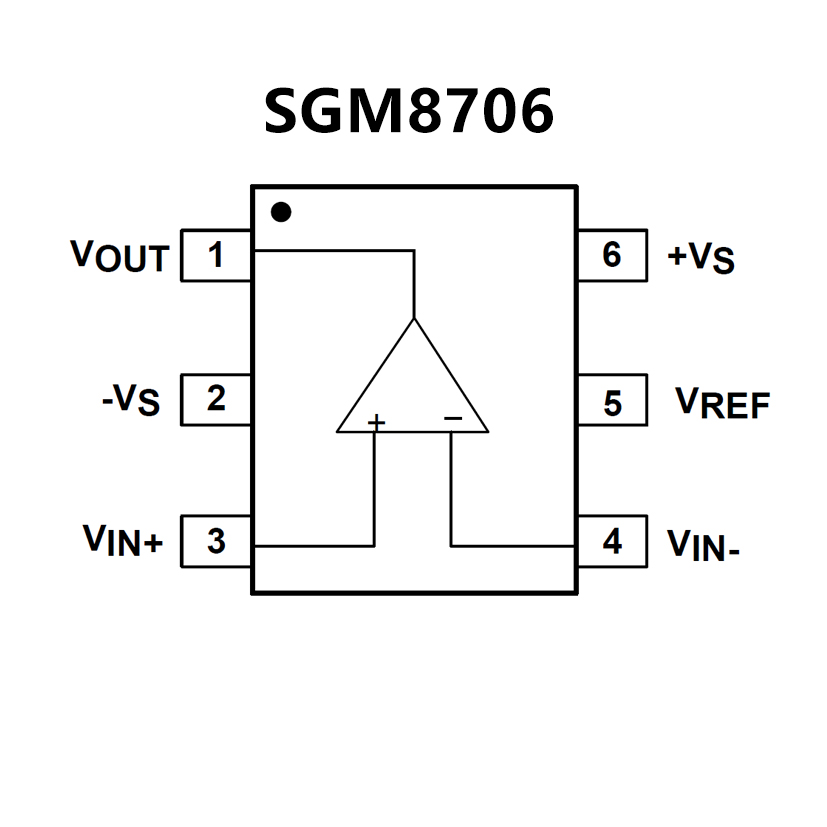

PIN CONFIGUTION
優勢替代
FEATURES
? LOW QUIESCENT CURRENT: 5μA (max)
? INTEGRATED VOLTAGE REFERENCE: 1.242V
? INPUT COMMON-MODE RANGE:
200mV Beyond Rails
? VOLTAGE REFERENCE INITIAL
ACCURACY: 1%
? OPEN-DRAIN LOGIC COMPATIBLE OUTPUT:
TLV3011
? PUSH-PULL OUTPUT: TLV3012
? LOW-SUPPLY VOLTAGE: 1.8V to 5.5V
? FAST RESPONSE TIME: 6μs
Propagation Delay
with 100mV Overdrive
(TLV3011: RPULL-UP = 10kΩ)
? MicroSIZE PACKAGES: SOT23-6 and SC70-6

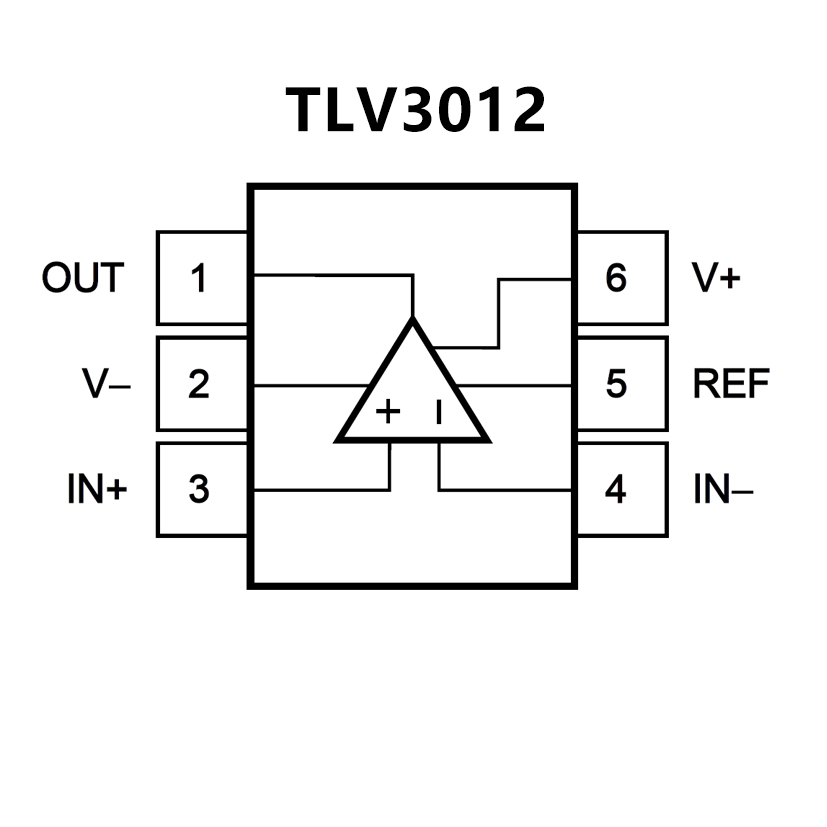

PIN CONFIGUTION
