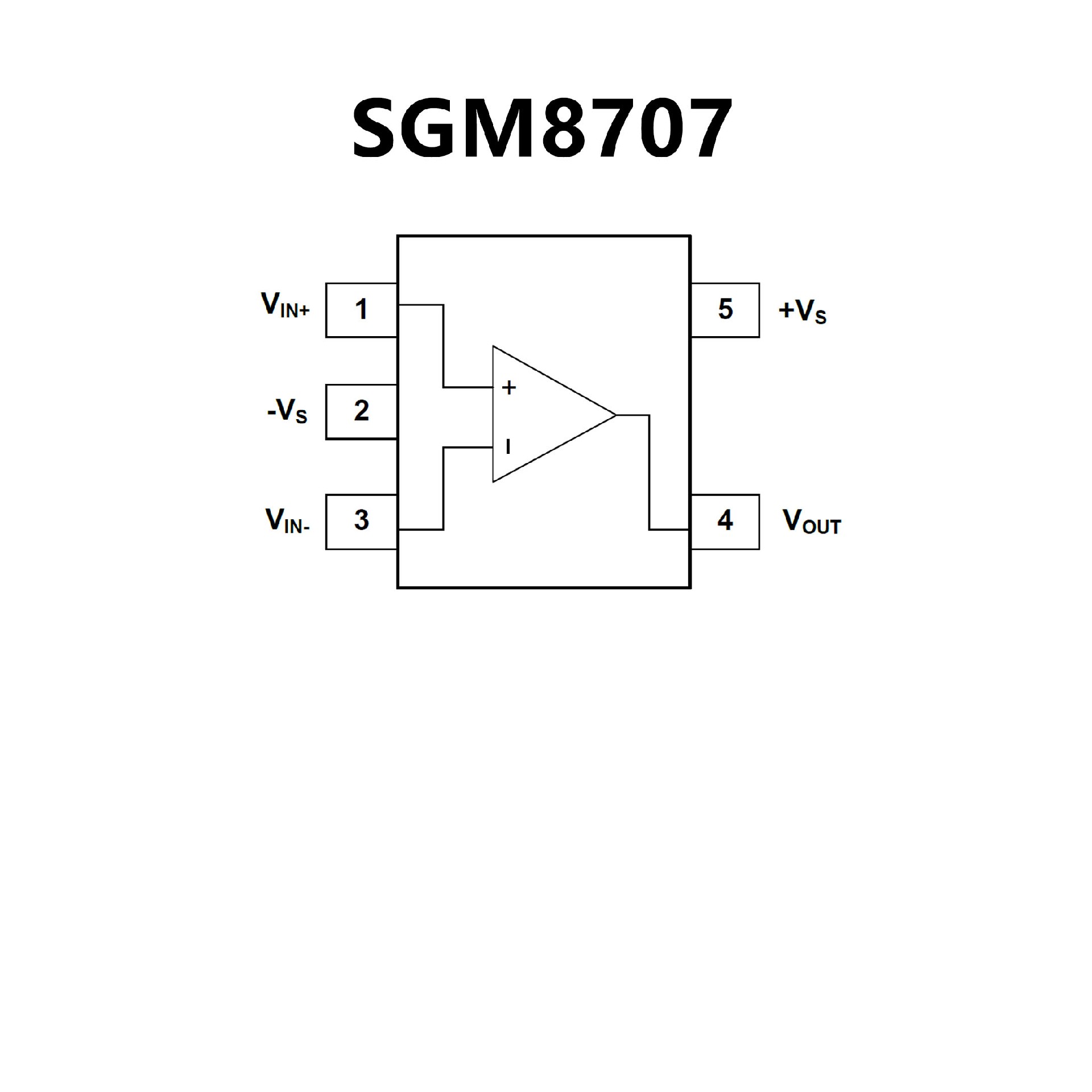

SGM8707.pdf? Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
? Rail-to-Rail Input
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

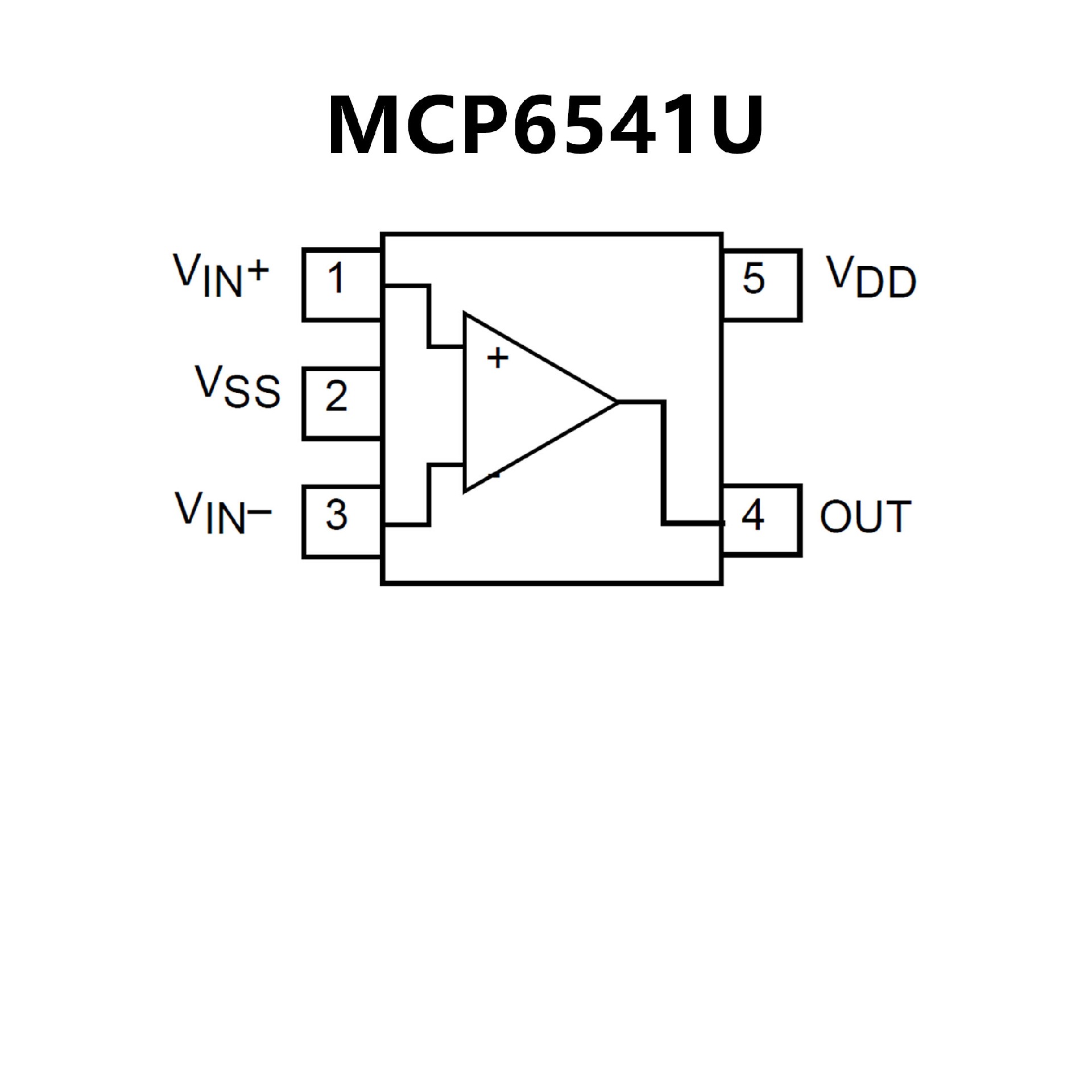

? Low Quiescent Current: 600 nA/Comparator (typ.)
? Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
? CMOS/TTL-Compatible Output
? Propagation Delay: 4 μs
(typical, 100 mV Overdrive)
? Wide Supply Voltage Range: 1.6V to 5.5V
? Available in Single, Dual and Quad
? Single Available in SOT-23-5,
SC-70-5 * Packages
? Chip Select (CS) with MCP6543
? Low Switching Current
? Internal Hysteresis: 3.3 mV (typ.)
? Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
