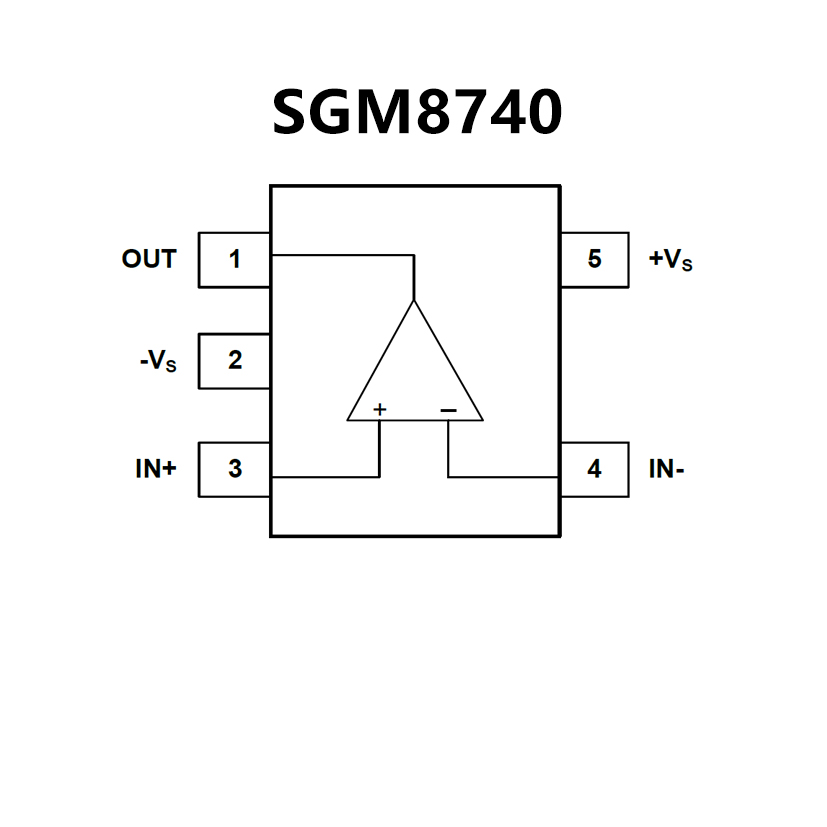

SGM8740YN5G.pdf? Fast, 45ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
155μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.9mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 200mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

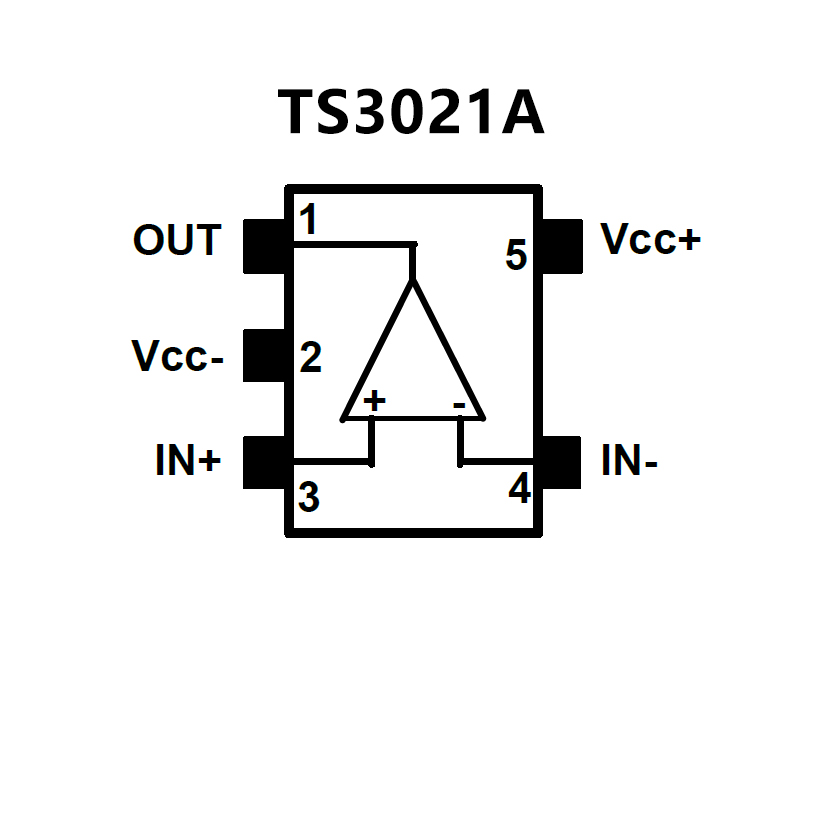

? Propagation delay: 38 ns
? Low current consumption: 73 μA
? Rail-to-rail inputs
? Push-pull outputs
? Supply operation from 1.8 to 5 V
? Wide temperature range: -40 °C to 125 °C
? High ESD tolerance: 5 kV HBM, 300 V MM
? Latch-up immunity: 200 mA
? SMD packages
? Automotive qualification
