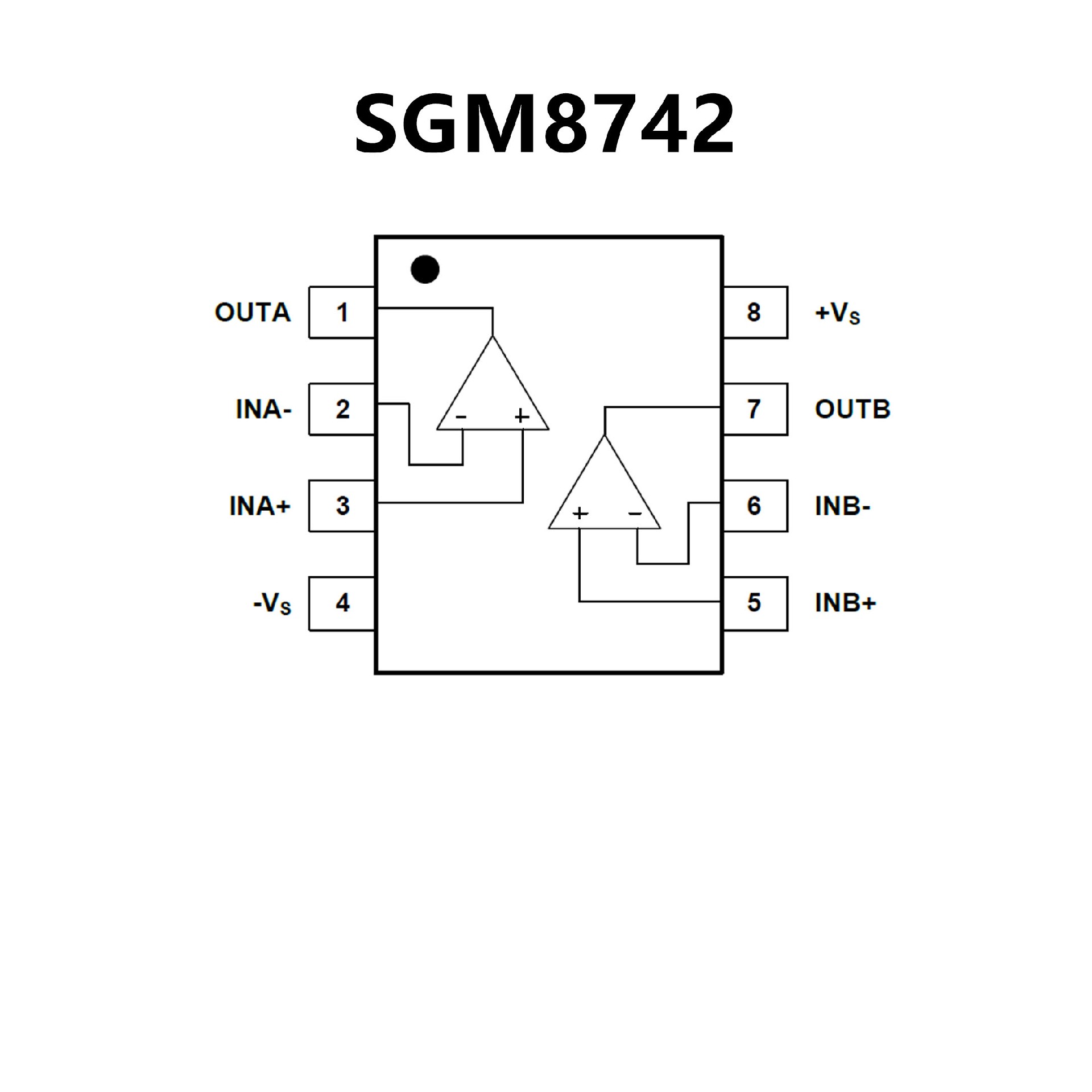

SGM8742.pdf? Fast, 45ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
305μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.9mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 200mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Outputs
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

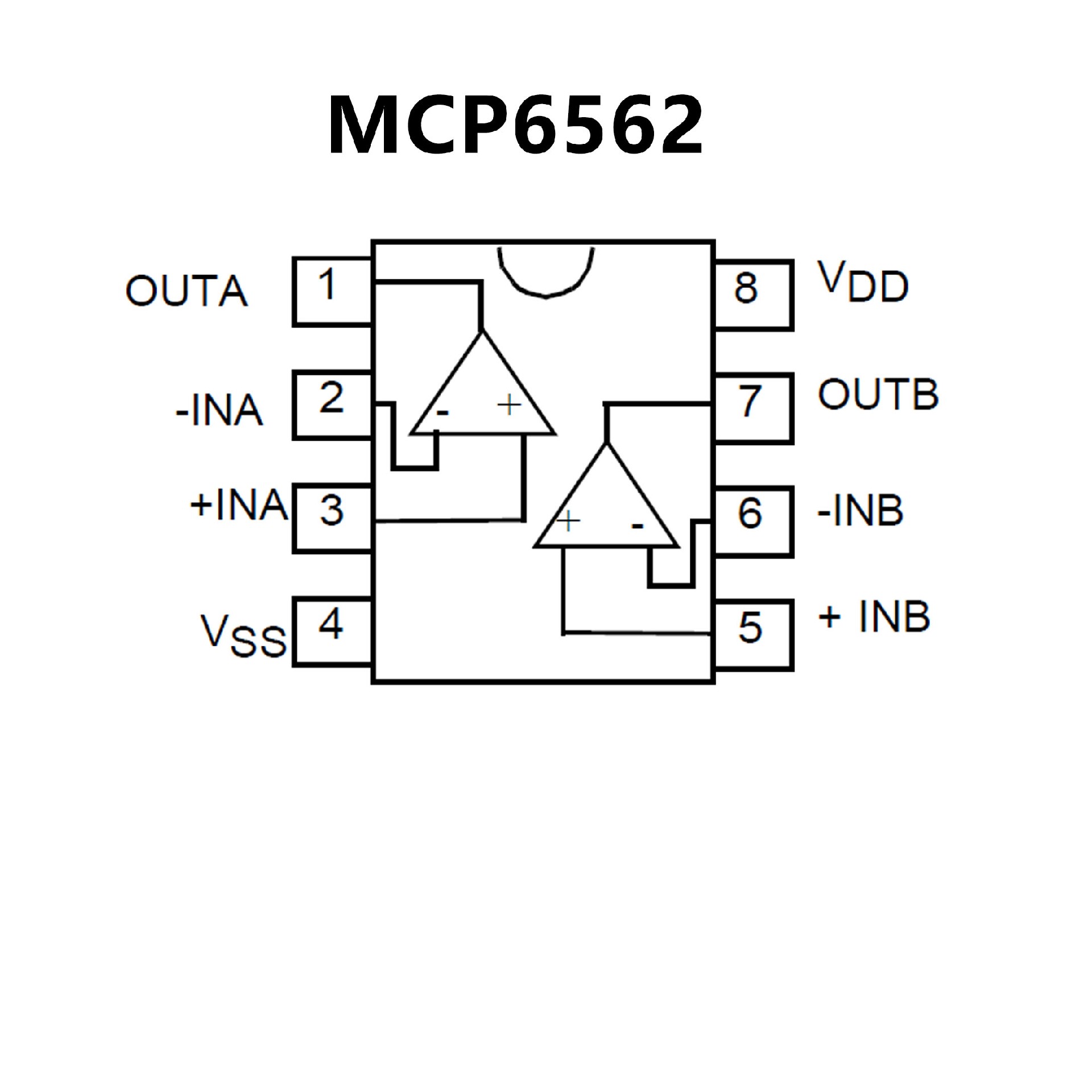

? Propagation Delay at 1.8VDD:
56 ns (typical) High-to-Low
49 ns (typical) Low-to-High
? Low Quiescent Current: 100 μA (typical)
? Input Offset Voltage: ±3 mV (typical)
? Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
? CMOS/TTL-Compatible Output
? Wide Supply Voltage Range: 1.8V to 5.5V
? Available in Single, Dual, and Quad
? Packages: SC70-5, SOT-23-5, SOIC, MSOP,
TSSOP
