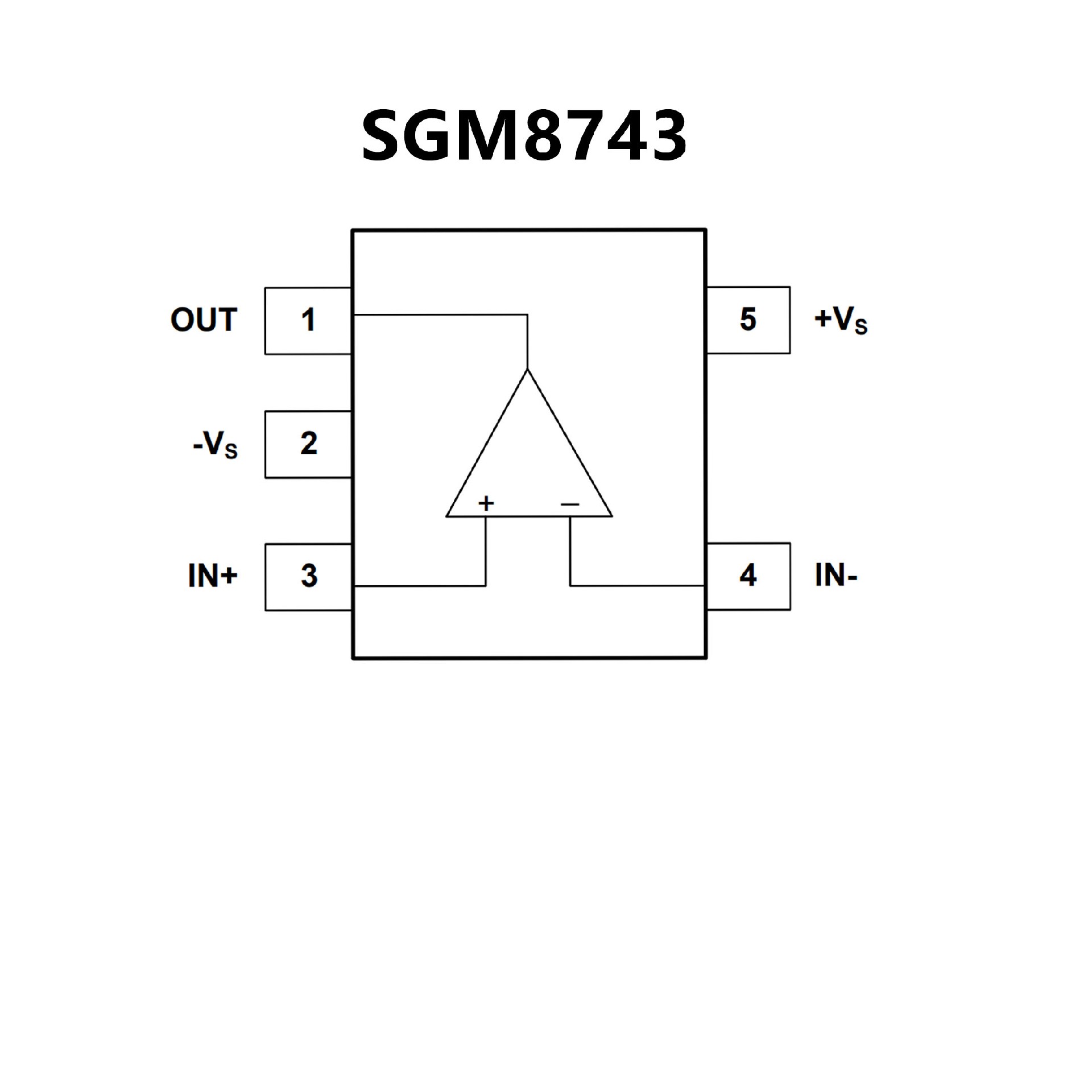

SGM8743.pdf? Fast, 6ns Propagation Delay (100mV Overdrive)
? Low Power Consumption:1.3mA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 195mV from Rails
with4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages

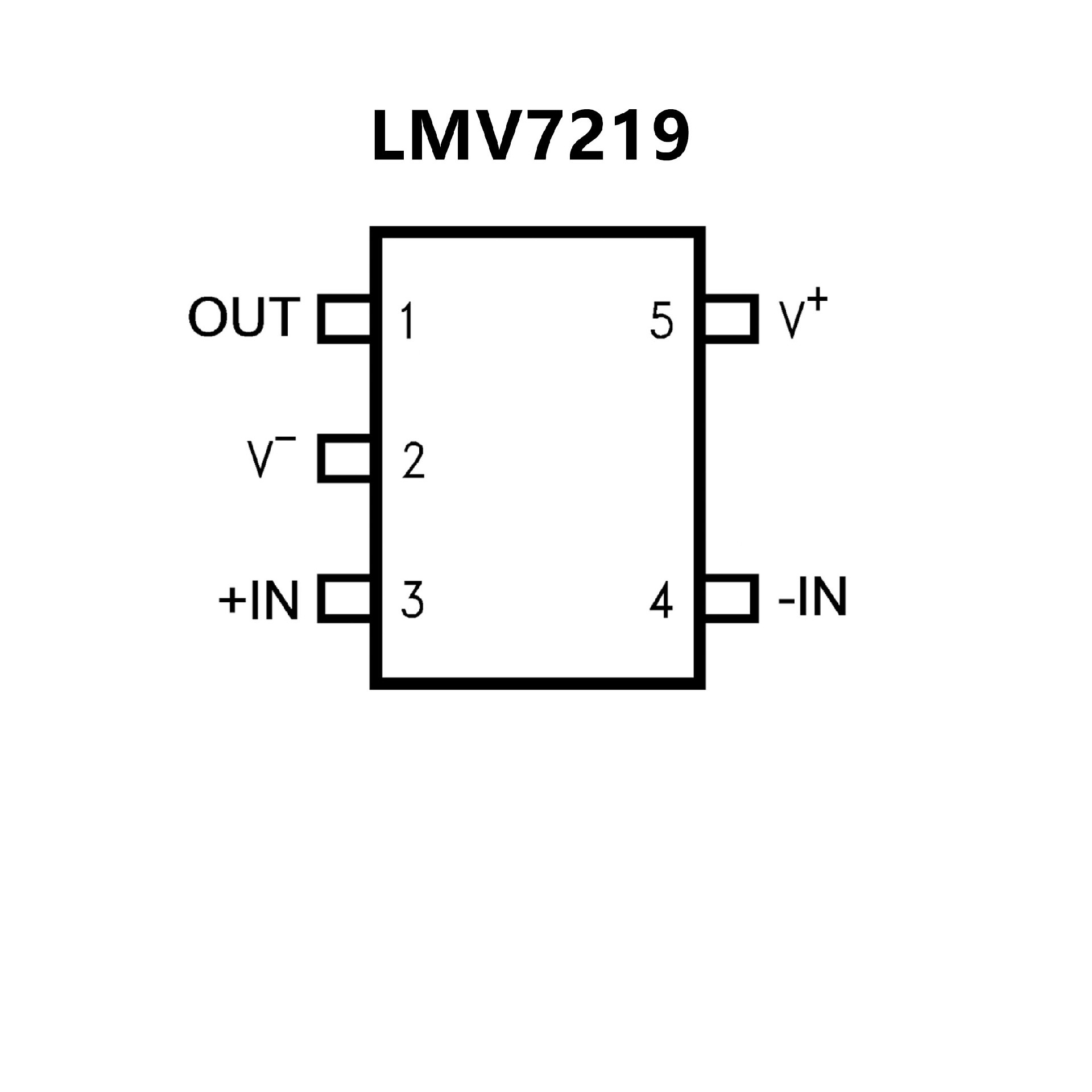

? (VS = 5 V, TA = 25°C, Typical Values UnlessSpecified)
? Propagation Delay 7 ns
? Low Supply Current 1.1 mA
? Input Common Mode Voltage Range
Extends200 mv Below Ground
? Ideal for 2.7-V and 5-V Single Supply Applications
? Internal Hysteresis Ensures Clean Switching
? Fast Rise and Fall Time 1.3 ns
? Available in Space-saving Packages: SC-70 andSOT-23
? Supports 105°C PCB Temperature
